£768.53

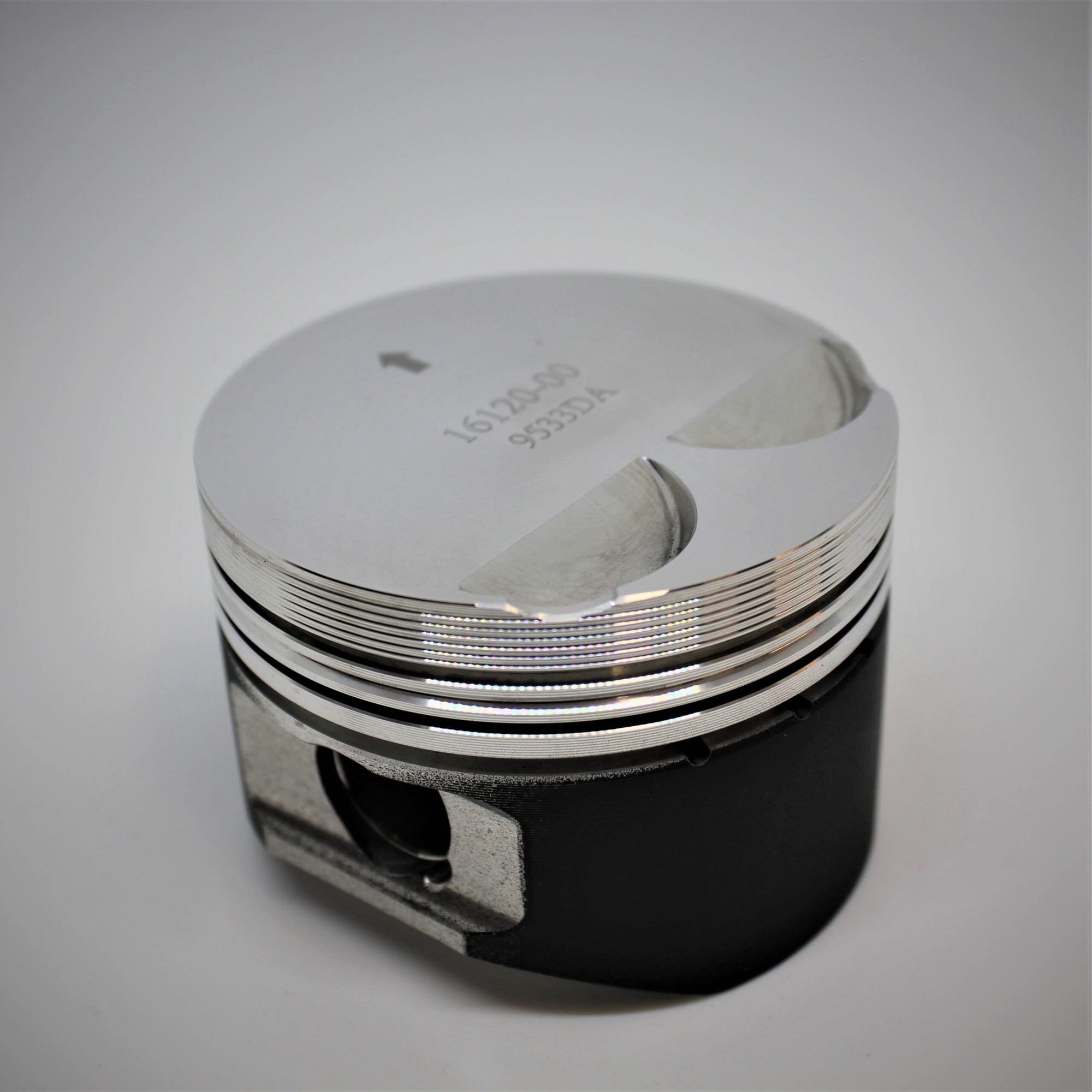

Starlet & Glanza GT Turbo 1.3 16v Forged Piston Kit.
Manufacturer kit reference: K9533
| Engine Code | 4E-FTE |
|---|---|
| YOM From | 1996 |
| YOM To | 1999 |
| Bore Size | 74.5mm – K9533D050 , 74mm – K9533DA , 75mm – K9533D100 |
| Stroke | 77.4mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 8.2:1 |
| Number of Rings | 3 |
| OEM Rod Length | 118mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP142-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0039 |
| Con Rod Length C/C | 118mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9533DA | 73.93mm | 8.27:1 | 1331cc |
| K9533D050 | 74.43mm | 8.37:1 | 1349cc |
| K9533D100 | 74.93mm | 8.46:1 | 1367cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
