£849.43

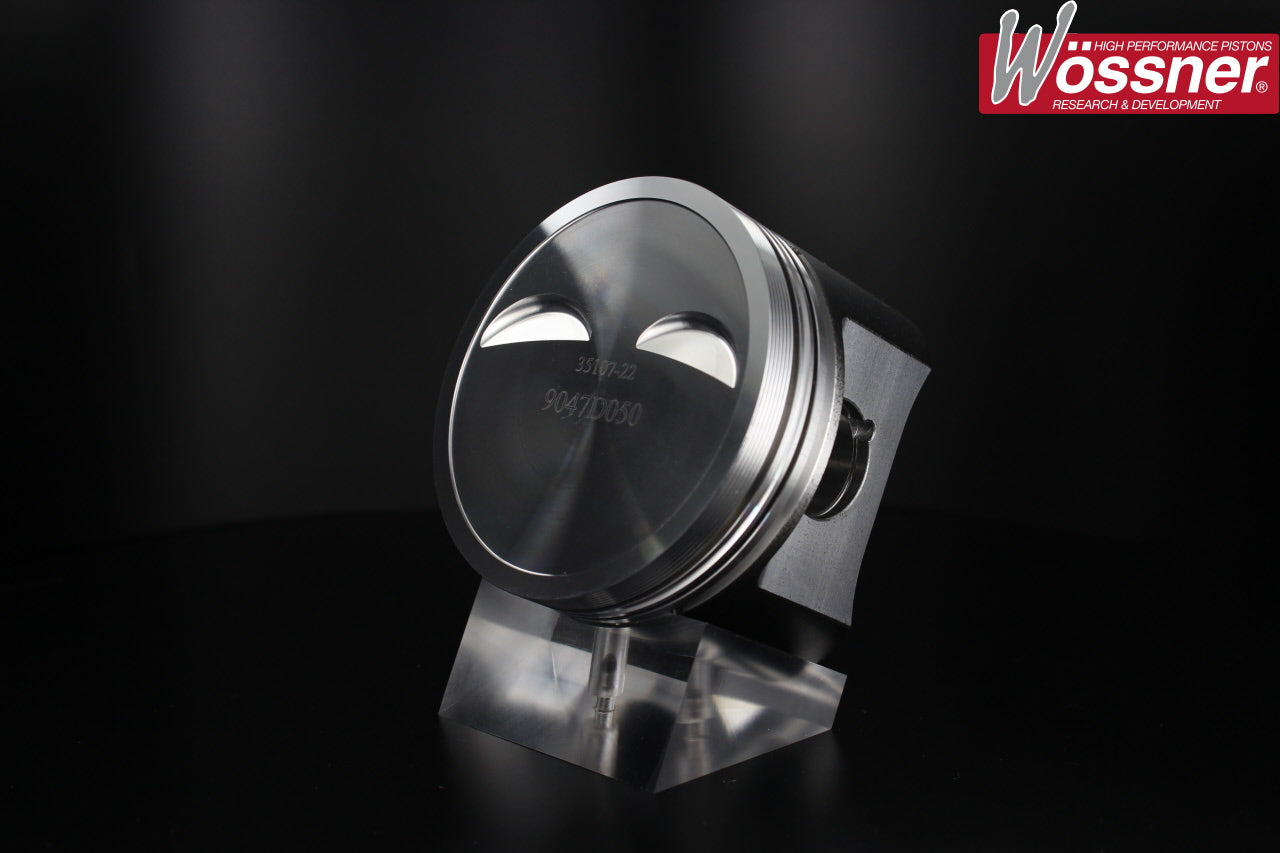

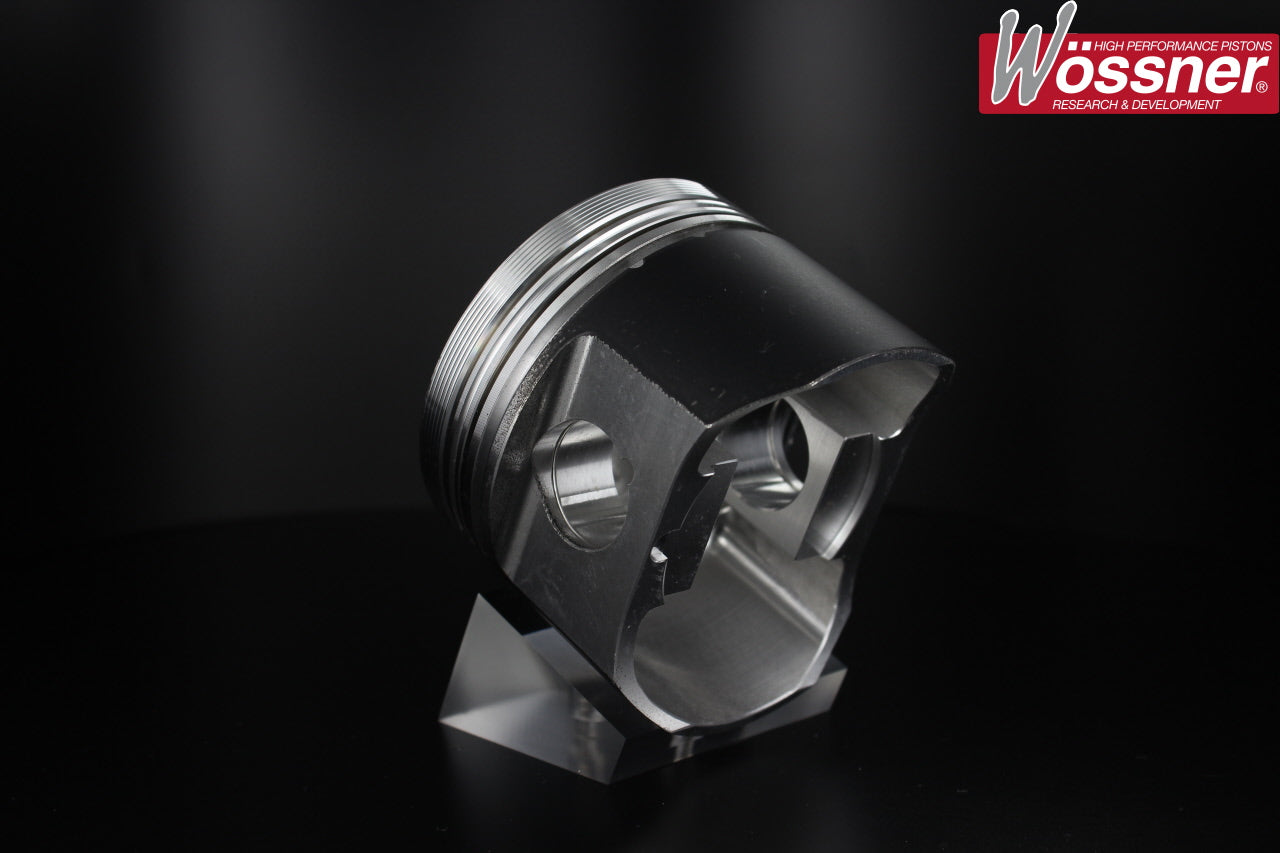

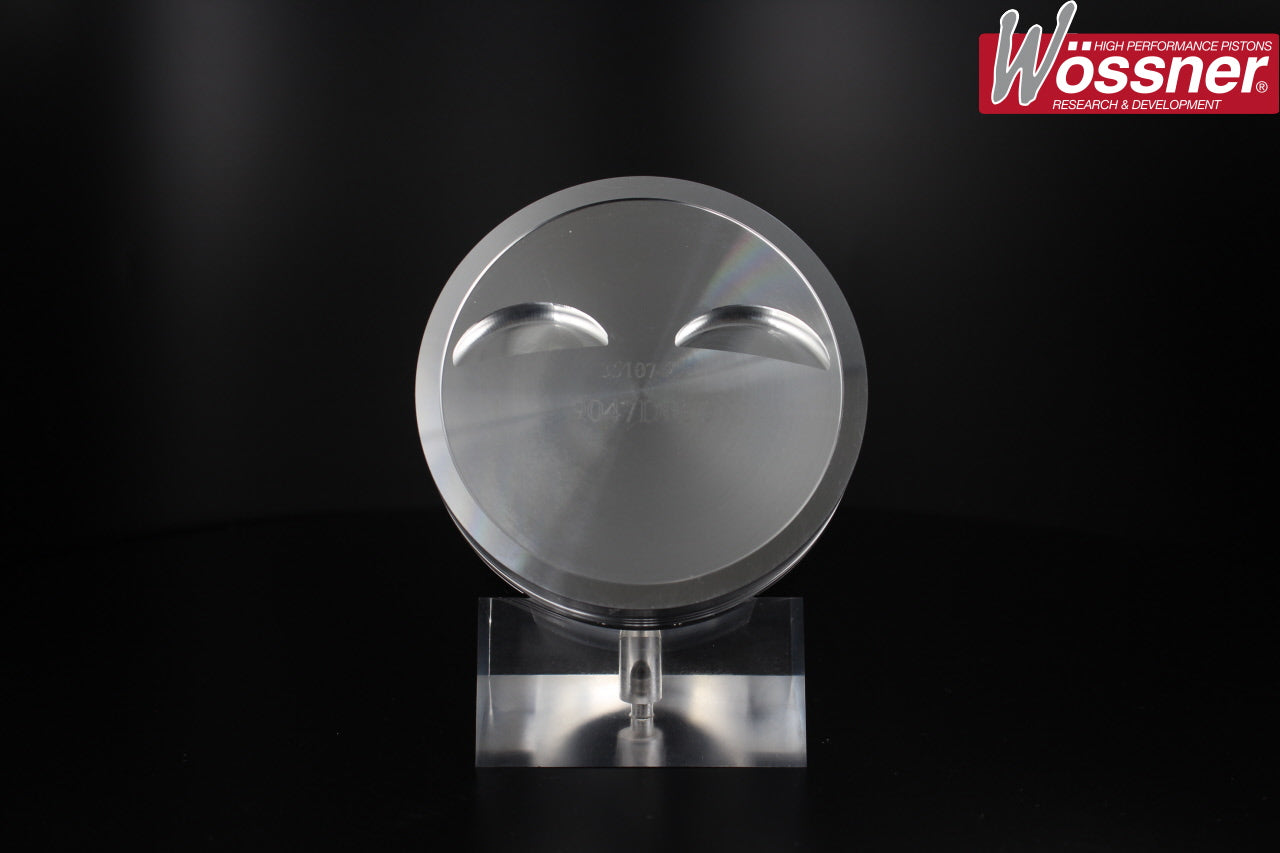

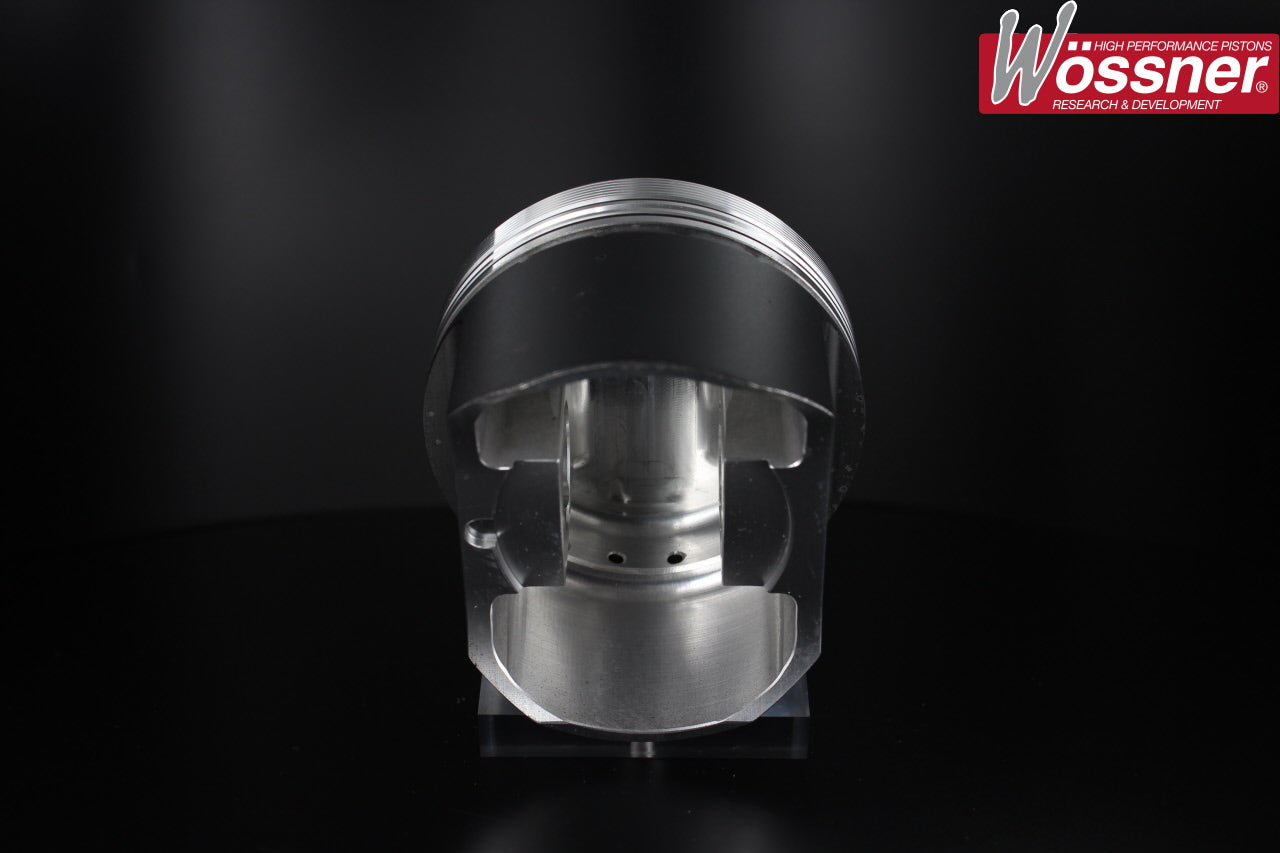

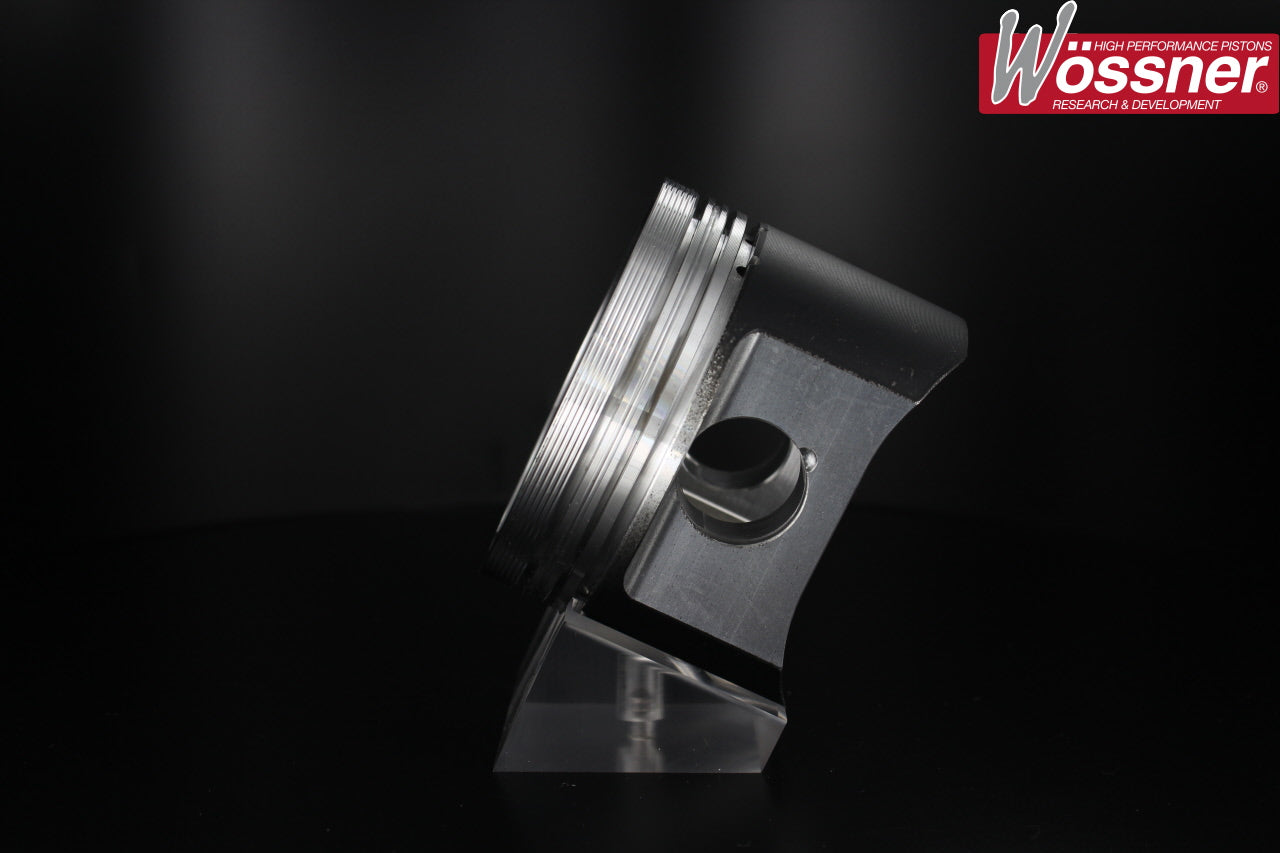

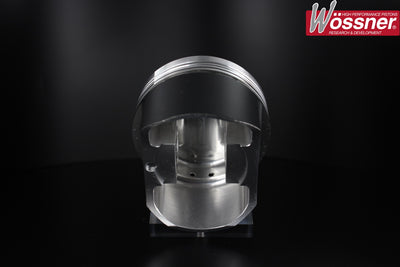

Uno 1.4 8v Turbo Forged Piston Kit.
Manufacturer kit reference: K9047
| Engine Code | 146 A |
|---|---|
| YOM From | 1990 |
| YOM To | 1992 |
| Bore Size | 81.5mm , 81mm |
| Stroke | 67.4mm |
| Compression Height | 33.3mm |
| OEM Comp Ratio | 7.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 128.52mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9047D050 | 80.93mm | 7.88:1 | 1388cc |
| K9047D100 | 81.43mm | 7.97:1 | 1406cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
