£1,274.15

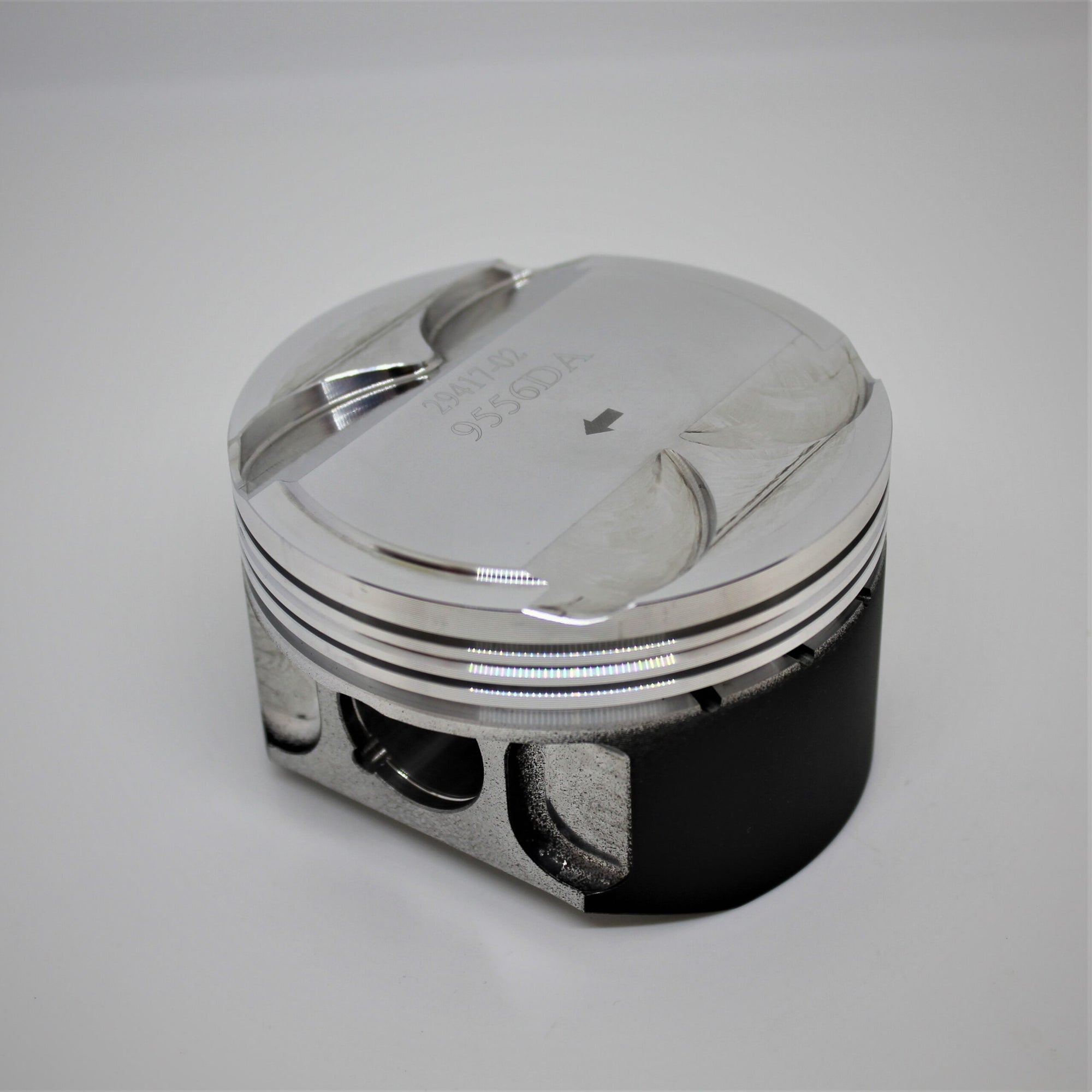

Vectra VXR & Saab 2.8 V6 Turbo Forged piston kit.
Manufacturer kit reference: K9556
| Engine Code | A28 , Z28 |
|---|---|
| Bore Size | 89mm – K9556DA |
| Stroke | 74.8mm |
| Compression Height | 31.9mm |
| OEM Comp Ratio | 9.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 155.8mm |
| Clip Part Number | CW24 |
| Pin Size | 24mm |
| Pin Part Number | WP022-SP |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9556DA | 88.93mm | 9.5:1 | 2797cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
