Wossner VW Golf GTI Mk2 1.8 16v Turbo (KR) Low Comp Forged Piston & Rifle Drilled I-Beam Steel Con Rod Package (K9201/G0326)

Wossner Pistons

Wossner VW Golf GTI Mk2 1.8 16v Turbo (KR) Low Comp Forged Piston & Rifle Drilled I-Beam Steel Con Rod Package (K9201/G0326)

£1,644.40

VW Golf GTI Mk2 1.8 16v Turbo (KR) Low Comp Forged Piston & Rifle Drilled I-Beam Steel Con Rod Package.

Manufacturer kit reference: K9201/G0326

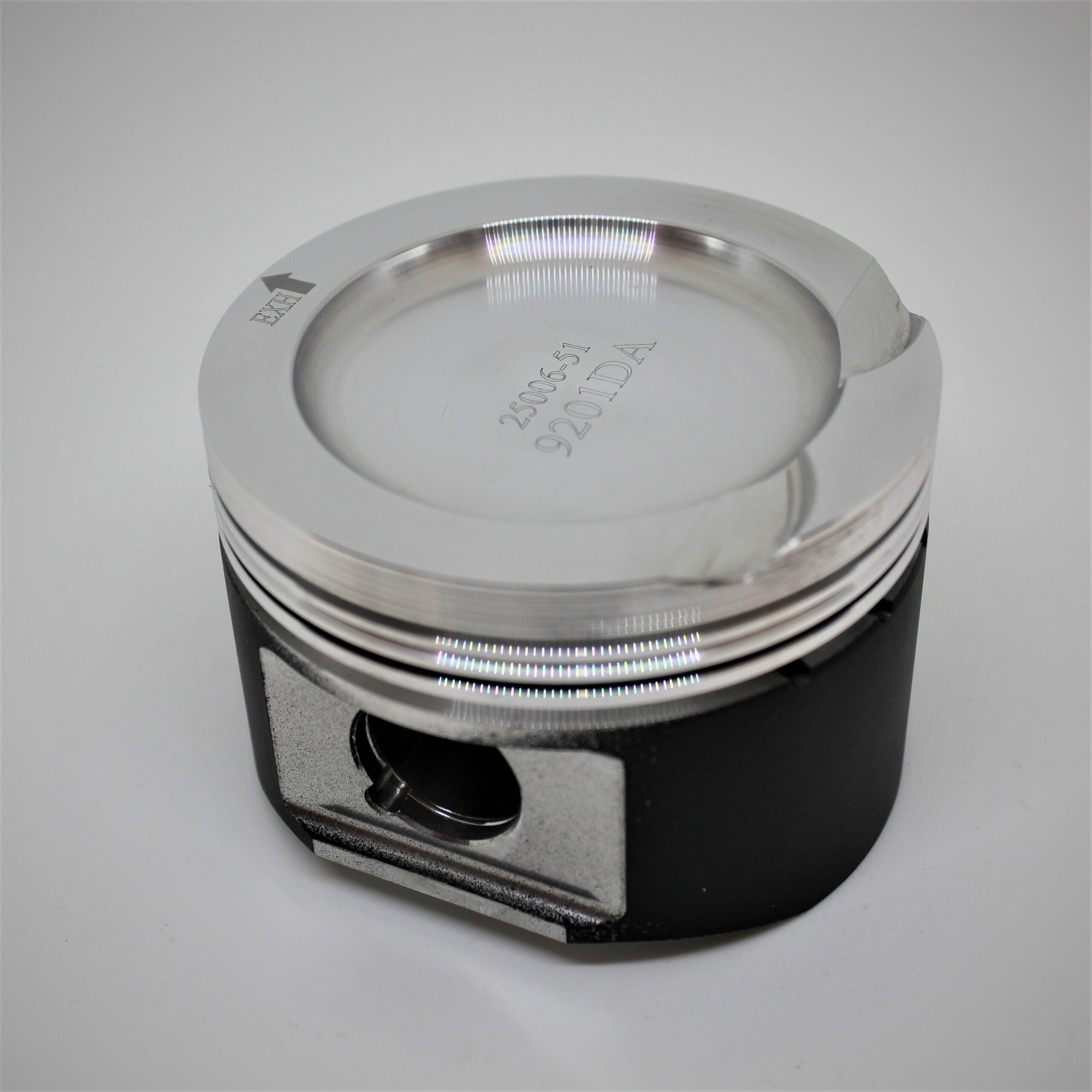

VW Golf GTI Mk2 1.8 16v Turbo (KR) Low Comp Forged Piston Kit

Engine Code	KR , PL
YOM From	1989
YOM To	1992
Bore Size	81.5mm , 81mm , 82.5mm , 82mm , 83mm
Stroke	86.4mm
Compression Height	33.4mm
OEM Comp Ratio	10:01
Number of Rings	3
OEM Rod Length	144mm
Clip Part Number	CW20
Pin Size	20mm
Pin Part Number	WP061
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0049
Con Rod Length C/C	144mm

VAG 1.8 Turbo 20v (rifle drilled) I-Beam Connecting rods

Engine Code	APX / APY / BAM
Con Rod Length C/C	144mm
Con Rod Big End Dia	50.60mm
Con Rod Big End Width	25mm
Con Rod Small End Dia	20mm
Con Rod Small End Width	25mm
Con Rod Bolt	3/8"

Kit contents

VW Golf GTI Mk2 1.8 16v Turbo (KR) Low Comp Forged Piston Kit
VAG 1.8 Turbo 20v (rifle drilled) I-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9201D050	81.43mm	8.09:1	1802cc
K9201D150	82.43mm	8.26:1	1847cc
K9201D100	81.93mm	8.17:1	1824cc
K9201D200	82.93mm	8.35:1	1869cc
K9201DA	80.93mm	8:1	1780cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
