£849.43

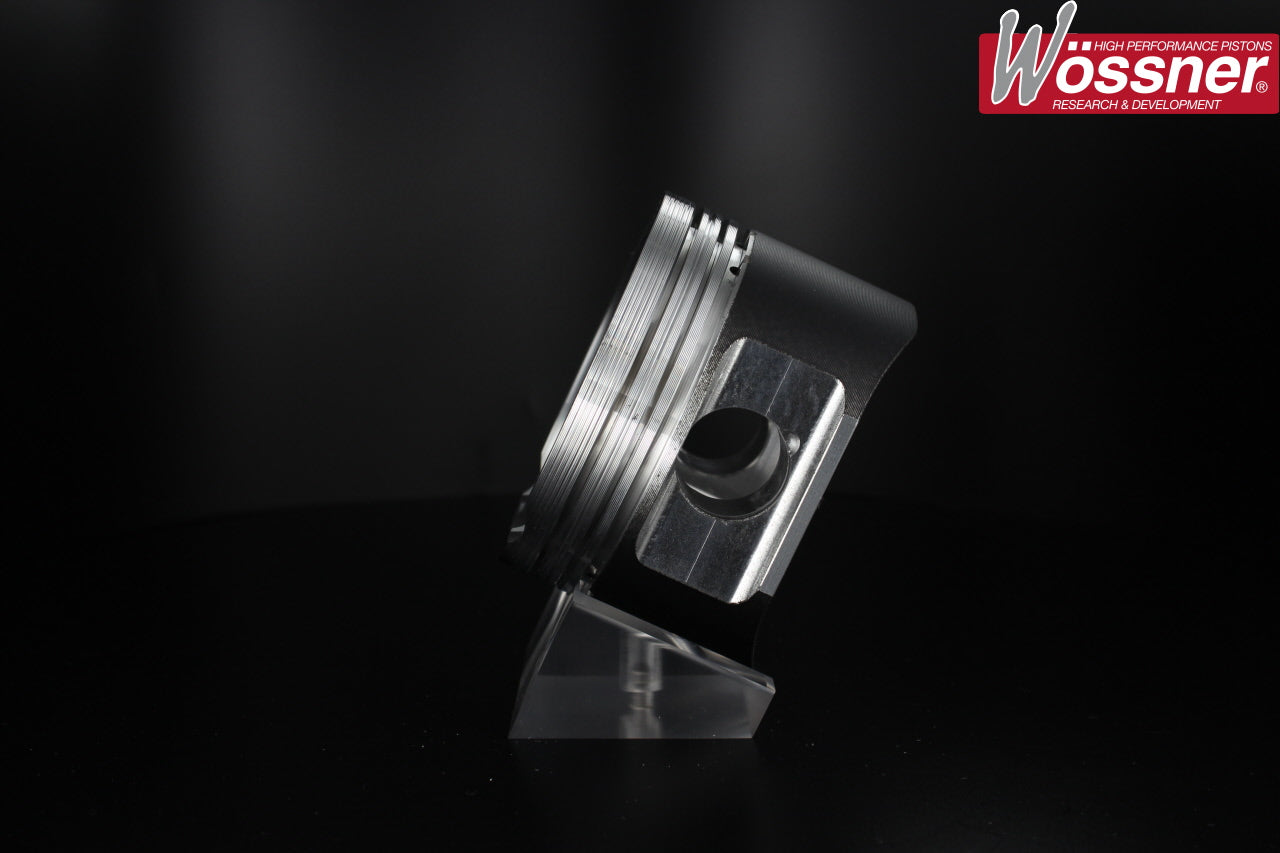

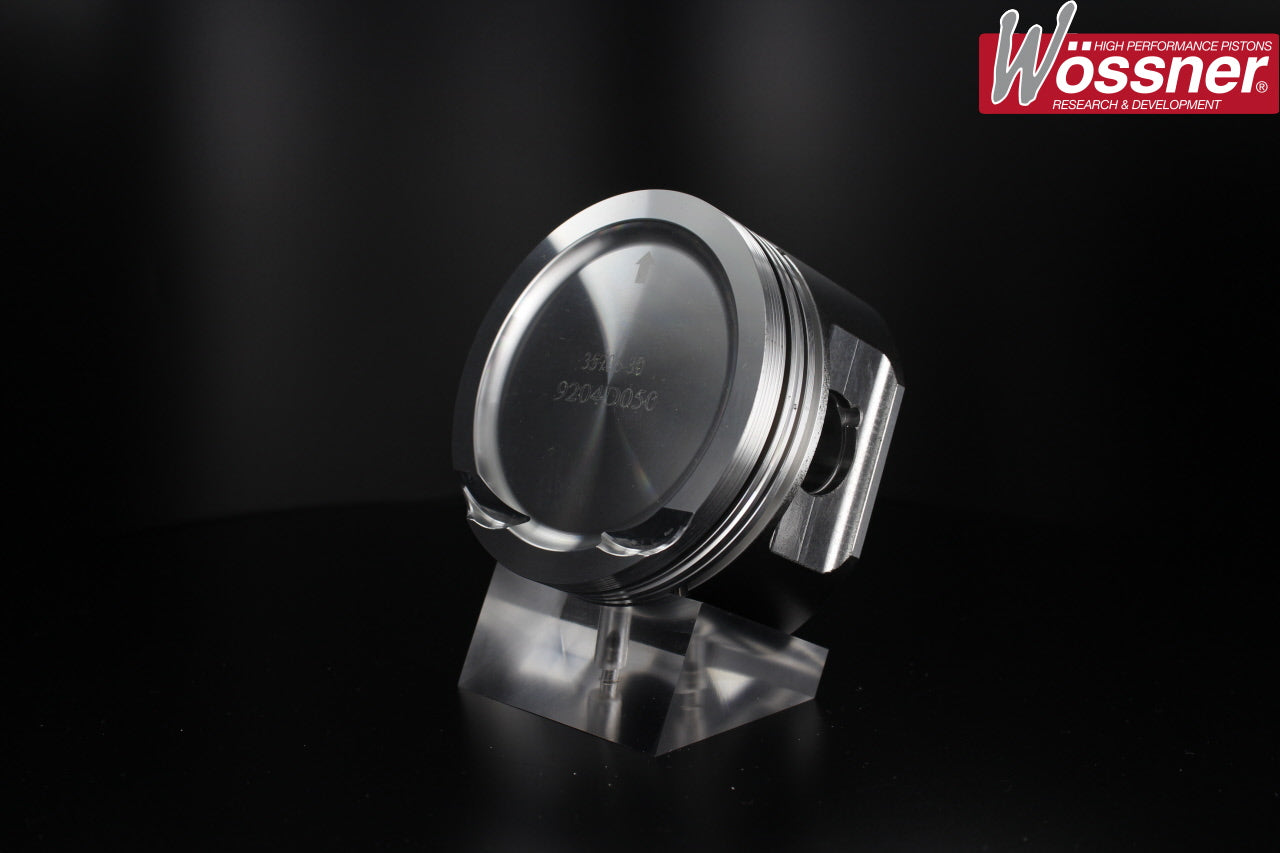

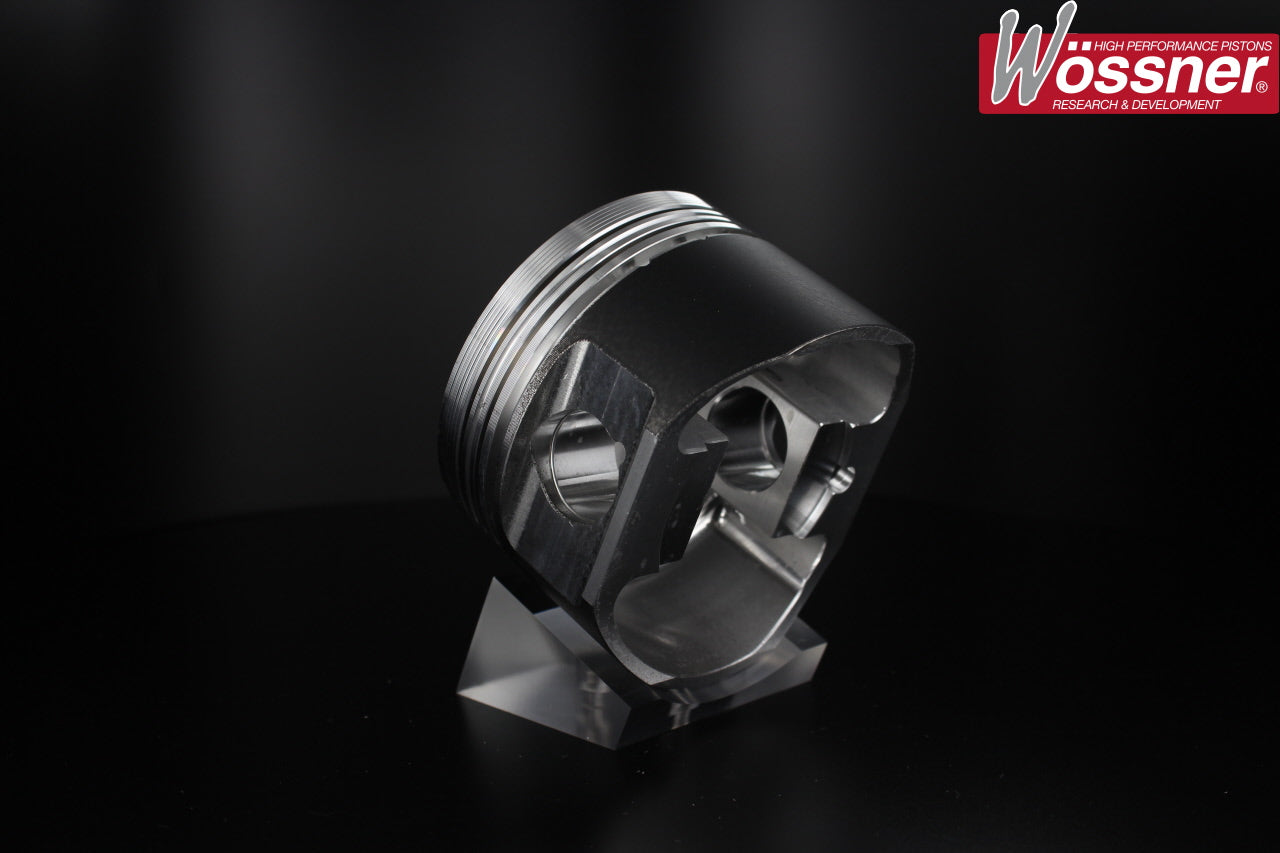

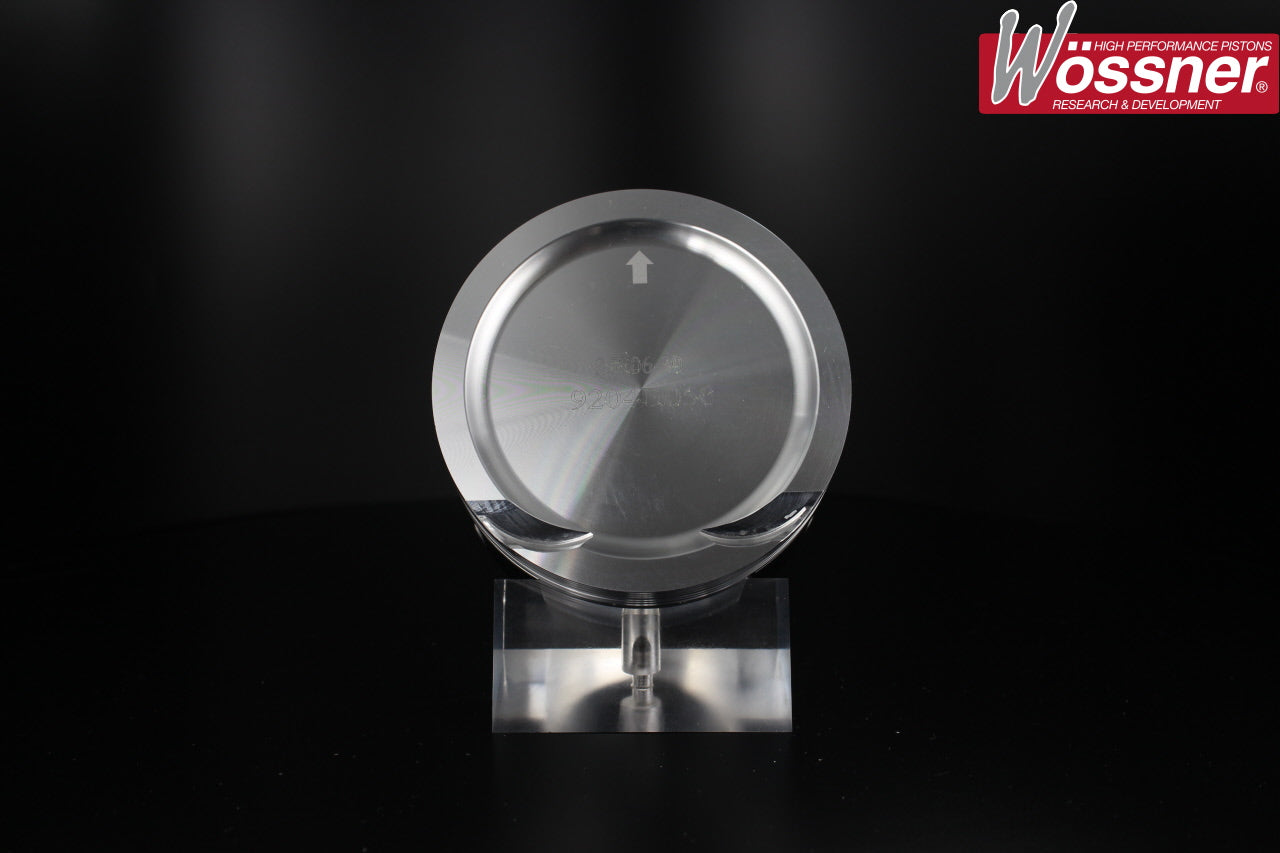

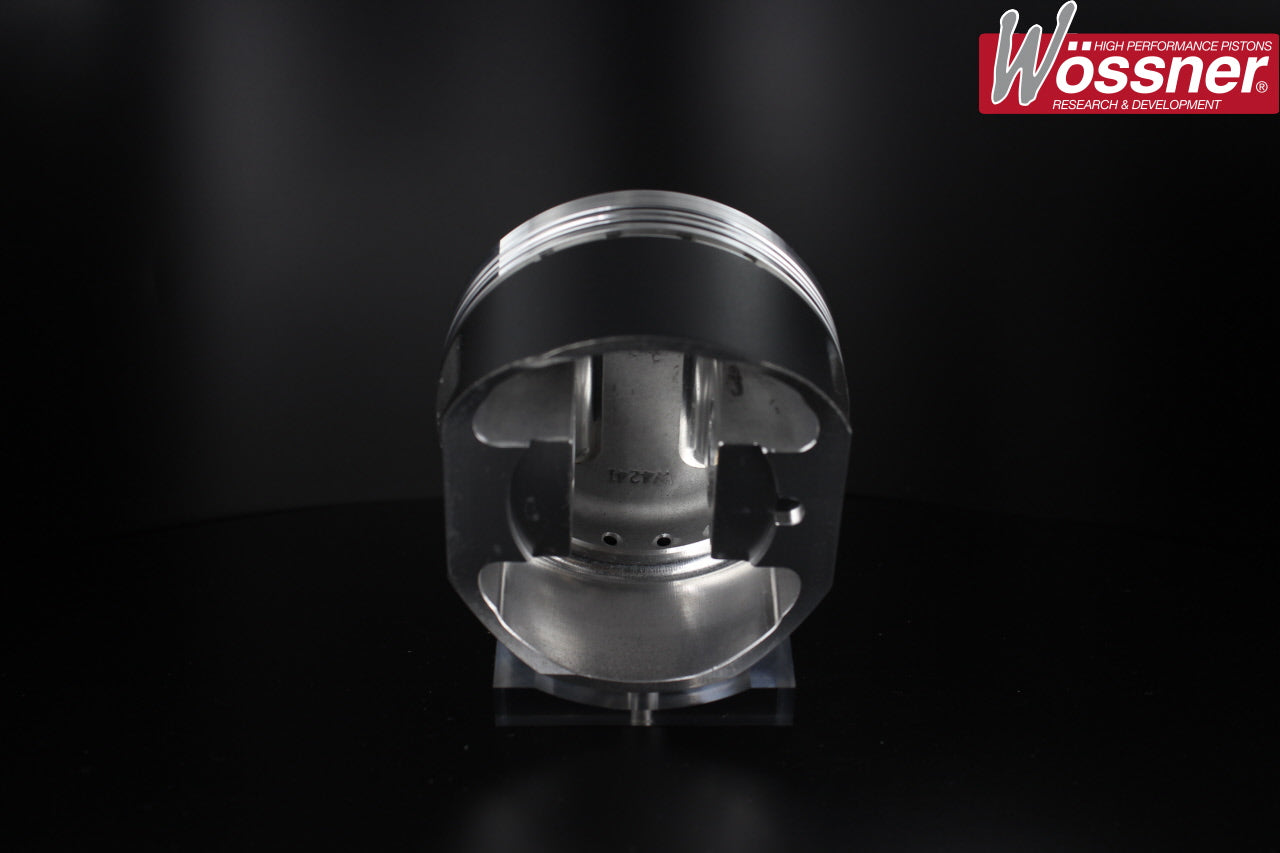

VW Golf GTI Mk3 2.0 16v (ABF) Fast Road Forged Piston Kit.
Manufacturer kit reference: K9204
| Engine Code | ABF |
|---|---|
| YOM From | 1996 |
| YOM To | 1999 |
| Bore Size | 82.5mm , 83.5mm , 83mm |
| Stroke | 92.8mm |
| Compression Height | 31.6mm |
| OEM Comp Ratio | 10.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 159mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP092 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9204D050 | 82.93mm | 9.1:1 | 2008cc |
| K9204D100 | 83.43mm | 9.2:1 | 2032cc |
| K9204DA | 82.43mm | 9:1 | 1983cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
