£808.99

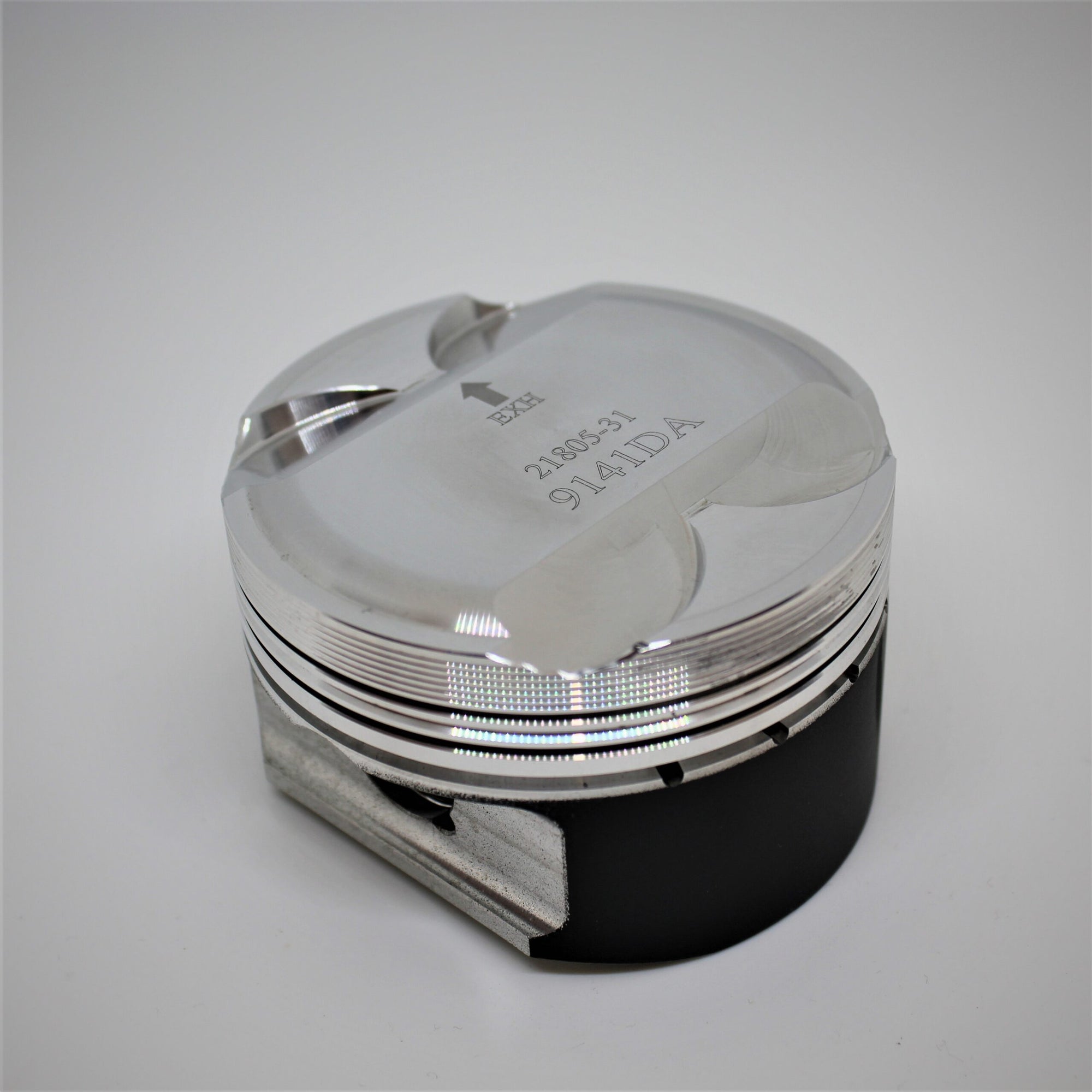

X16XE & C16XE 1.6 16v High Comp Forged Piston Kit.
Manufacturer kit reference: K9141
| Engine Code | X16XEL / C16XE |
|---|---|
| YOM From | 1994 |
| YOM To | 2000 |
| Bore Size | 79.5mm , 79mm , 80mm |
| Stroke | 81.5mm |
| Compression Height | 28.2mm |
| OEM Comp Ratio | 10.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 129.75mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP053 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0065 |
| Con Rod Length C/C | 129.75mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9141D100 | 79.93mm | 11.76:1 | 1638cc |
| K9141D050 | 79.43mm | 11.63:1 | 1617cc |
| K9141DA | 78.93mm | 11.5:1 | 1597cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
