£849.43

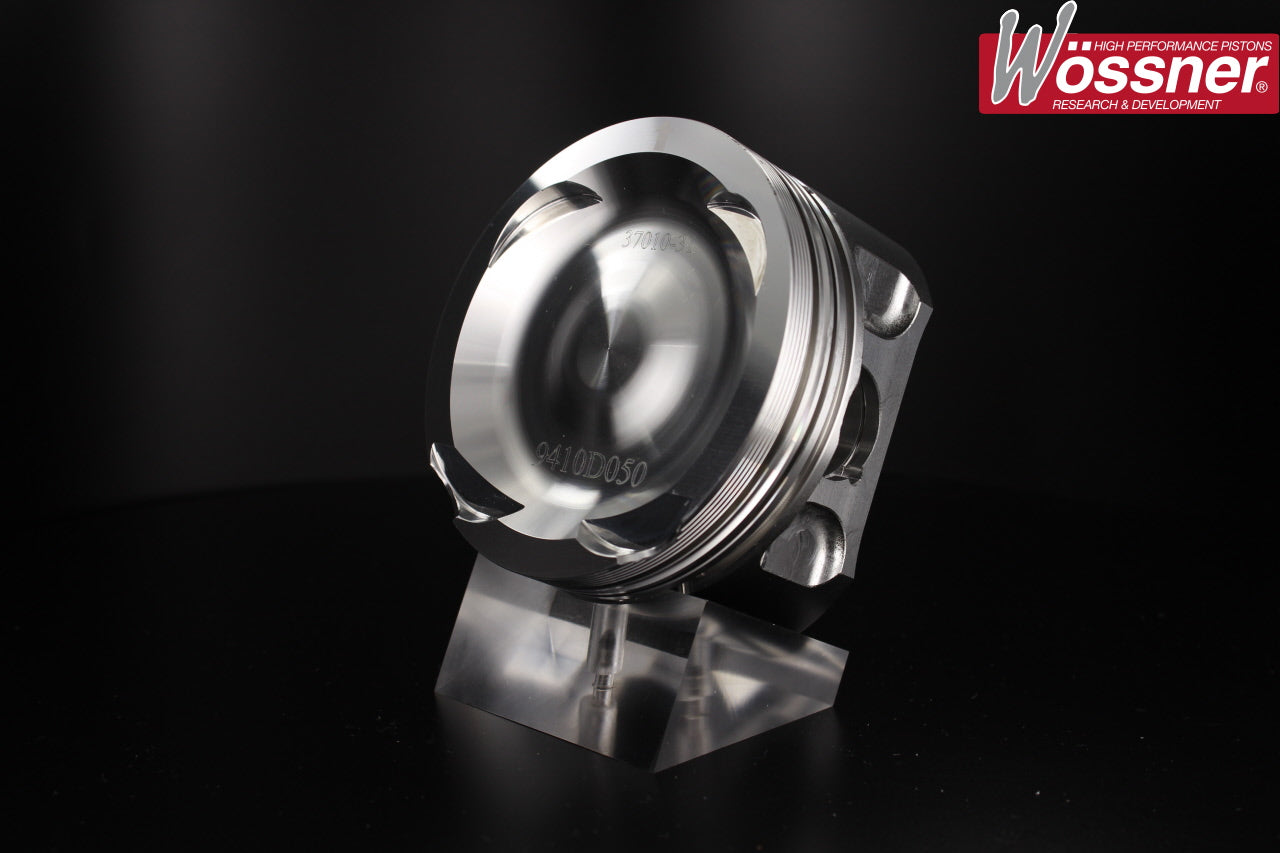

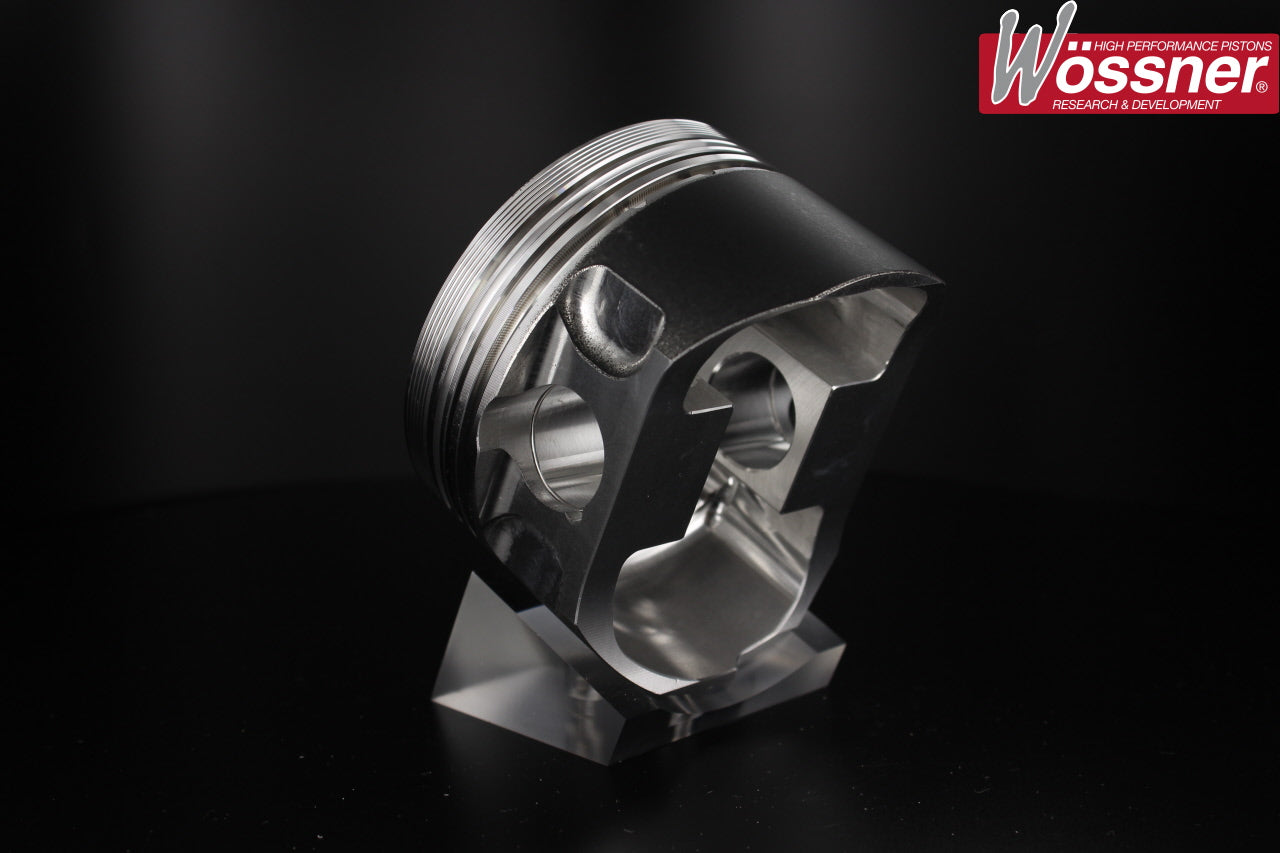

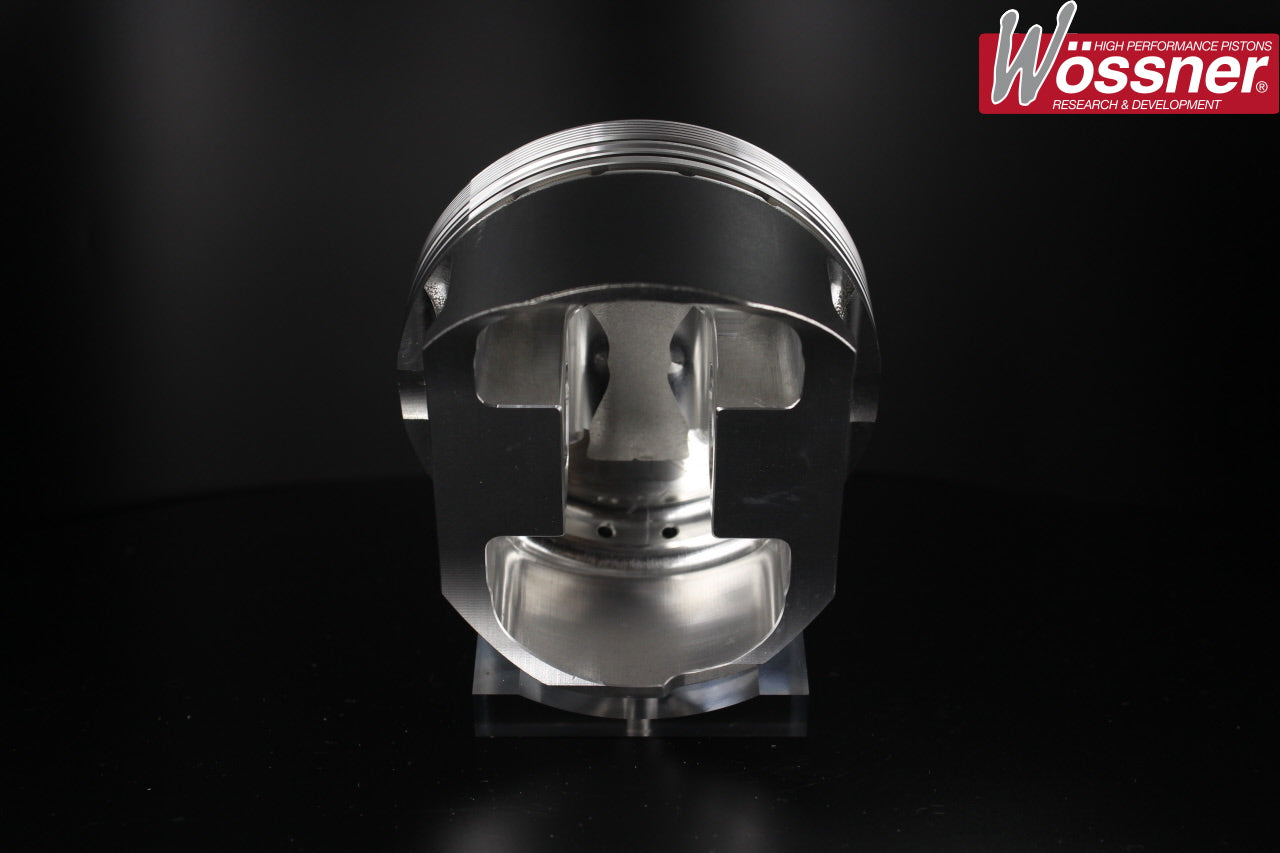

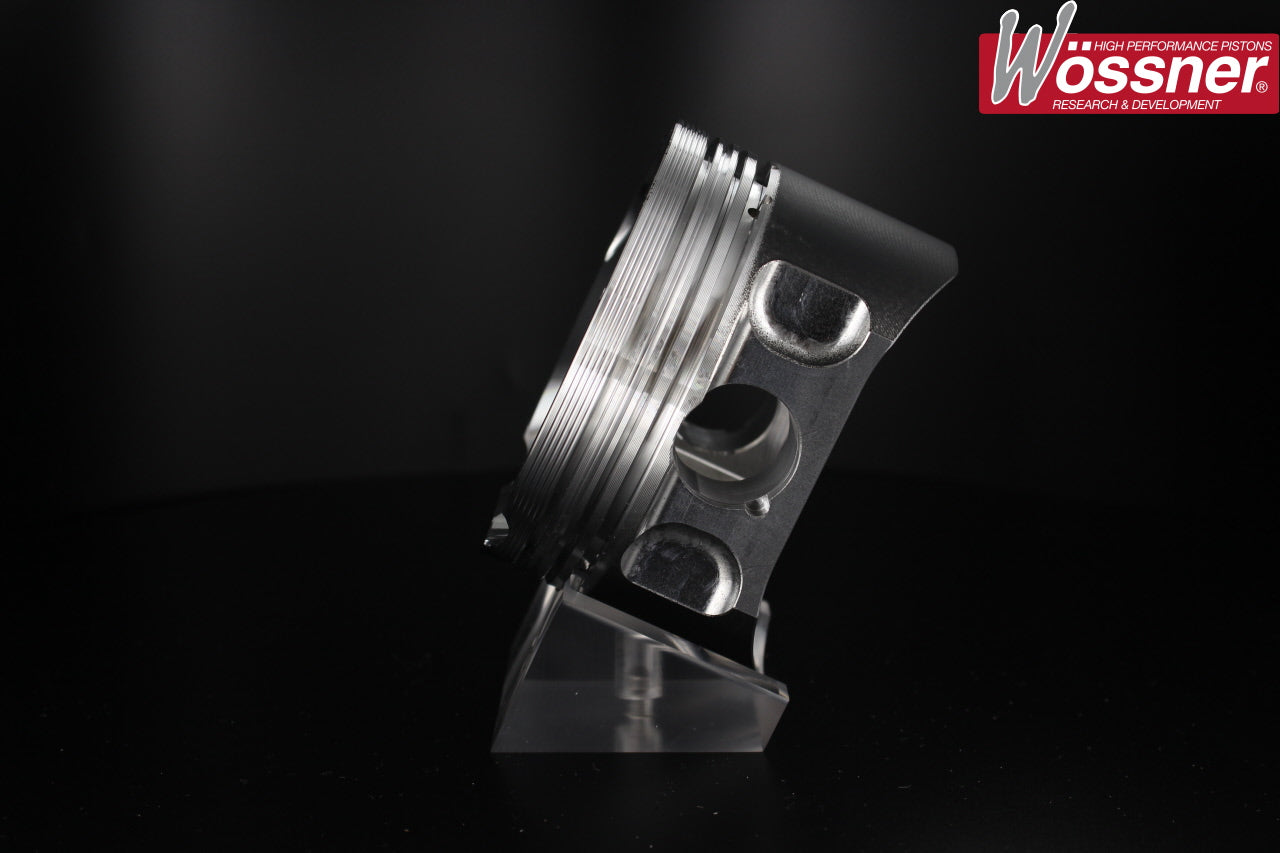

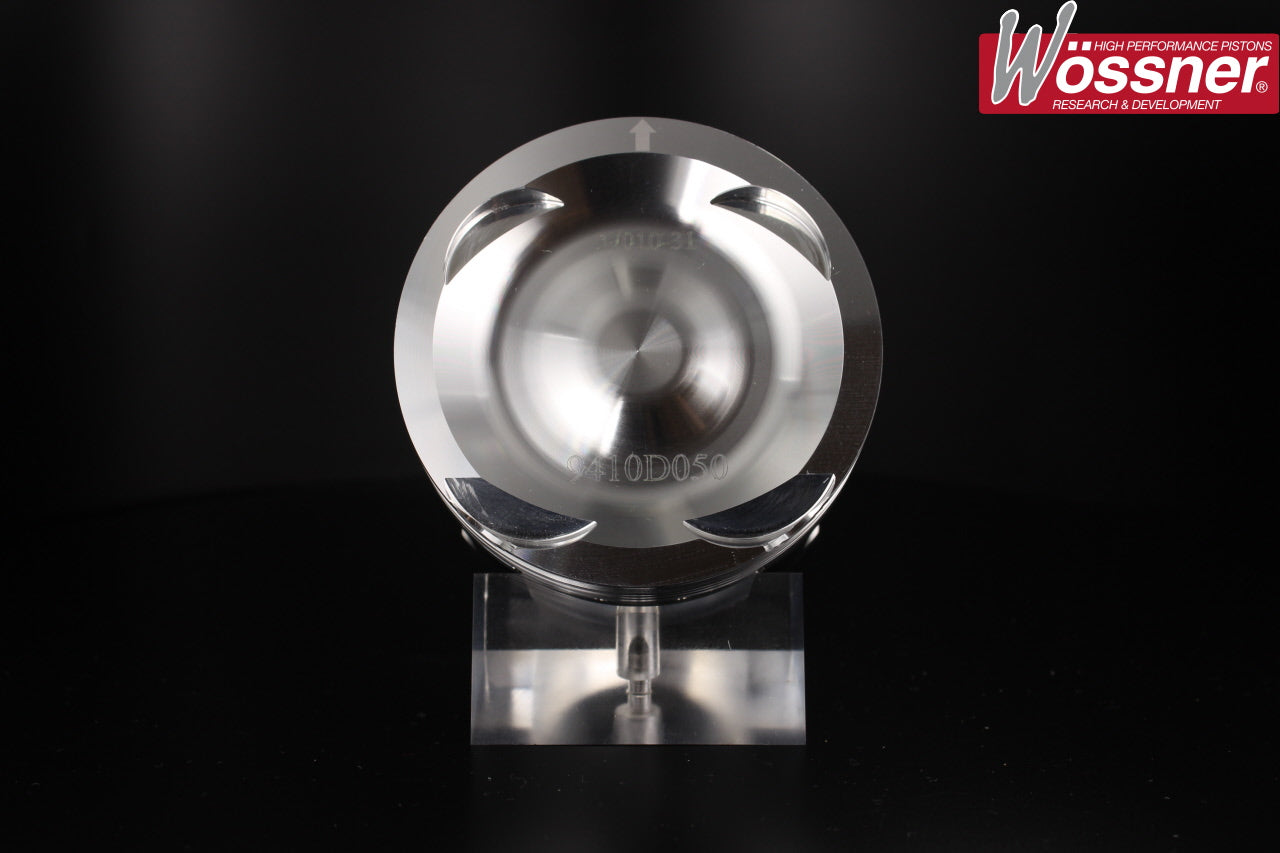

Z20LET & Z20LEH 2.0 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9410
| Engine Code | Z20LET / Z20LEH / Y20LET / Z20LER |
|---|---|
| YOM From | 2000 |
| YOM To | 2005 |
| Bore Size | 86.5mm – K9410D050 , 86mm – K9410DA , 87mm – K9410D100 |
| Stroke | 86mm |
| Compression Height | 30.4mm |
| OEM Comp Ratio | 8.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 143.1mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP092 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0033 |
| Con Rod Length C/C | 143.1mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9410D050 | 86.43mm | 8.89:1 | 2021cc |
| K9410D100 | 86.93mm | 8.98:1 | 2044cc |
| K9410DA | 85.93mm | 8.8:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
