£849.43

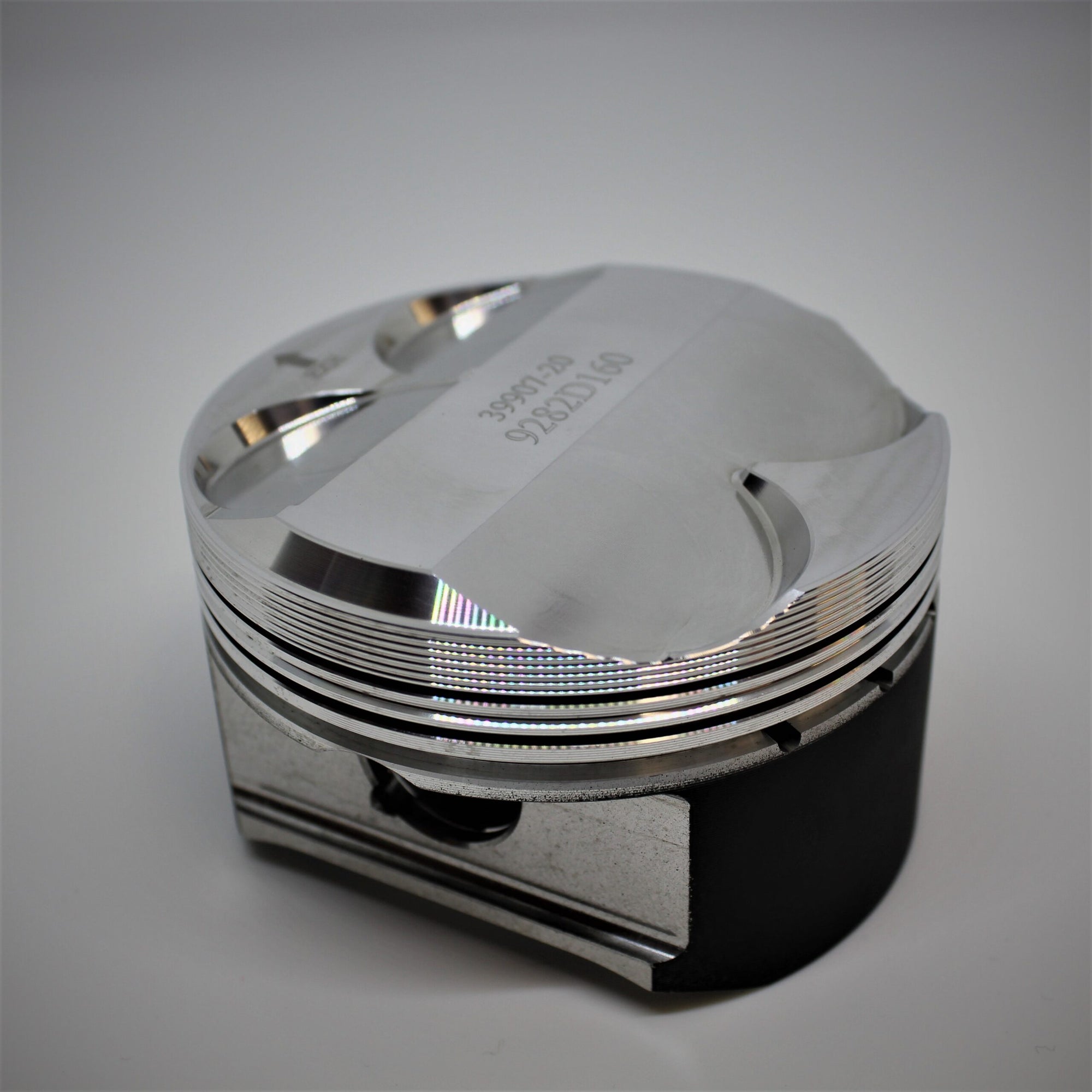

Wössner Duratec 2.3 16v High Comp Forged Piston Kit.
Kit reference: K9282
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | SEBA |
|---|---|
| Model years from | 2007 |
| Model years to | 2015 |
| Bore Size | 87.5mm – K9282D010 , 88.5mm – K9282D110 , 88mm – K9282D060 , 89mm – K9282D160 |
| Stroke | 94mm |
| Compression Height | 28.65mm |
| Number of Rings | 3 |
| Piston pin diameter | 21mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9282D010 | 87.43mm | 14.1:1 |
| K9282D060 | 87.93mm | 14.25:1 |
| K9282D110 | 88.43mm | 14.4:1 |
| K9282D160 | 88.93mm | 14.55:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
