£849.43

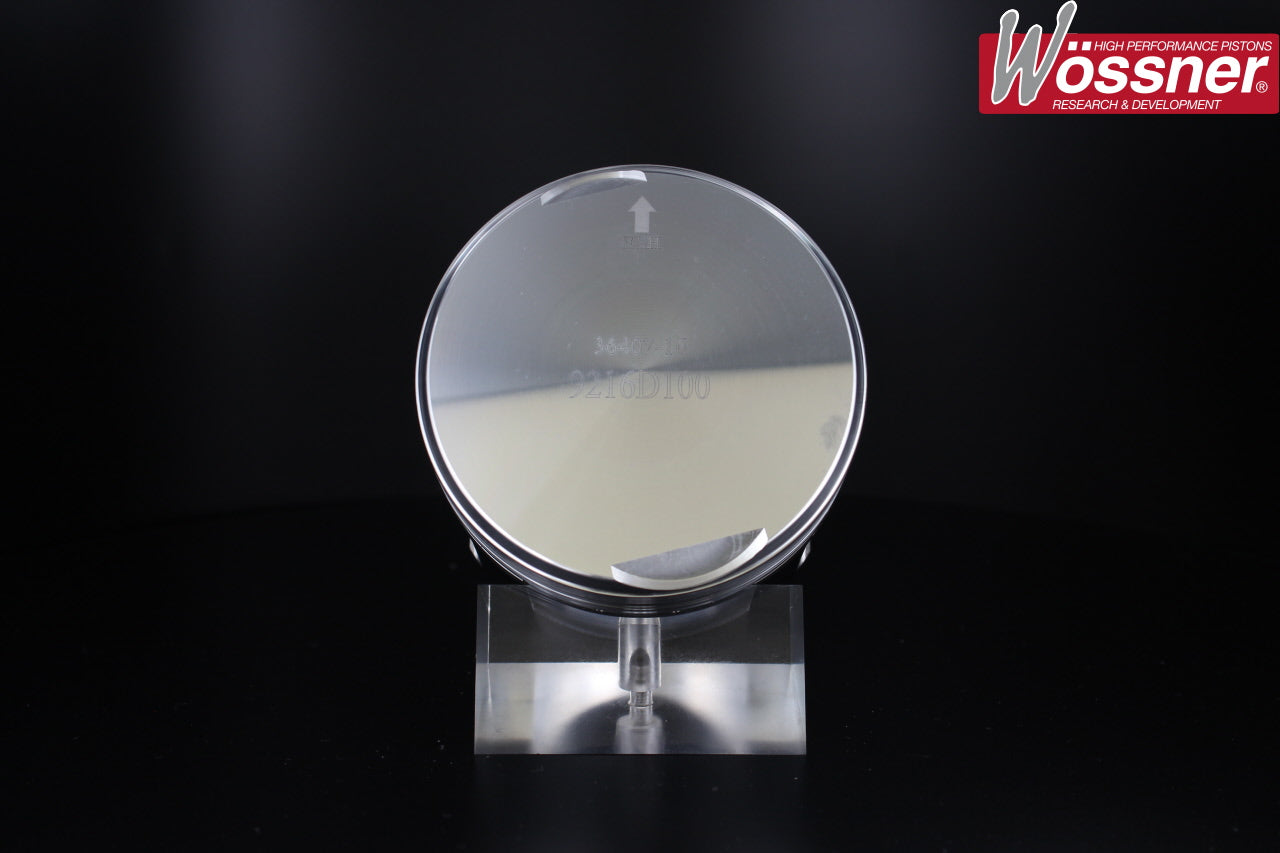

Wössner Ford Escort & Fiesta RS Turbo 1.6 CVH Forged Piston Kit.
Kit reference: K9216
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | LC |
|---|---|
| Model years from | 1980 |
| Model years to | 1990 |
| Bore Size | 80.5mm , 80mm , 81mm |
| Stroke | 79.52mm |
| Compression Height | 38.8mm |
| Number of Rings | 3 |
| Piston pin diameter | 20.6502mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9216D050 | 80.43mm | 8.38:1 |
| K9216D100 | 80.93mm | 8.46:1 |
| K9216DA | 79.93mm | 8.3:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
