£808.99

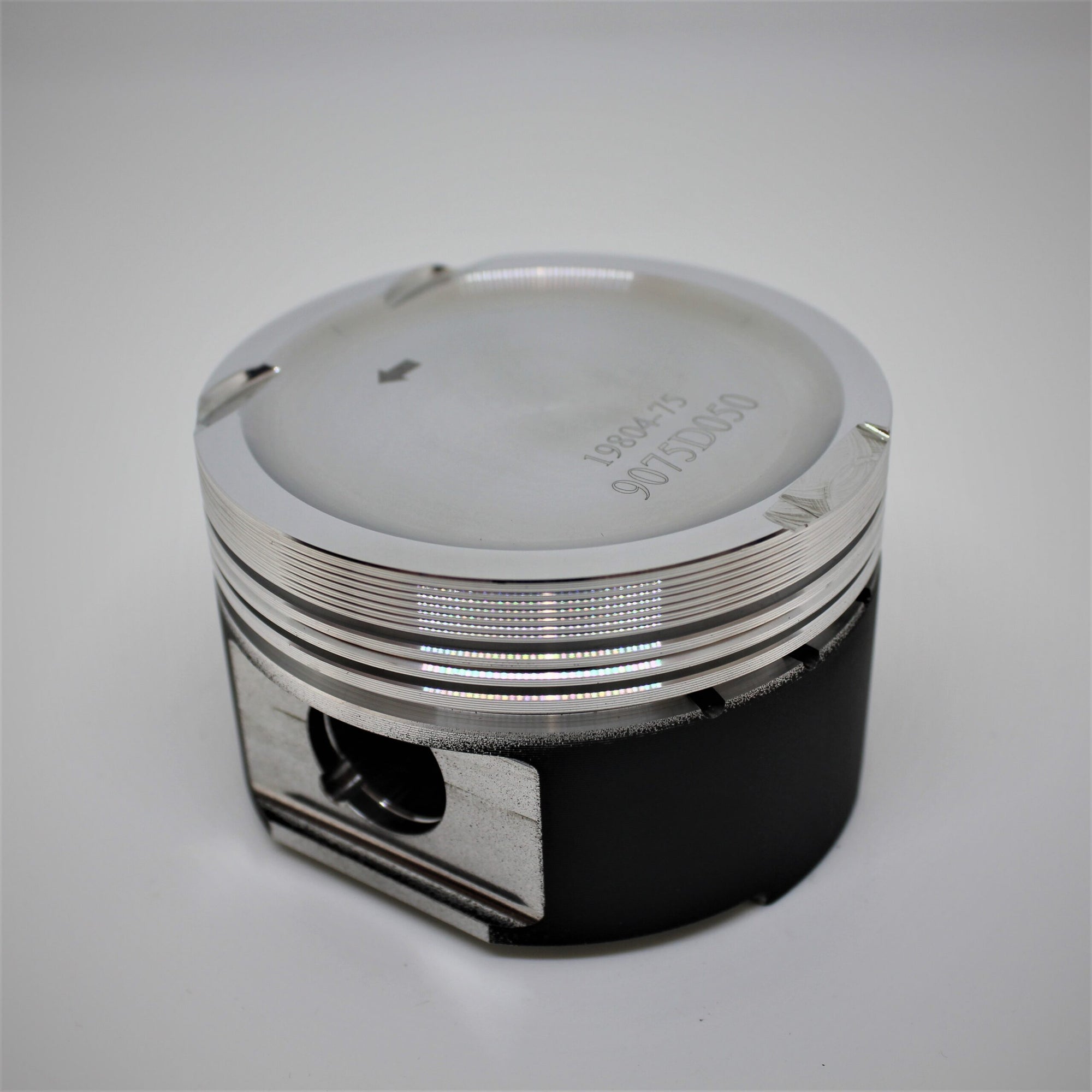

Wössner Audi TT & Golf Mk4 Gti 1.8 20v Turbo Forged Piston Kit.
Kit reference: K9075
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | AEB / AGU |
|---|---|
| Model years from | 1996 |
| Model years to | 2000 |
| Bore Size | 81.5mm , 81mm , 82.5mm , 82mm , 83mm |
| Stroke | 86.4mm |
| Compression Height | 32.7mm |
| Number of Rings | 3 |
| Piston pin diameter | 20mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 5 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9075D200 | 82.93mm | 8.78:1 |
| K9075D150 | 82.43mm | 8.78:1 |
| K9075D050 | 81.43mm | 8.59:1 |
| K9075D100 | 81.93mm | 8.69:1 |
| K9075DA | 80.93mm | 8.5:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
