£849.43

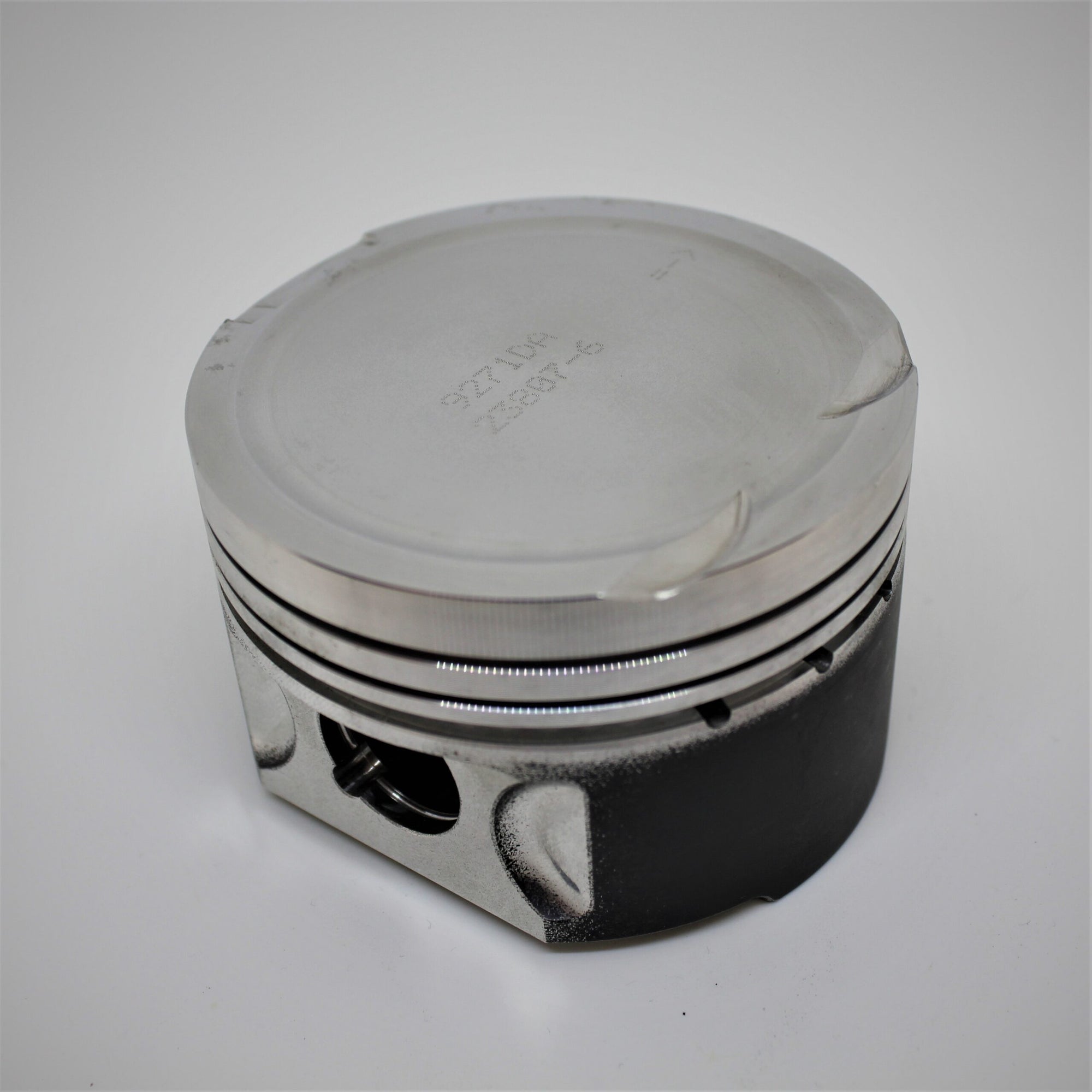

Wössner A4, A6 & TT / GOLF GTi Mk4 1.8 20v Race Comp Turbo Forged Piston Kit.
Kit reference: K9271
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | APX / APY / BAM |
|---|---|
| Model years from | 1998 |
| Model years to | 2006 |
| Bore Size | 81.5mm – K9271D050 , 81mm – K9271DA , 82.5mm – K9271D150 , 82mm – K9271D100 |
| Stroke | 86.4mm |
| Compression Height | 32.7mm |
| Number of Rings | 3 |
| Piston pin diameter | 20mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 5 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9271D100 | 81.93mm | 9.71:1 |
| K9271D050 | 81.43mm | 9.61:1 |
| K9271D150 | 82.43mm | 9.82:1 |
| K9271DA | 80.93mm | 9.5:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
