£849.43

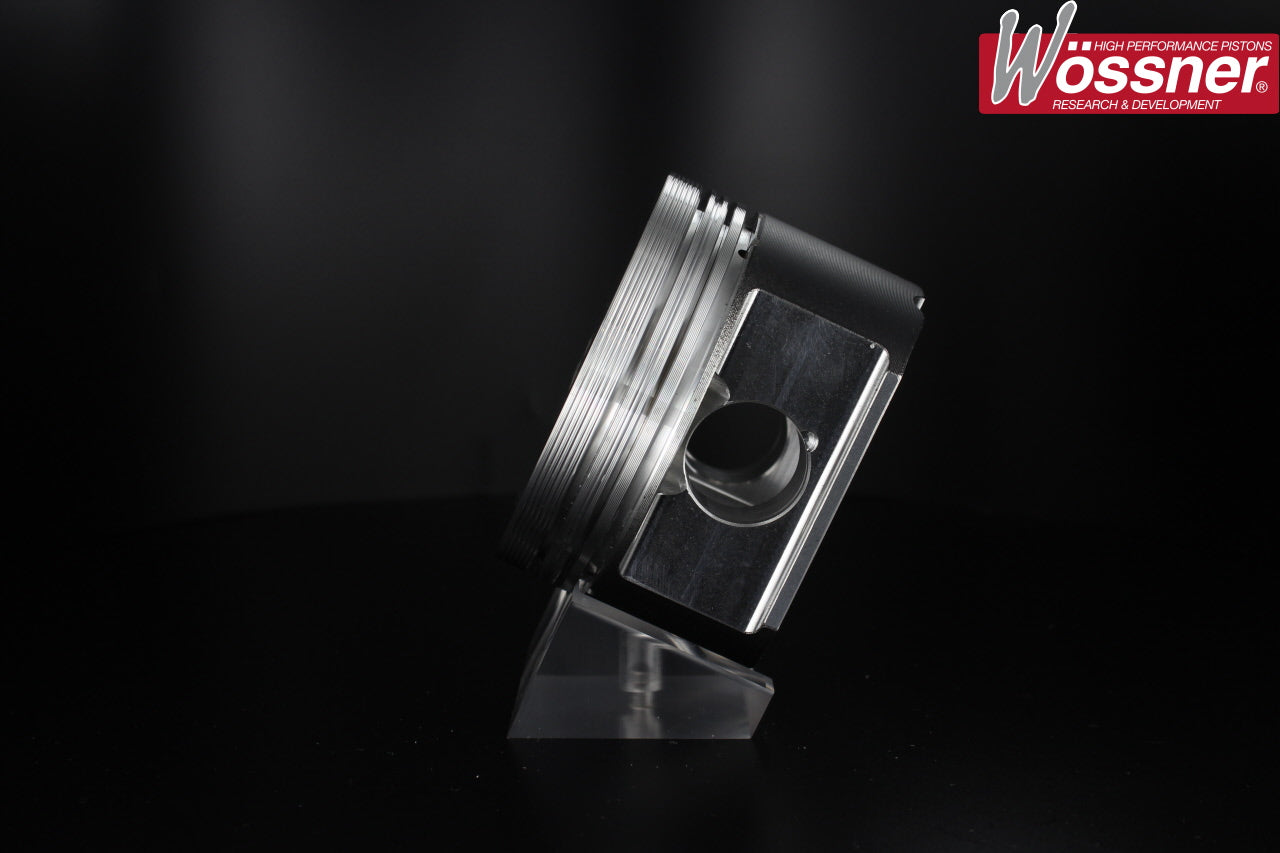

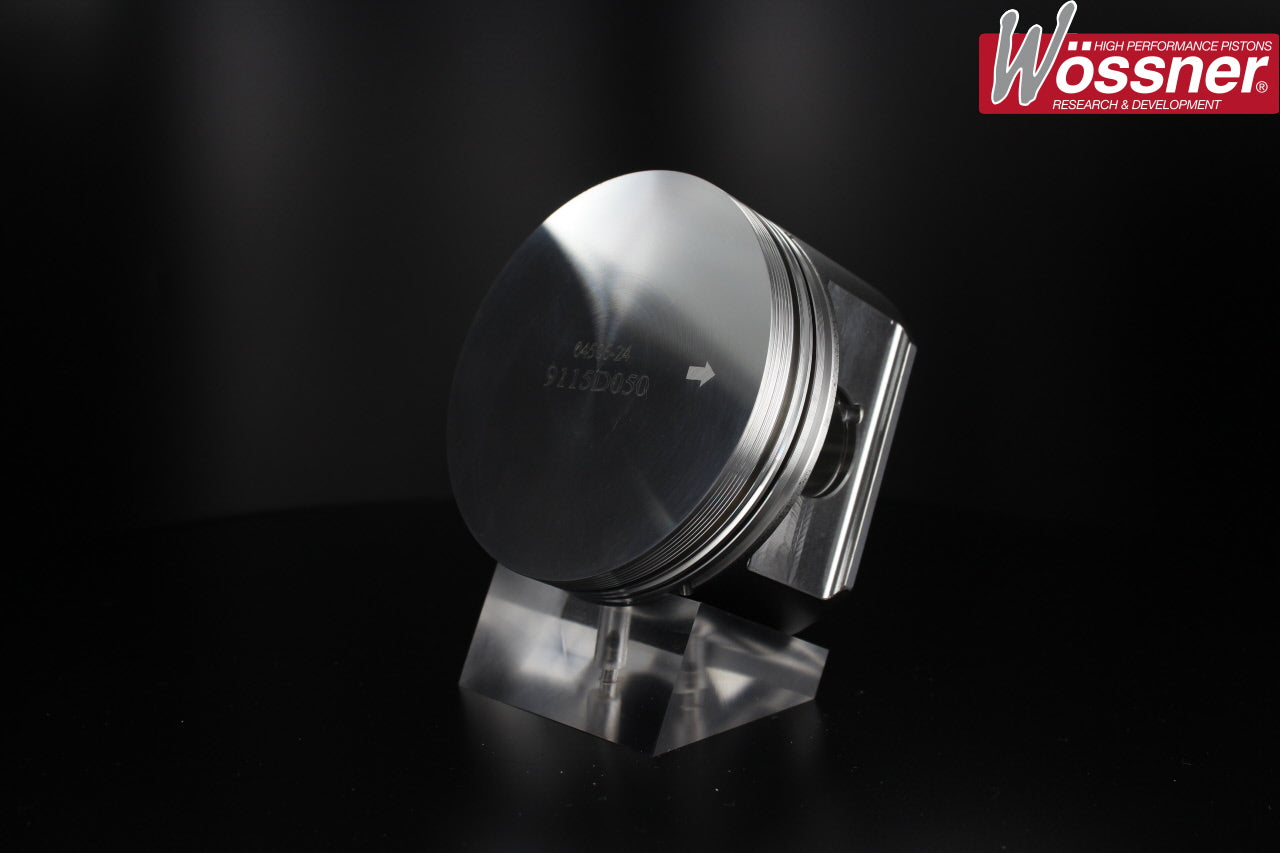

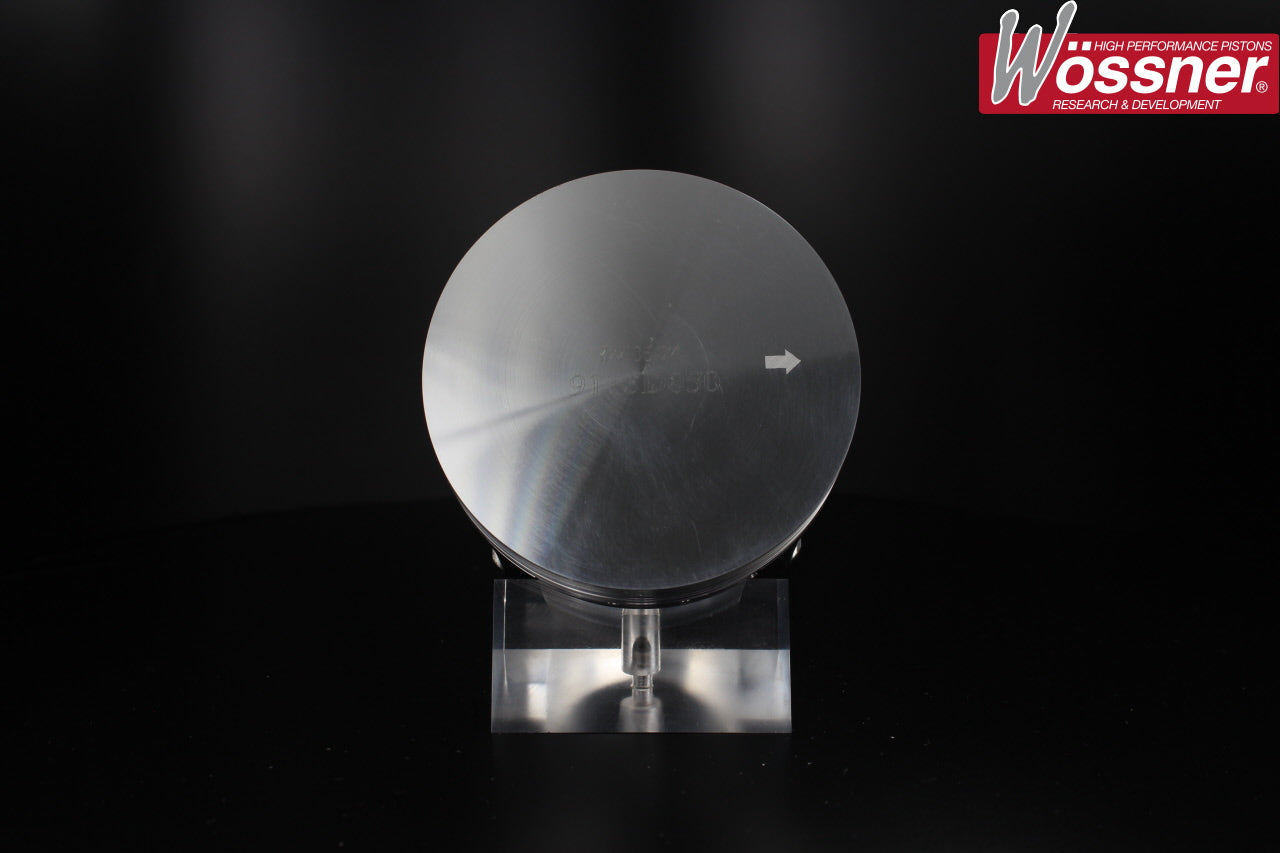

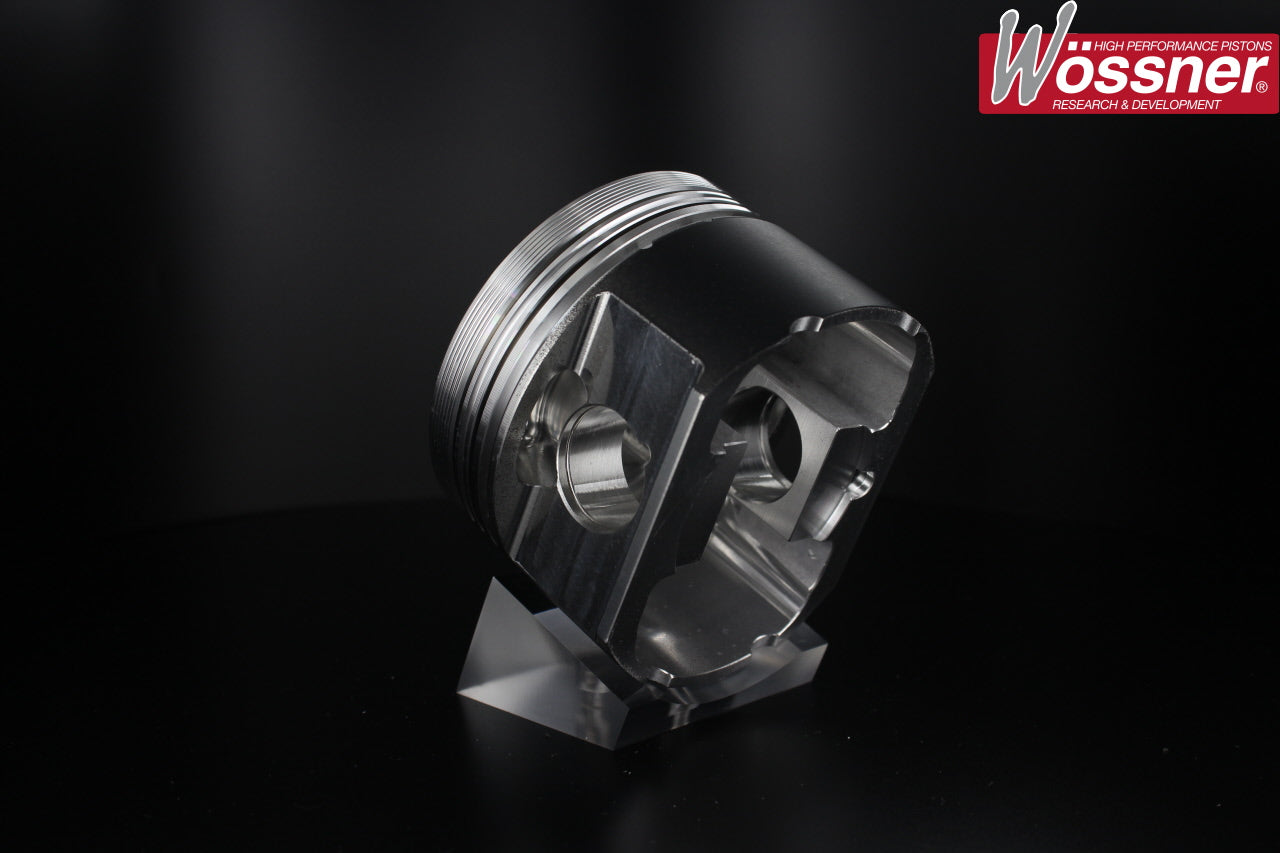

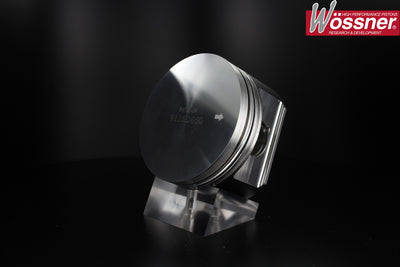

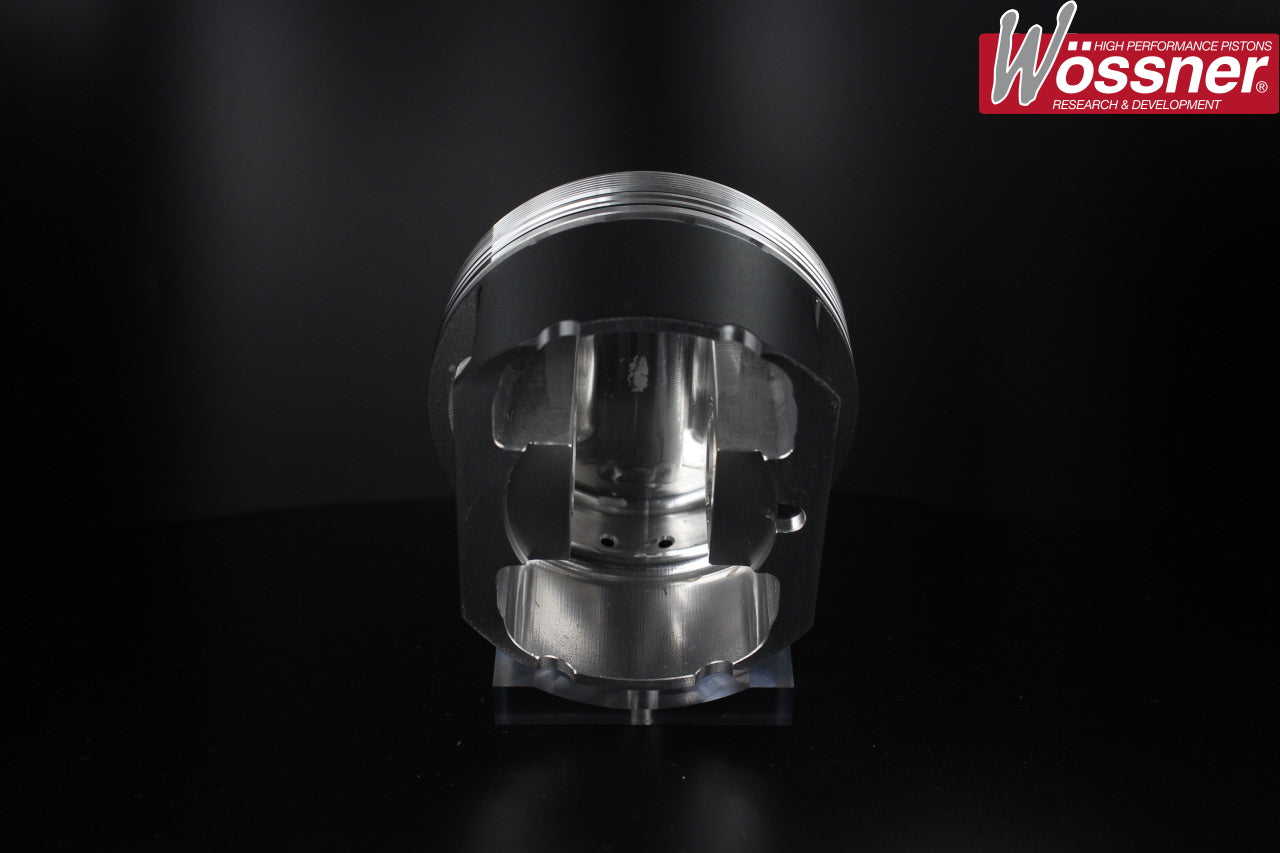

405 T16 2.0 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9115
| Engine Code | XU10J4 |
|---|---|
| YOM From | 1992 |
| YOM To | 1995 |
| Bore Size | 86.5mm , 86mm , 87mm |
| Stroke | 86mm |
| Compression Height | 35.5mm |
| OEM Comp Ratio | 08:01 |
| Number of Rings | 3 |
| OEM Rod Length | 152mm |
| Clip Part Number | CW23 |
| Pin Size | 23mm |
| Pin Part Number | WP024 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9115D050 | 86.43mm | 8.08:1 | 2021cc |
| K9115D100 | 86.93mm | 8.16:1 | 2044cc |
| K9115DA | 85.93mm | 8:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
