£1,337.74

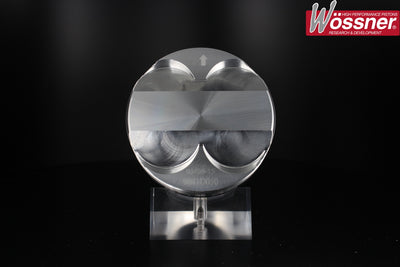

405 & ZX 2.0 16V XU High Comp Forged Piston & H-Beam Steel Con Rod Package.
Manufacturer kit reference: K9041/G0016
| Engine Code | XU10J4 |
|---|---|
| YOM From | 1987 |
| YOM To | 1992 |
| Bore Size | 86.5mm , 86mm , 87mm |
| Stroke | 86mm |
| Compression Height | 38mm |
| OEM Comp Ratio | 10.4:1 |
| Number of Rings | 3 |
| OEM Rod Length | 152mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP009 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0016 |
| Con Rod Length C/C | 152mm |
| Engine Code | XU10J4 |
|---|---|
| YOM From | 1987 |
| YOM To | 1992 |
| Con Rod Length C/C | 152mm |
| Con Rod Big End Dia | 53.7mm |
| Con Rod Big End Width | 24.20mm |
| Con Rod Small End Dia | 22mm |
| Con Rod Small End Width | 19.50mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9041D050 | 86.43mm | 12.33:1 | 2021cc |
| K9041D100 | 86.93mm | 12.46:1 | 2044cc |
| K9041DA | 85.93mm | 12.2:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
