£1,401.83

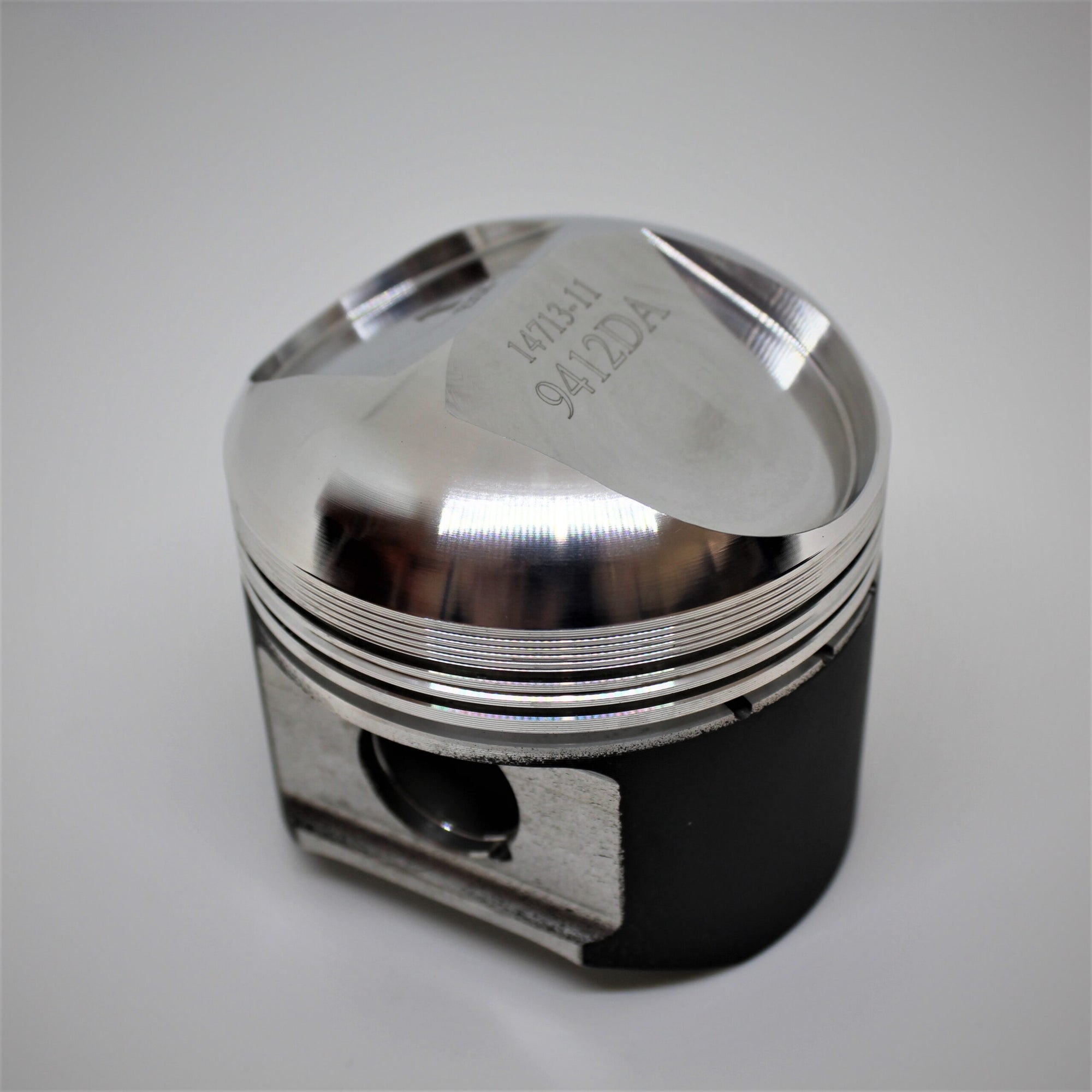

911-S High Comp Forged Piston Kit.
Manufacturer kit reference: K9412
| Engine Code | 2000 |
|---|---|
| YOM From | 1966 |
| YOM To | 1966 |
| Bore Size | 80.5mm – K9412D050 , 80mm – K9412DA , 81mm – K9412D100 |
| Stroke | 66mm |
| Compression Height | 34mm |
| OEM Comp Ratio | 9.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 130mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017 |
| Cylinders | 6 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9412D050 | 80.43mm | 10.62:1 | 2015cc |
| K9412D100 | 80.93mm | 10.74:1 | 2040cc |
| K9412DA | 79.93mm | 10.5:1 | 1990cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
