£1,401.83

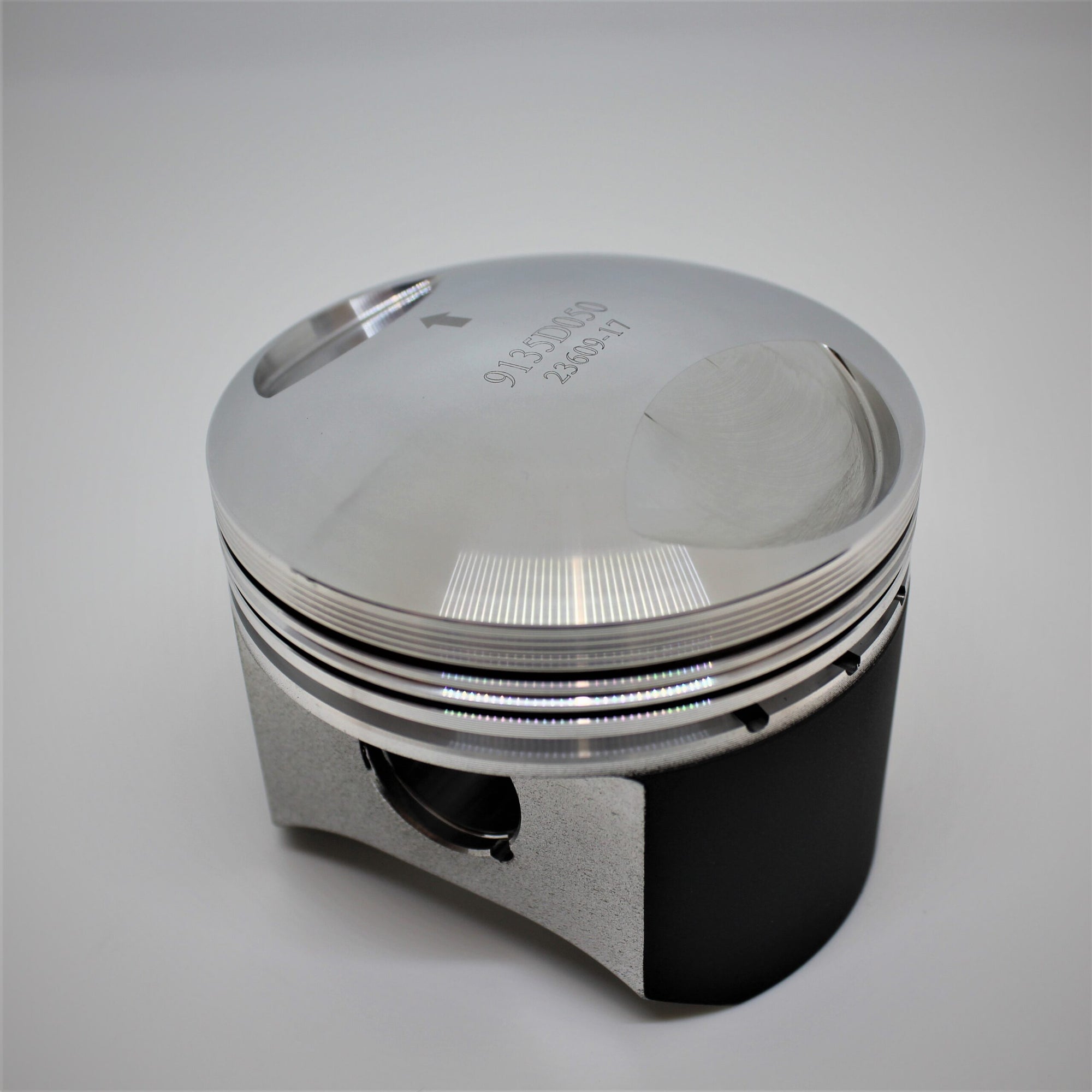

911T 2.2 12v Forged Piston Kit.
Manufacturer kit reference: K9135
| Engine Code | 911.03 |
|---|---|
| YOM From | 1969 |
| YOM To | 1971 |
| Bore Size | 84.5mm , 84mm , 85mm |
| Stroke | 66mm |
| Compression Height | 34mm |
| OEM Comp Ratio | 8.6:1 |
| Number of Rings | 3 |
| OEM Rod Length | 130mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017 |
| Cylinders | 6 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9135D050 | 84.44mm | 8.59:1 | 2220cc |
| K9135D100 | 84.94mm | 8.68:1 | 2246cc |
| K9135DA | 83.94mm | 8.5:1 | 2194cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
