£1,401.83

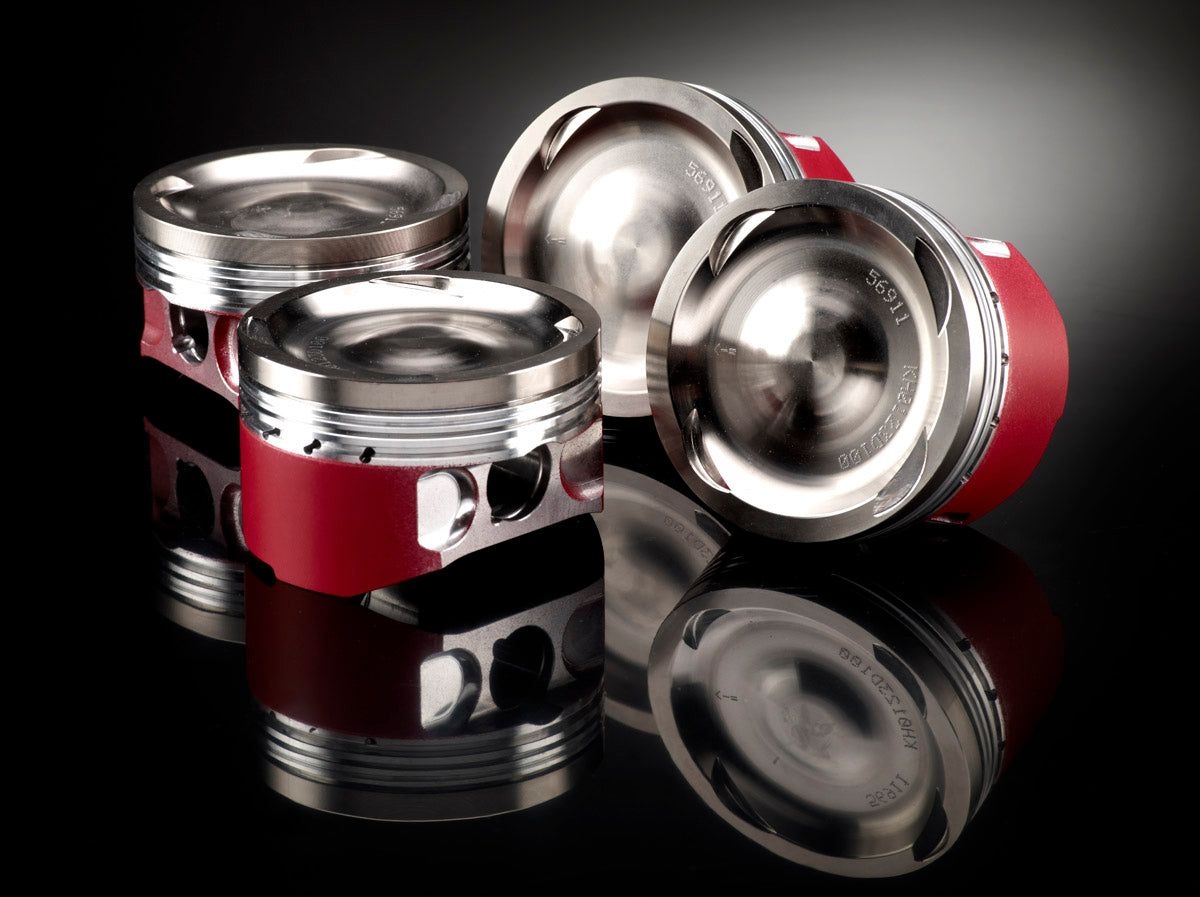

964 3.6 Forged Piston Kit.
Manufacturer kit reference: K9017
| Engine Code | M64 |
|---|---|
| YOM From | 1989 |
| YOM To | 1994 |
| Bore Size | 100mm – K9017DA , 102mm – K9017D200 |
| Stroke | 76.4mm |
| Compression Height | 31.7mm |
| OEM Comp Ratio | 11.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 127.75mm |
| Clip Part Number | C23x1.6 |
| Pin Size | 23mm |
| Pin Part Number | WP008 |
| Cylinders | 6 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9017DA | 99.94mm | 11.8:1 | 3600cc |
| K9017D200 | 101.94mm | 11.8:1 | 3745cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
