£849.43

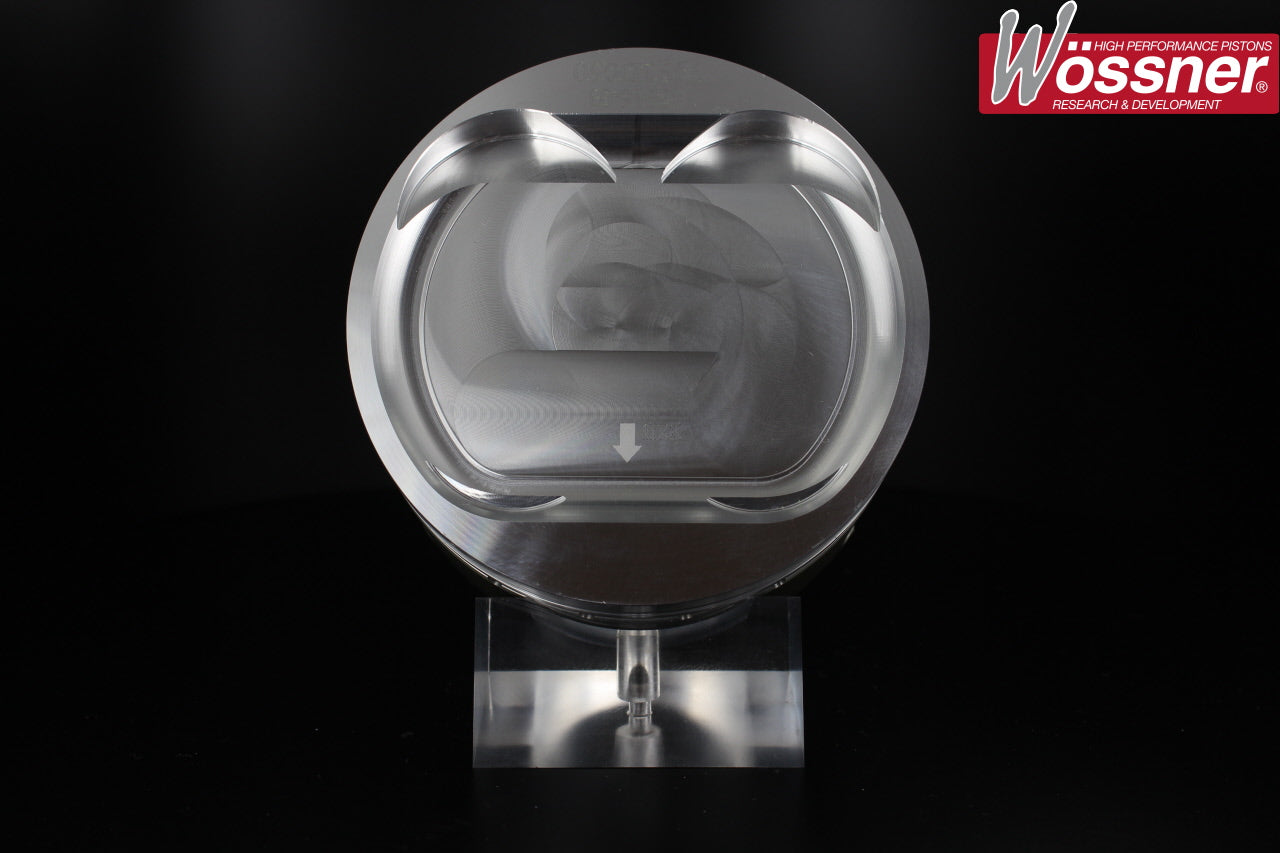

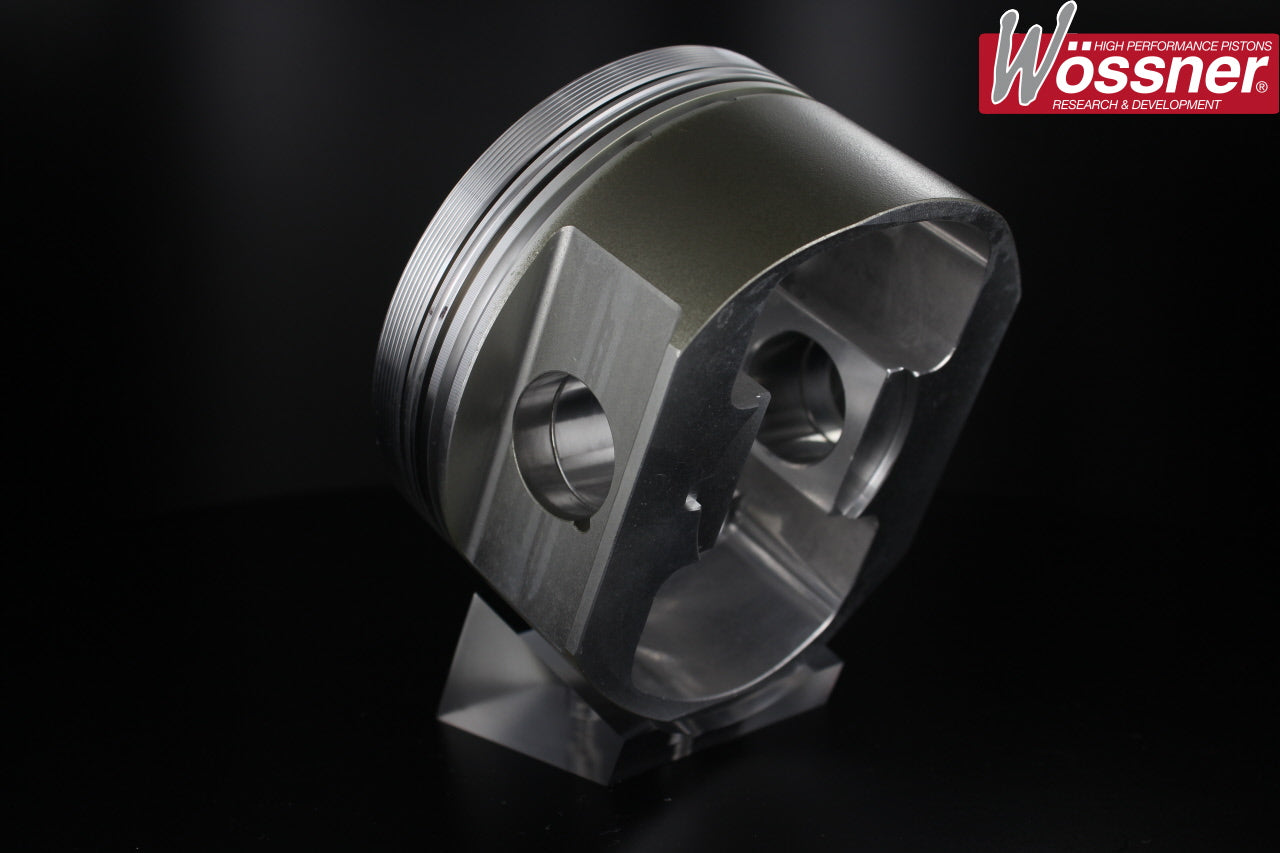

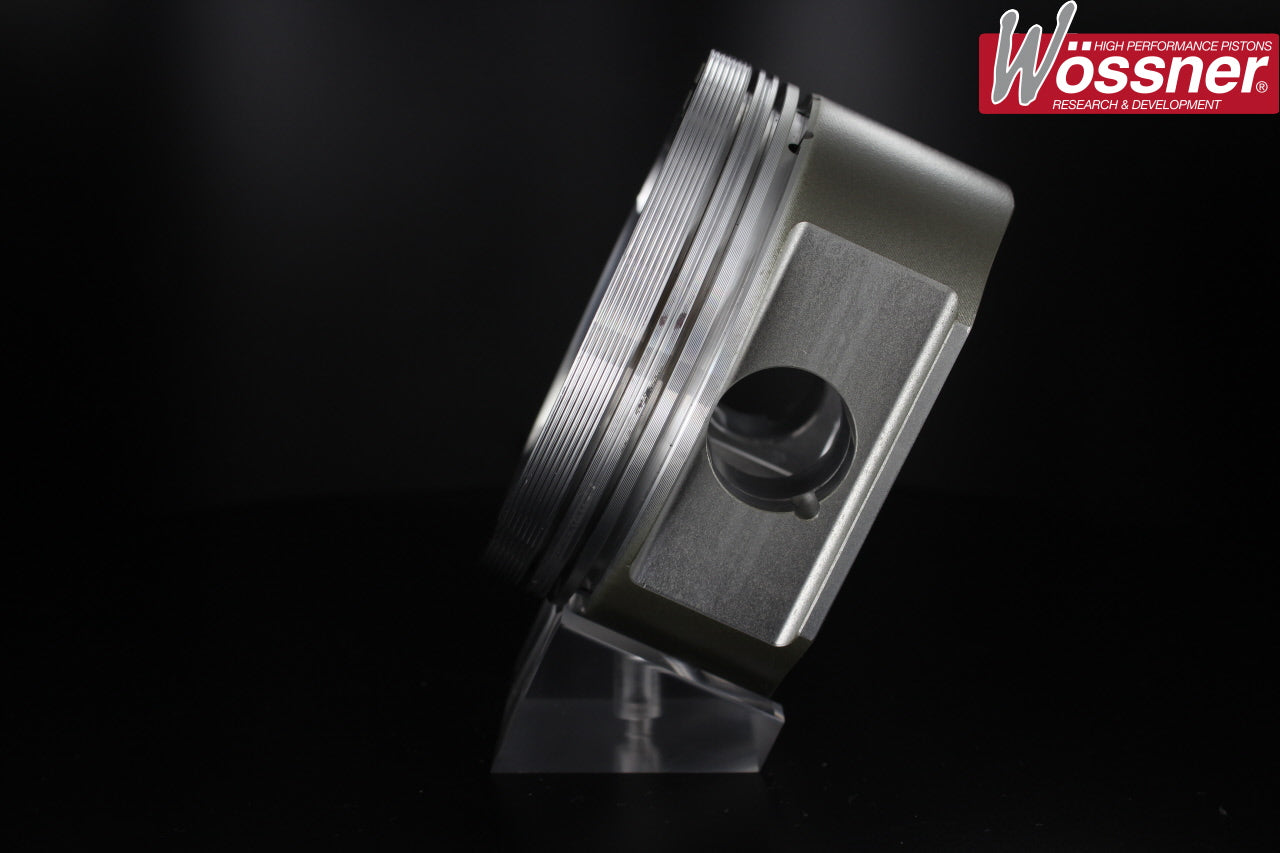

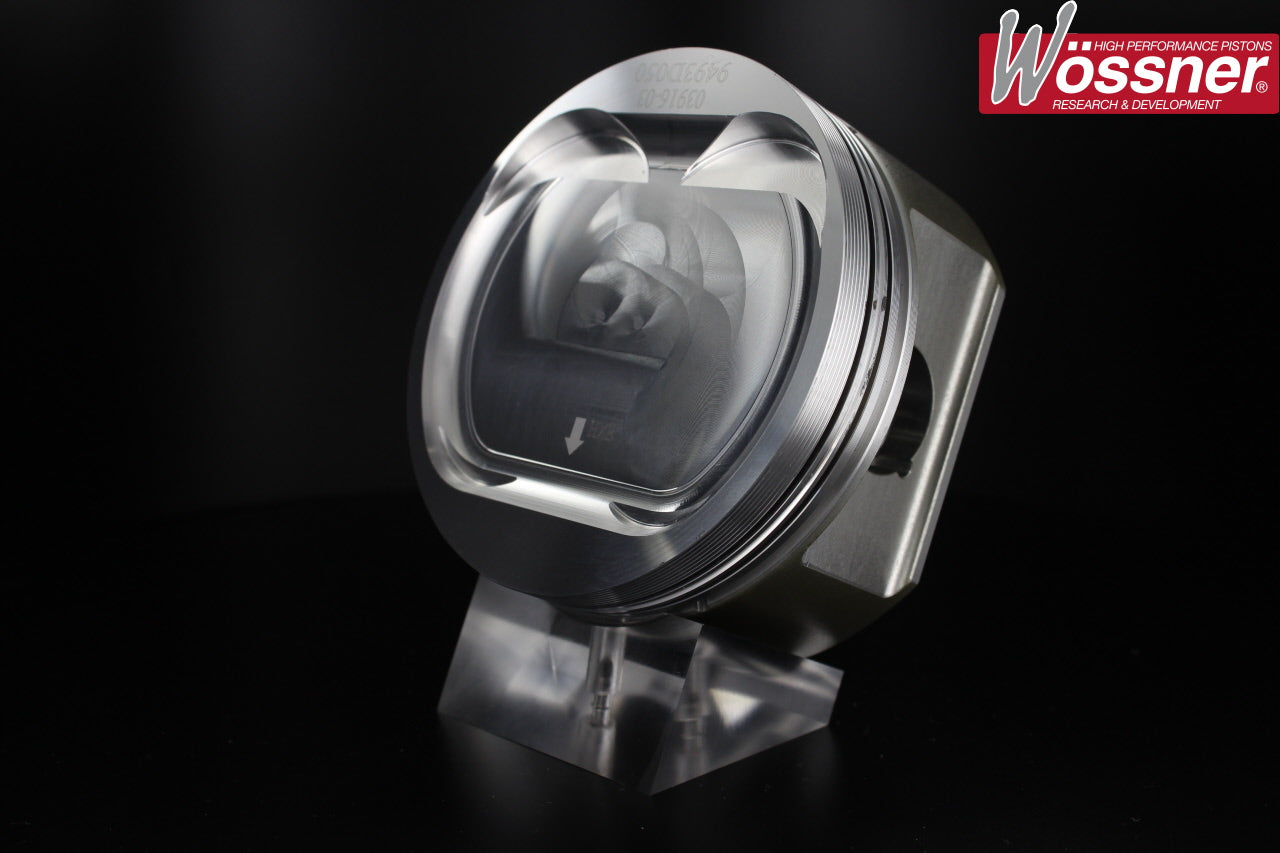

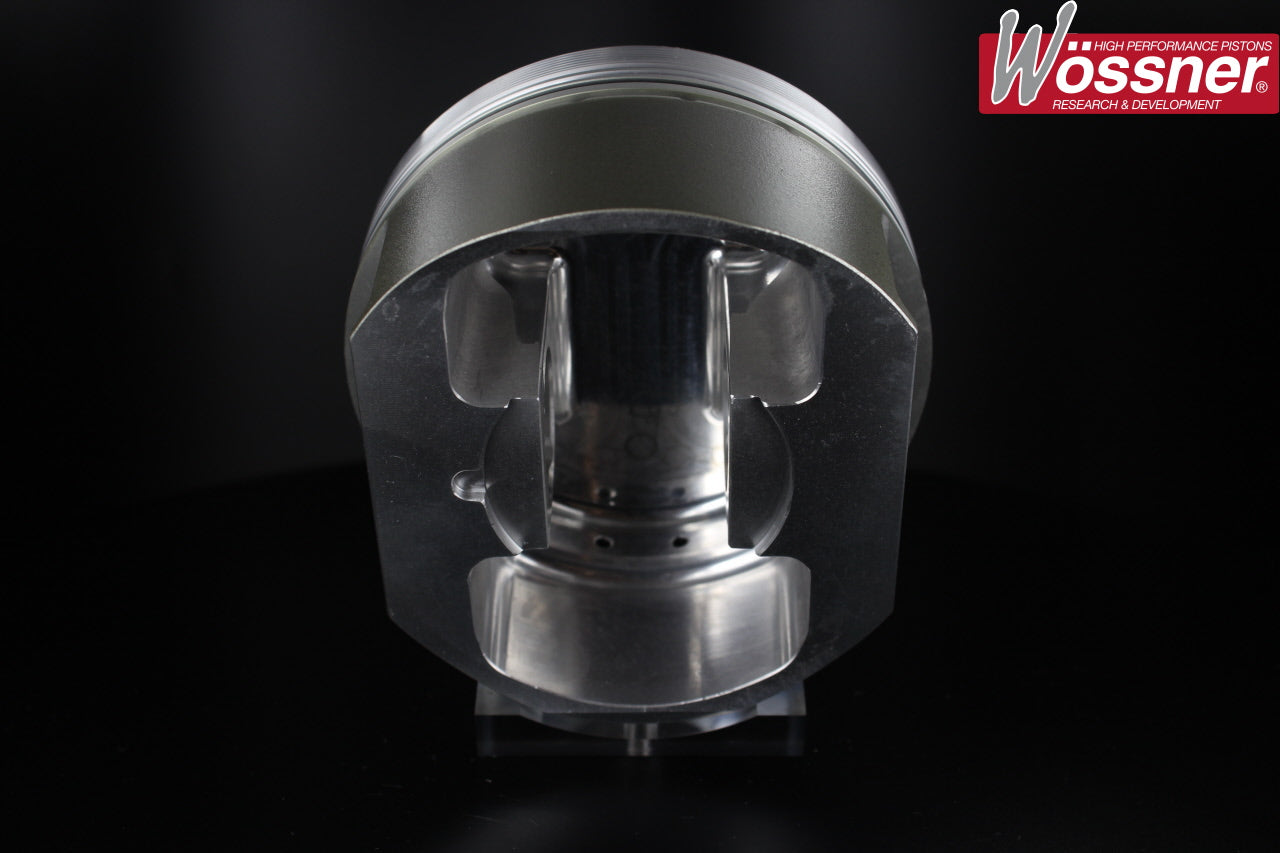

968 / 944S2 3.0 Forged Piston Kit.
Manufacturer kit reference: K9493
| Engine Code | M44.41/43/43 |
|---|---|
| YOM From | 1988 |
| YOM To | 1991 |
| Bore Size | 104.5mm – K9493D050 , 104mm – K9493DA , 105mm – K9493D100 |
| Stroke | 88mm |
| Compression Height | 36mm |
| OEM Comp Ratio | 10.9:1 |
| Number of Rings | 3 |
| OEM Rod Length | 150mm |
| Clip Part Number | CW24 |
| Pin Size | 24mm |
| Pin Part Number | WP022 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9493D100 | 104.92mm | 10.9:1 | 3047cc |
| K9493D050 | 104.42mm | 10.9:1 | 3018cc |
| K9493DA | 103.92mm | 10.9:1 | 2989cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
