£1,545.52

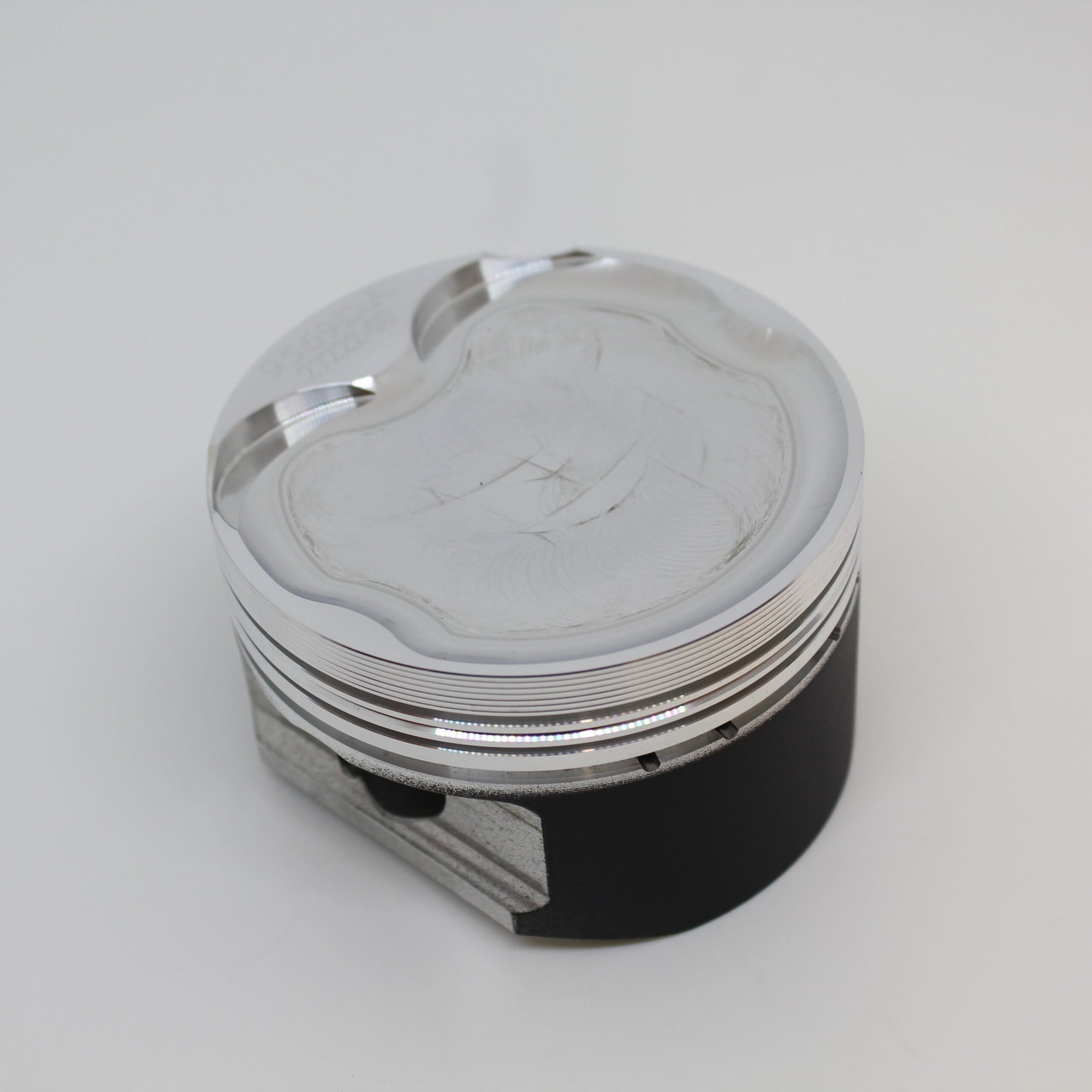

986 2.7 24V Boxster & 987 Cayman High Comp Forged Piston Kit.
Manufacturer kit reference: K9569
| YOM To | 2000 |
|---|---|
| YOM From | 2008 |
| Bore Size | 85.5mm – K9569DA |
| Stroke | 78mm |
| Compression Height | 32.3mm |
| OEM Comp Ratio | 11:01 |
| Number of Rings | 3 |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP098-SP |
| Cylinders | 6 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9569DA | 85.42mm | 11.0:1 |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
