£1,471.92

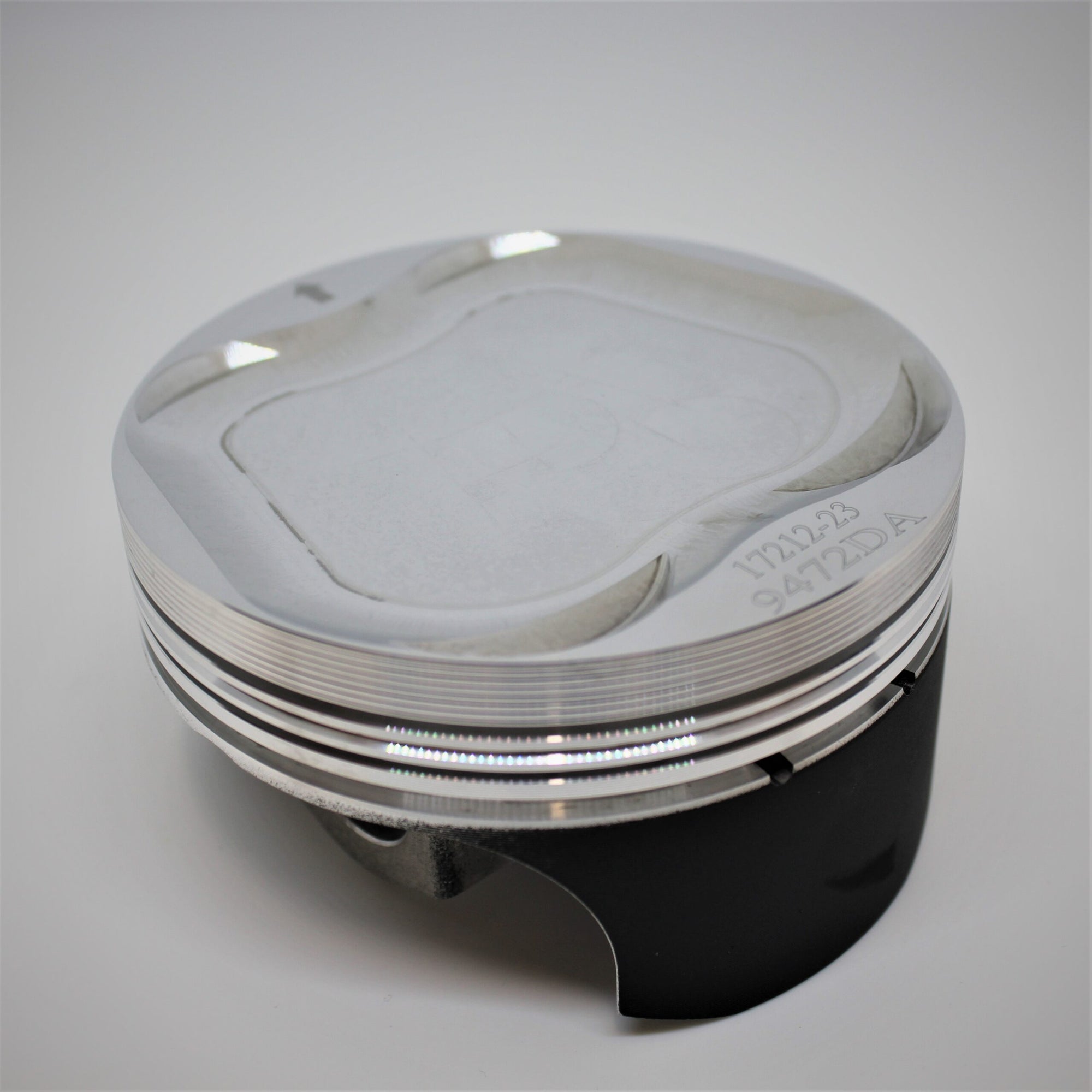

996 & 911 Carrera 4 Forged Piston Kit.
Manufacturer kit reference: K9472
| Engine Code | M96.01/04 |
|---|---|
| YOM From | 1997 |
| YOM To | 2001 |
| Bore Size | 96.5mm – K9472D050 , 96mm – K9472DA , 97mm – K9472D100 |
| Stroke | 78mm |
| Compression Height | 32.3mm |
| OEM Comp Ratio | 11.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 145mm |
| Clip Part Number | 6 , C22x1 |
| Pin Size | 22mm |
| Pin Part Number | WP098 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9472D050 | 96.43mm | 11.4:1 | 3422cc |
| K9472D100 | 96.93mm | 11.3:1 | 3458cc |
| K9472DA | 95.93mm | 11.3:1 | 3387cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
