£849.43

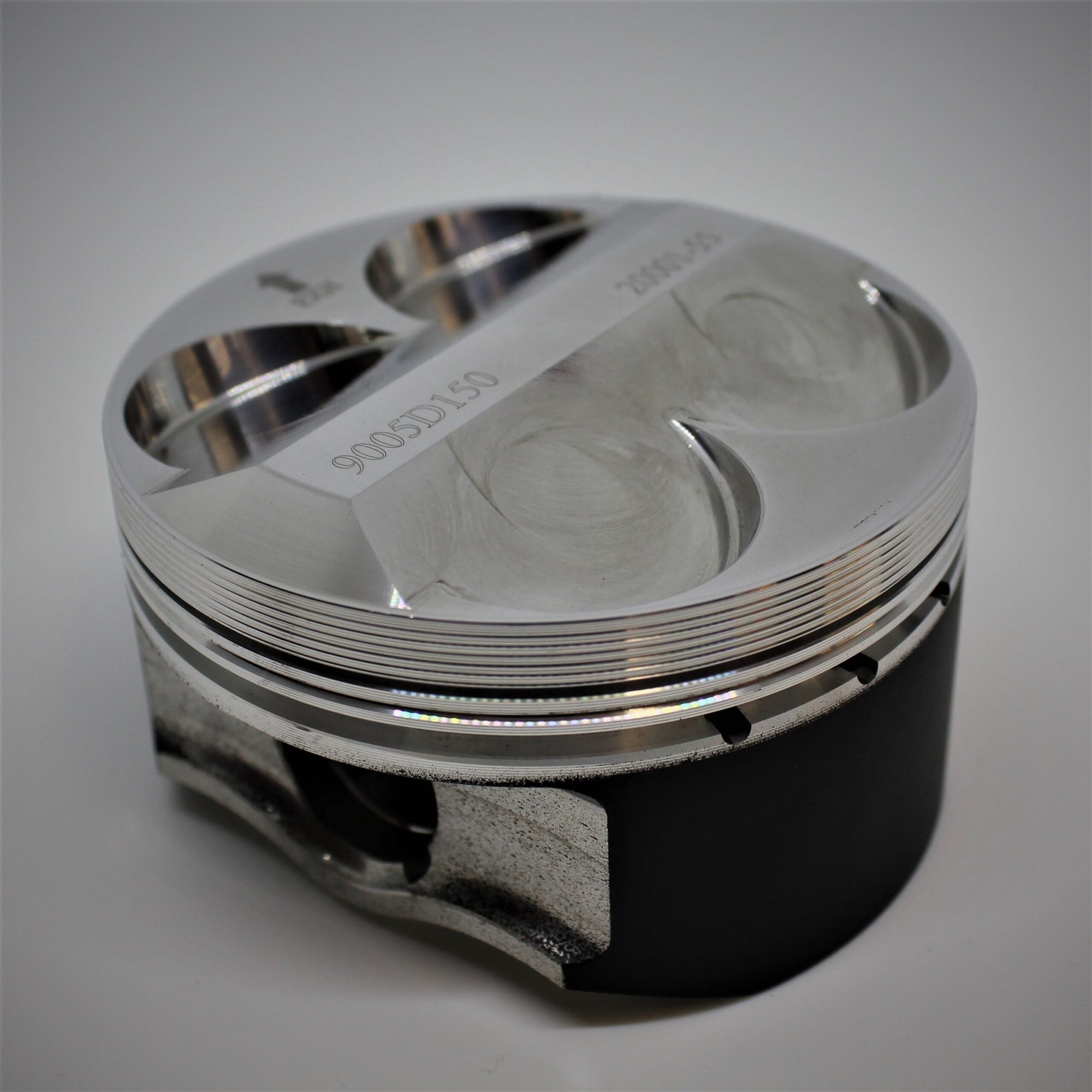

C20XE 2.0 16v High Comp 2 ring Forged Piston Kit.
Manufacturer kit reference: K9005
| Engine Code | C20XE |
|---|---|
| YOM From | 1987 |
| YOM To | 1998 |
| Bore Size | 86.5mm – K9005D050 , 86mm – K9005DA , 87.5mm – K9005D150 , 87mm – K9005D100 , 88mm – K9005D200 |
| Stroke | 86mm |
| Compression Height | 30.5mm |
| OEM Comp Ratio | 10.5:1 |
| Number of Rings | 2 |
| OEM Rod Length | 143.1mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP051 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0033 |
| Con Rod Length C/C | 143.1mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9005D050 | 86.43mm | 12.63:1 | 2021cc |
| K9005D100 | 86.93mm | 12.76:1 | 2044cc |
| K9005D150 | 87.43mm | 12.9:1 | 2068cc |
| K9005D200 | 87.93mm | 13.04:1 | 2091cc |
| K9005DA | 85.93mm | 12.5:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
