Wossner Citroen C3/C4 & Peugeot 308 – 1.2 16v Turbo Forged Piston kit (K9553)

Wossner Pistons

Wossner Citroen C3/C4 & Peugeot 308 – 1.2 16v Turbo Forged Piston kit (K9553)

£824.09

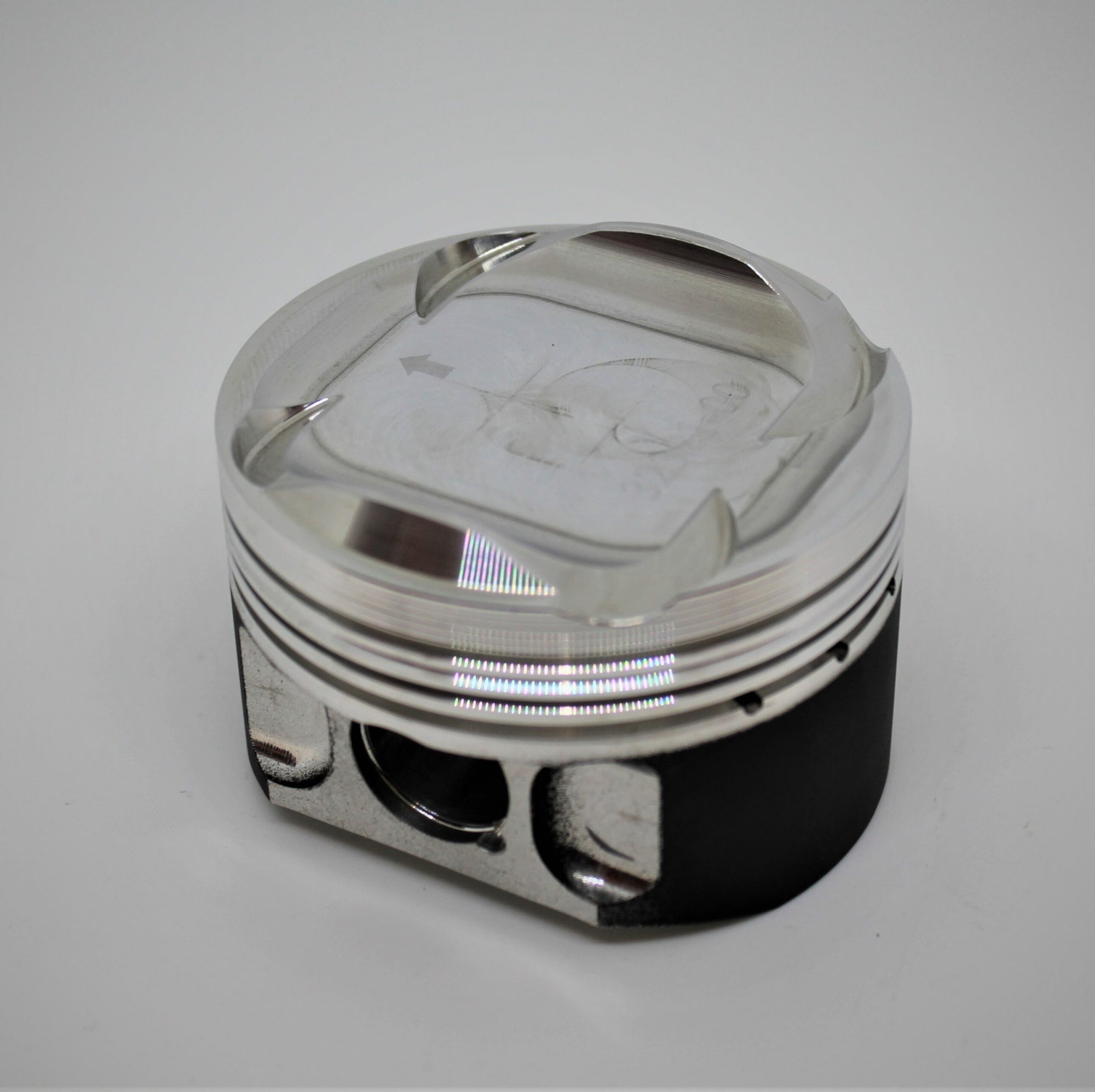

Citroen C3/C4 & Peugeot 308 – 1.2 16v Turbo Forged Piston kit.

Manufacturer kit reference: K9553

Technical specifications

Engine Code EB2ADTS
YOM From 2017
YOM To 2021
Bore Size 75mm – K9553DA
Stroke 90.5mm
Compression Height 28.6mm
OEM Comp Ratio 10.5:1
Number of Rings 3
Clip Part Number CW20
Pin Size 20mm
Pin Part Number WP152-SP
Cylinders 3
Valves Per Cylinder 4

Piston specifications by size

Piston reference Piston diameter Compression ratio Capacity
K9553DA 74.95mm 10.5:1 1199cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
