£1,301.34

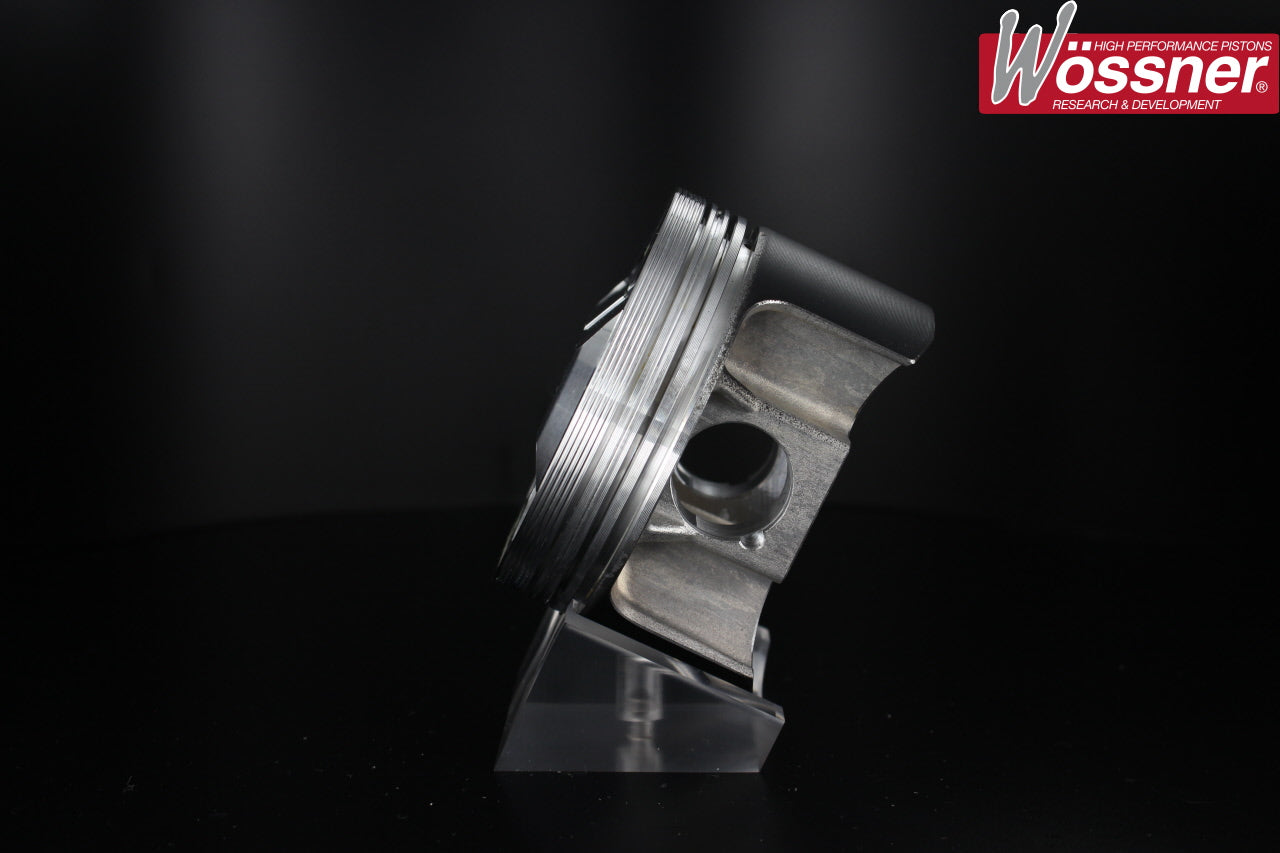

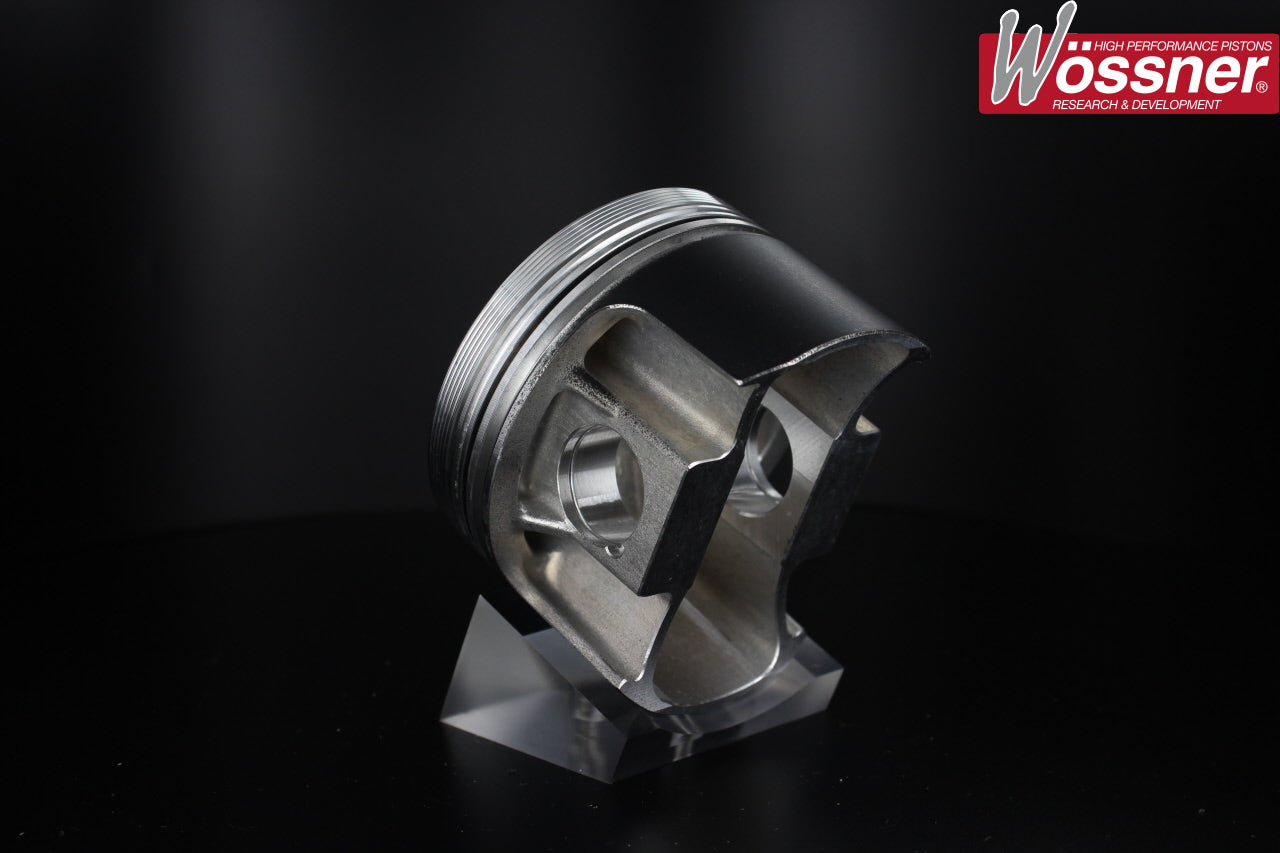

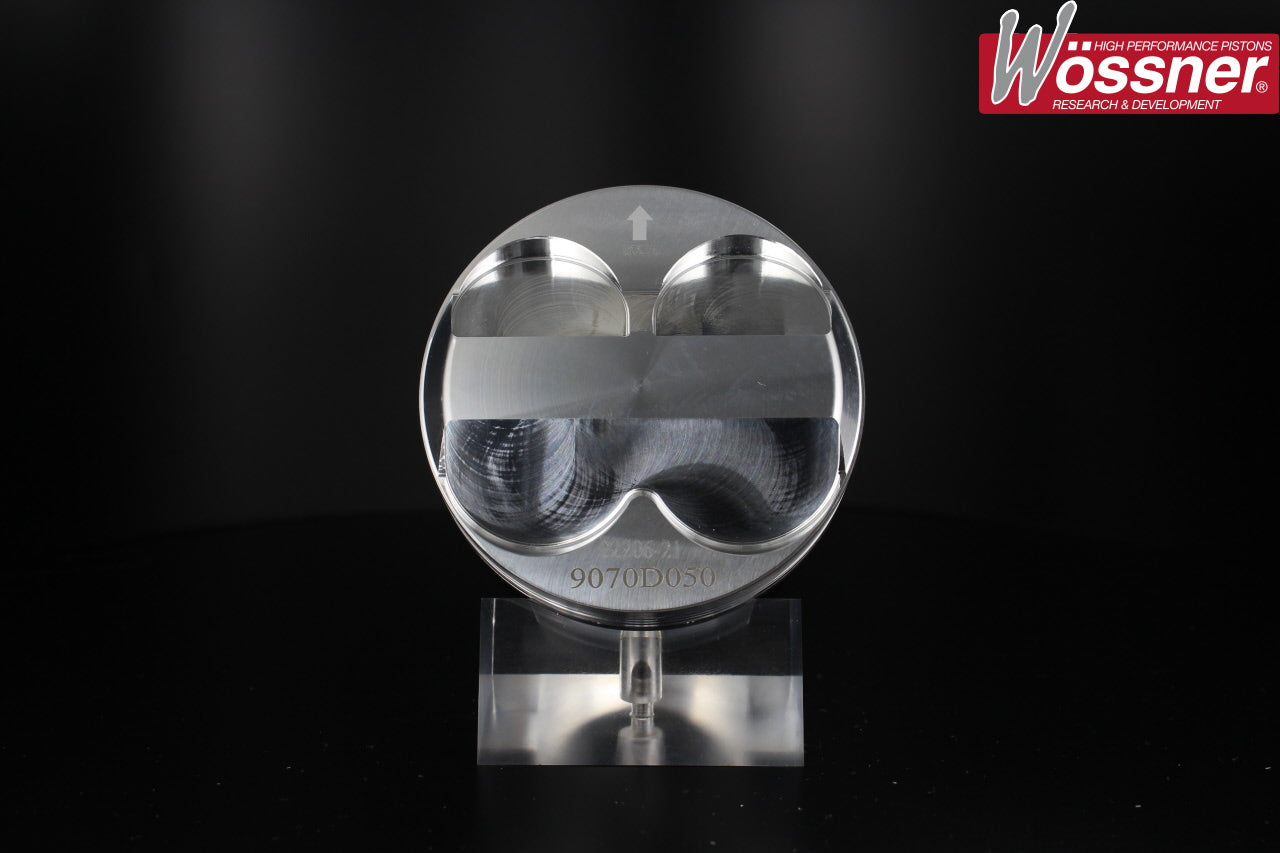

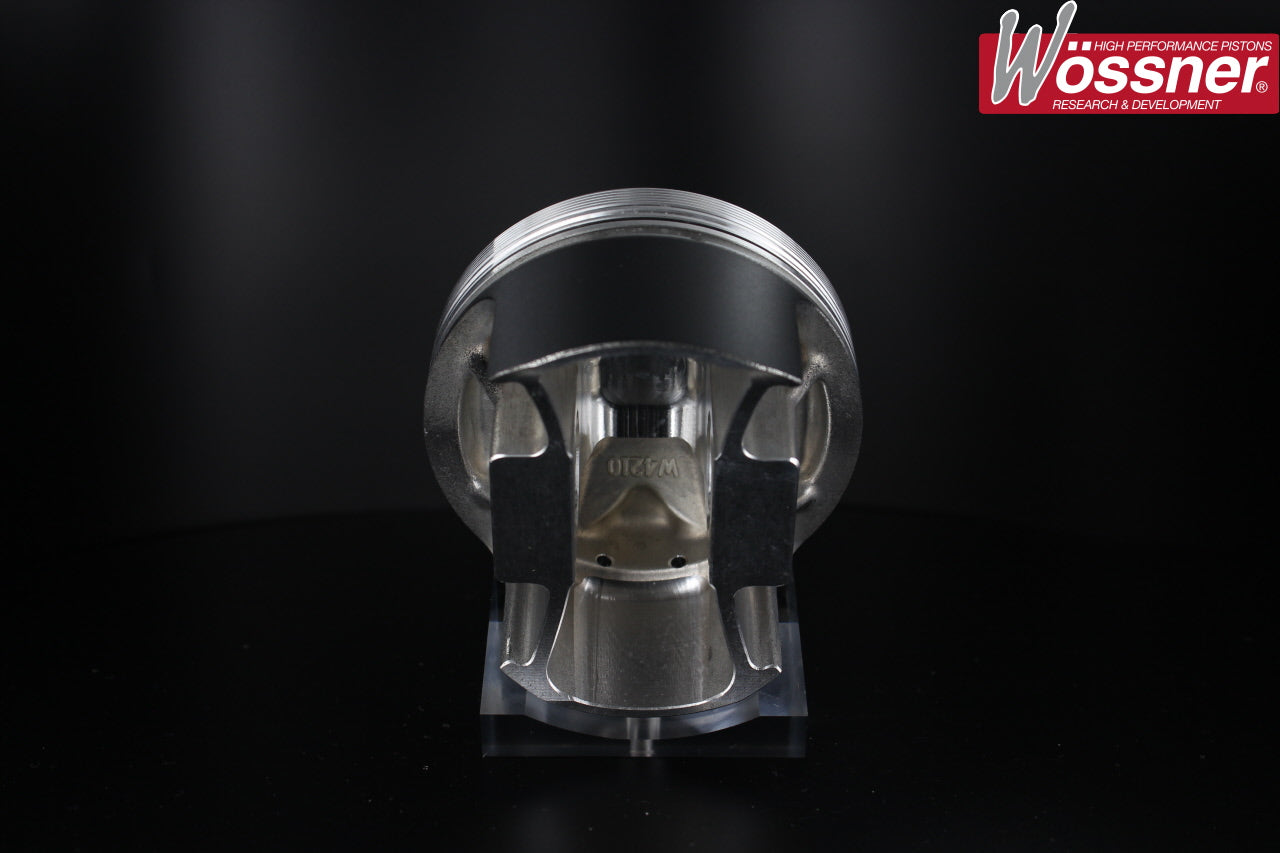

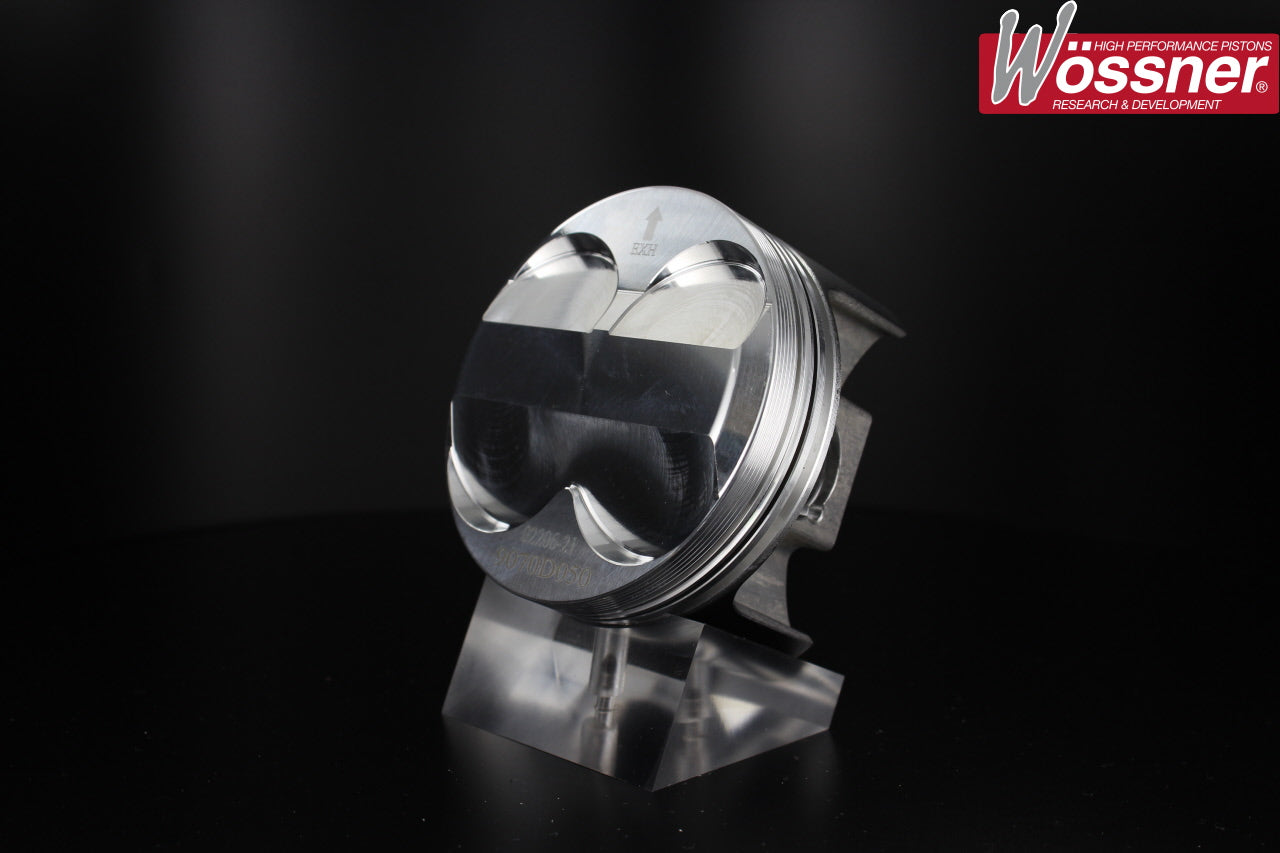

Civic B16A1 / B18C & Integra B17A1 High Comp Forged Piston & H-Beam Steel Con Rod Package.
Manufacturer kit reference: K9070/G0361
| Engine Code | B16A 1989-2001 , B17A1 1992-1993 , B18C 1997-2001 |
|---|---|
| Bore Size | 81.5mm – K9070D050 , 81mm – K9070DA , 82.5mm – K9070D150 , 82mm – K9070D100 , 83mm – K9070D200 , 84.5mm – K9070D350 , 84mm – K9070D300 , 85mm – K9070D400 |
| Stroke | 87.2mm |
| Compression Height | 30.1mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 138mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP013 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Engine Code | B18C4 |
|---|---|
| Con Rod Length C/C | 138mm |
| Con Rod Big End Dia | 48.00mm |
| Con Rod Big End Width | 21.8mm |
| Con Rod Small End Dia | 21.00mm |
| Con Rod Small End Width | 18.00mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9070DA | 80.93mm | 10.3:1 | 1797cc |
| K9070D050 | 81.43mm | 10.4:1 | 1819cc |
| K9070D100 | 81.93mm | 10.5:1 | 1842cc |
| K9070D150 | 82.43mm | 10.7:1 | 1864cc |
| K9070D200 | 82.93mm | 10.7:1 | 1886cc |
| K9070D300 | 83.93mm | 10.9:1 | 1932cc |
| K9070D350 | 84.43mm | 11.0:1 | 1955cc |
| K9070D400 | 84.93mm | 11.1:1 | 1978cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
