£849.43

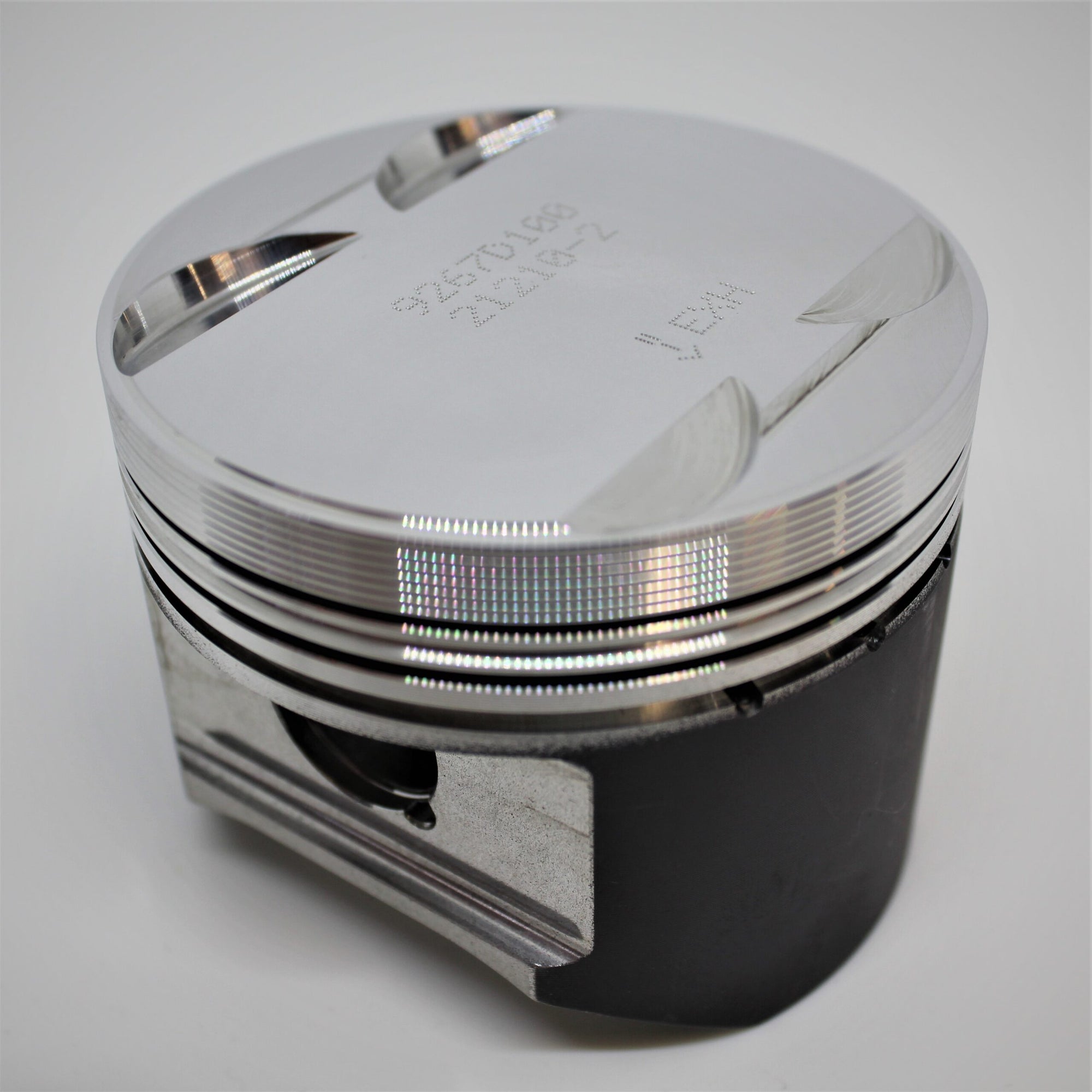

Civix D16Z6/Z7/Z9 11.5:1 Comp Forged Piston Kit.
Manufacturer kit reference: K9267
| Engine Code | D16Z6 , D16Z7 , D16Z9 |
|---|---|
| YOM From | 1992 |
| YOM To | 1995 |
| Bore Size | 75.5mm – K9267D050 , 75mm – K9267DA , 76.5mm – K9267D150 , 76mm – K9267D100 |
| Stroke | 90mm |
| Compression Height | 29.8mm |
| OEM Comp Ratio | 9.4:1 |
| OEM Rod Length | 137mm |
| Clip Part Number | CW19 |
| Pin Size | 19mm |
| Pin Part Number | WP050-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9267DA | 75mm | 11.5:1 | 1590cc |
| K9267D050 | 75.5mm | 11.5:1 | 1611cc |
| K9267D100 | 76mm | 11.5:1 | 1633cc |
| K9267D150 | 76.5mm | 11.5:1 | 1654cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
