£808.99

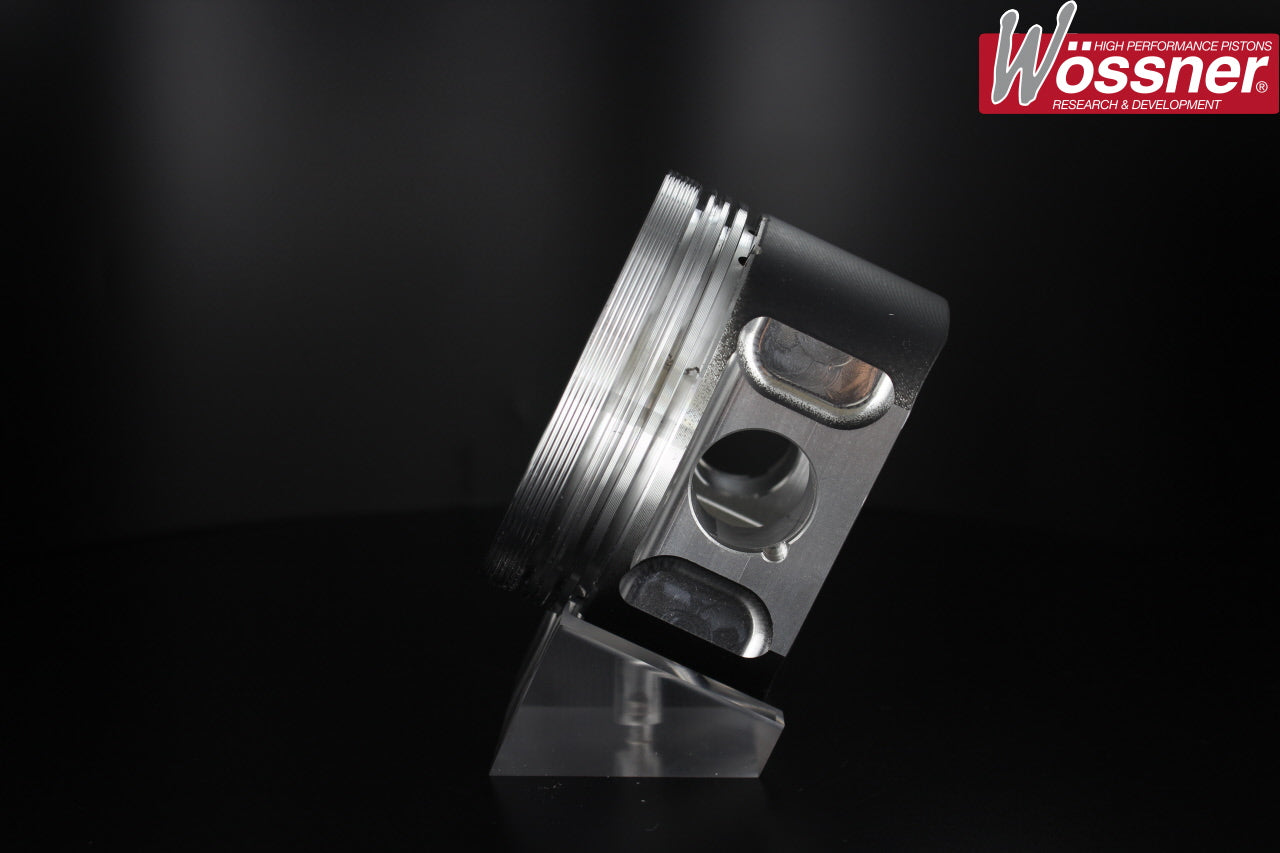

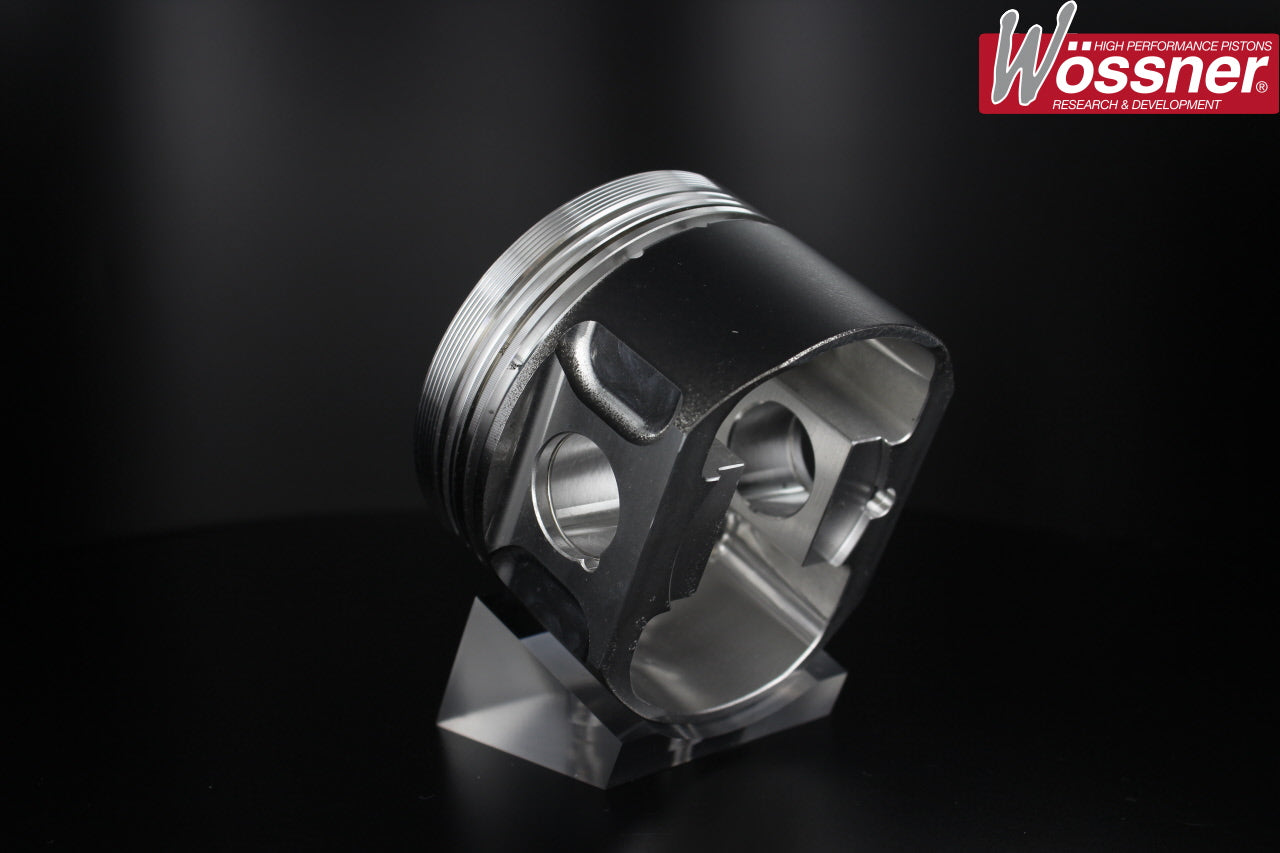

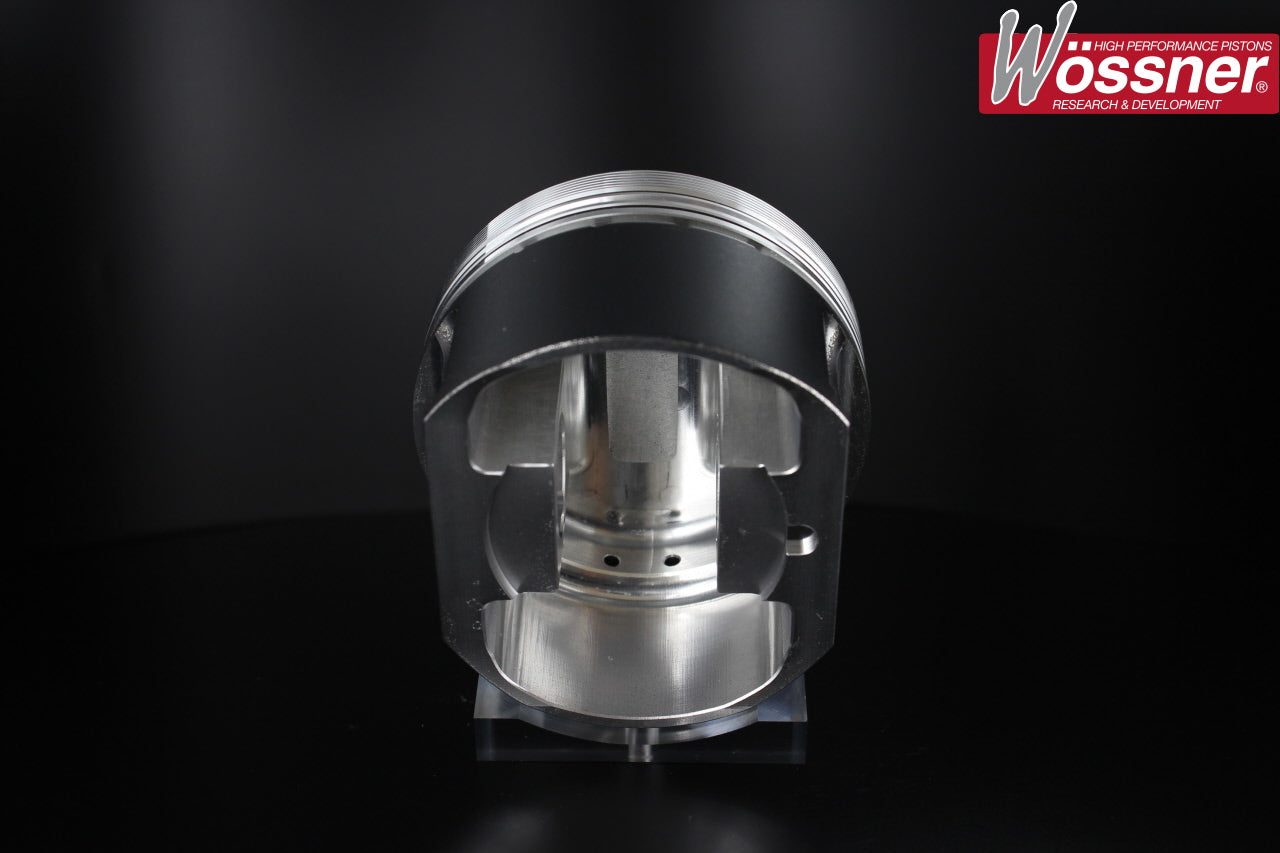

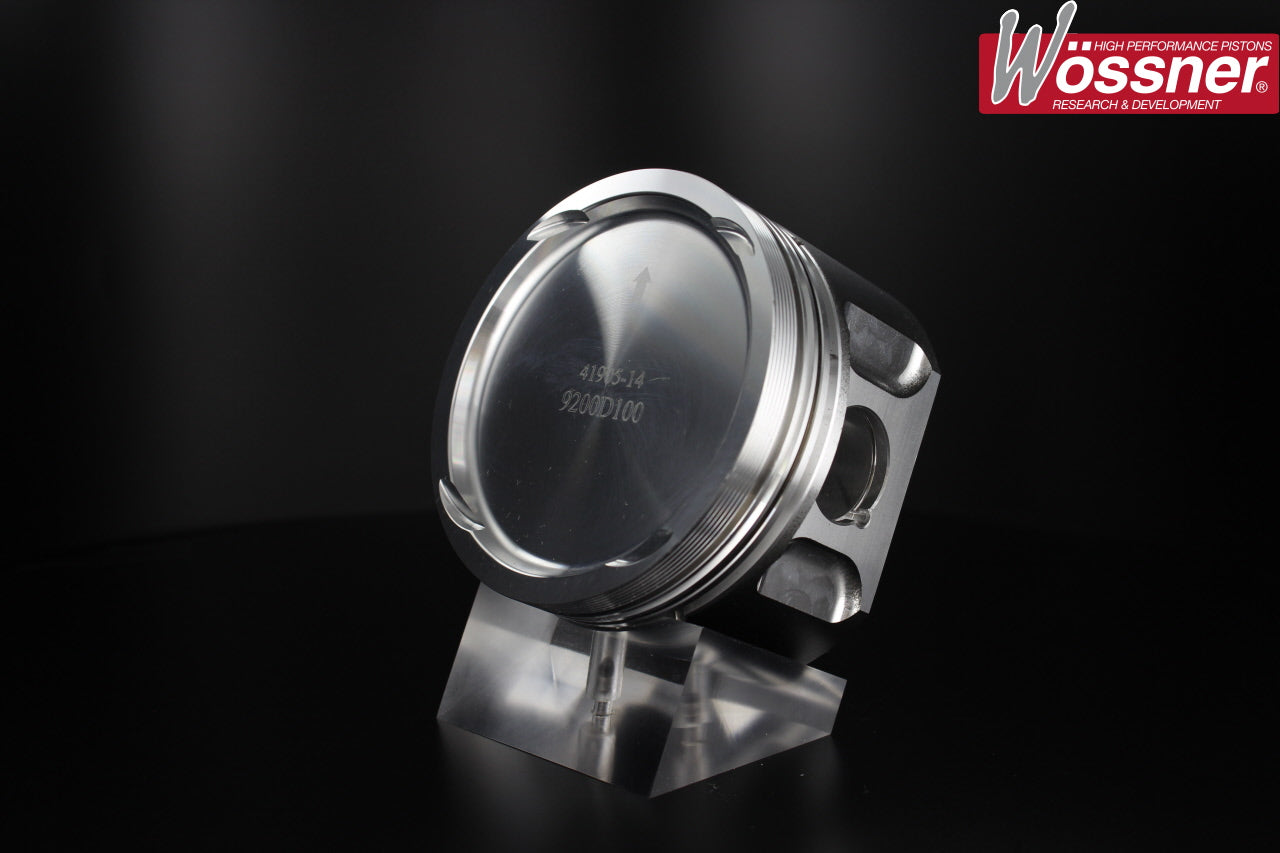

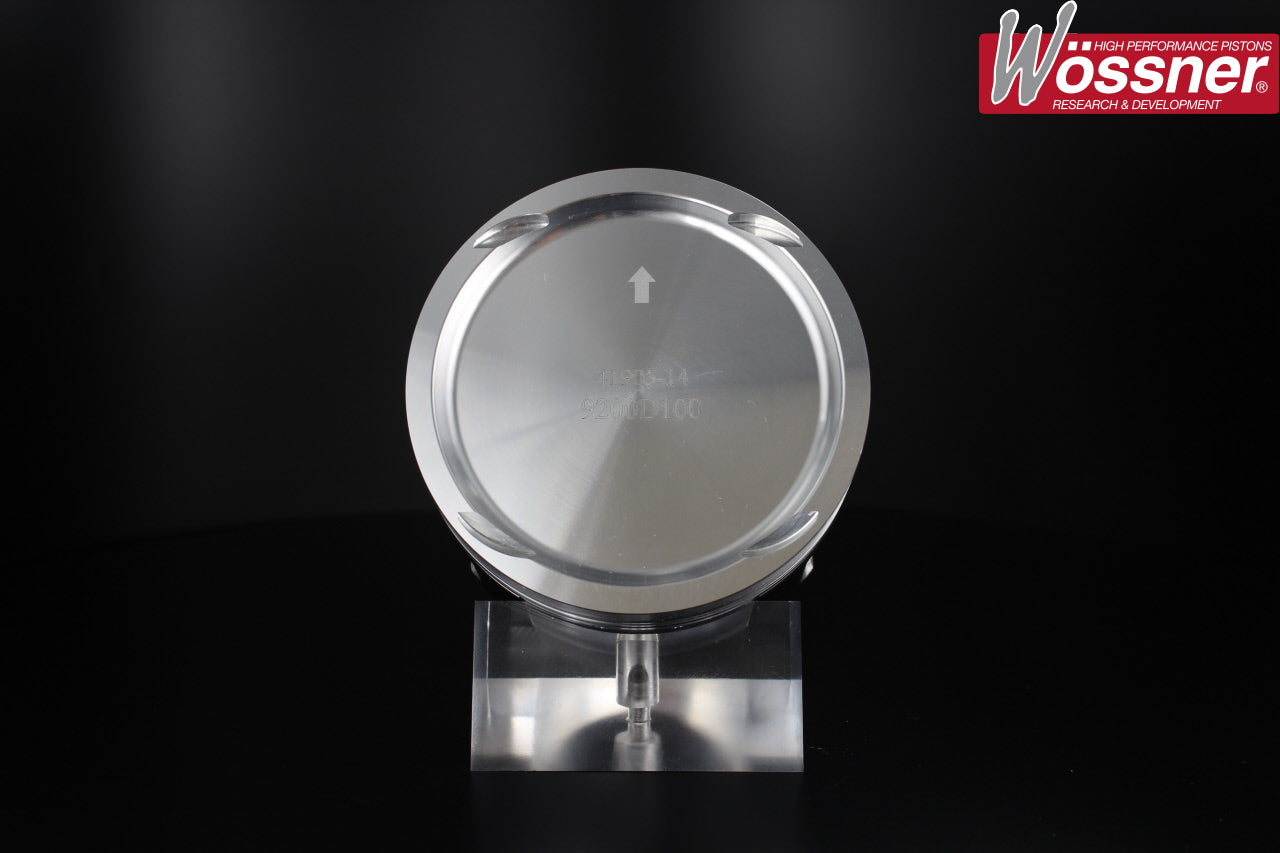

Clio & R19 1.8 16v Low Comp Forged Piston Kit.
Manufacturer kit reference: K9200
| Engine Code | F7P |
|---|---|
| YOM From | 1989 |
| YOM To | 1996 |
| Bore Size | 82.5mm , 82mm , 83mm |
| Stroke | 83.5mm |
| Compression Height | 35.5mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP092 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0015 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9200D100 | 82.93mm | 8.17:1 | 1806cc |
| K9200D050 | 82.43mm | 8.09:1 | 1785cc |
| K9200DA | 81.93mm | 8:1 | 1763cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
