£849.43

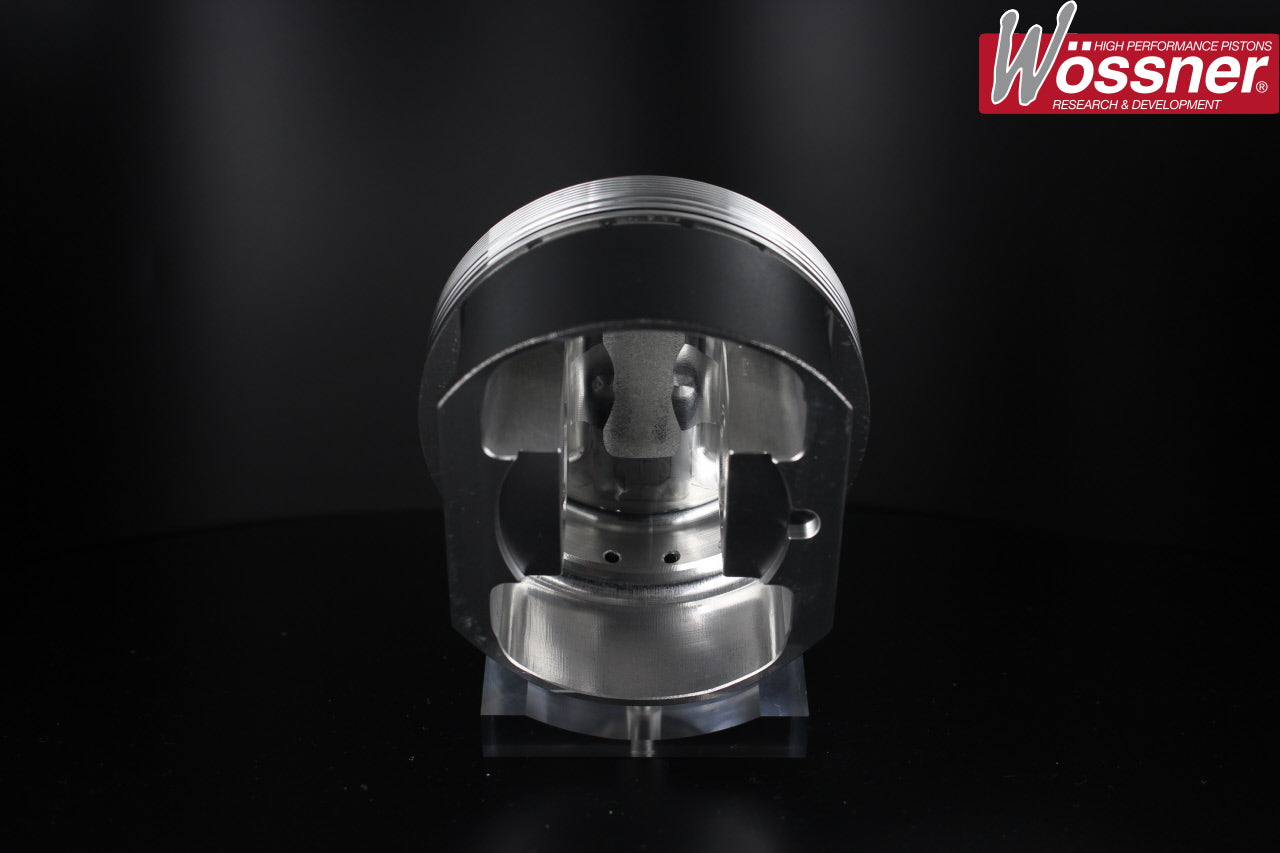

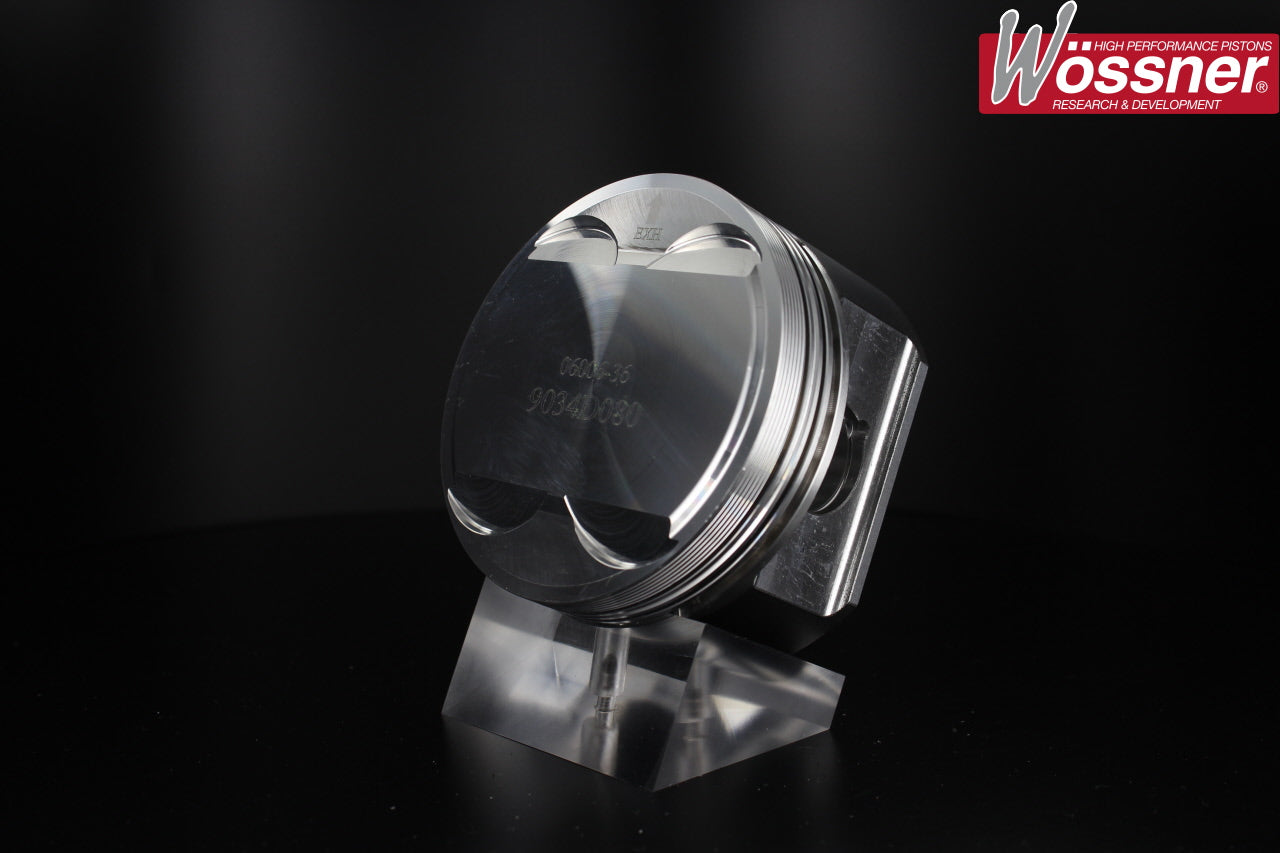

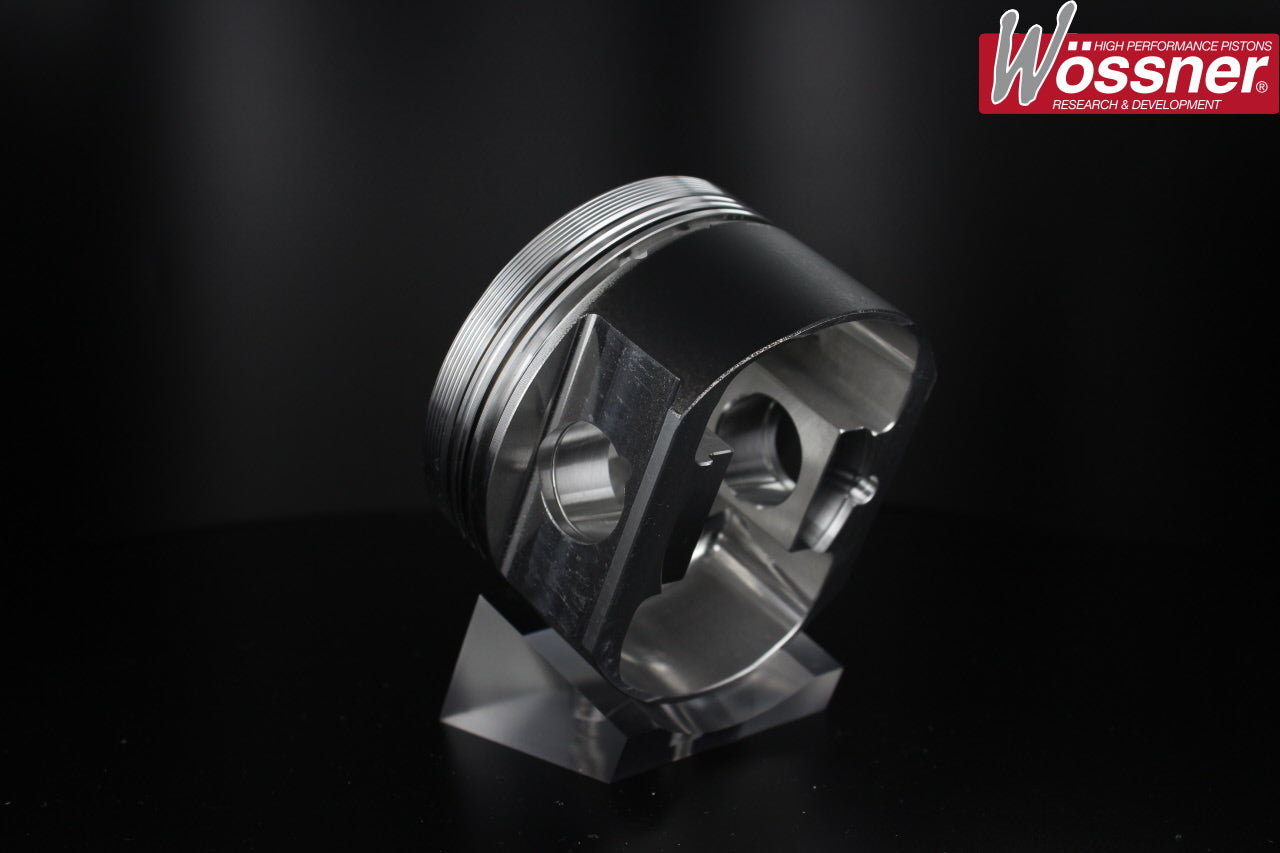

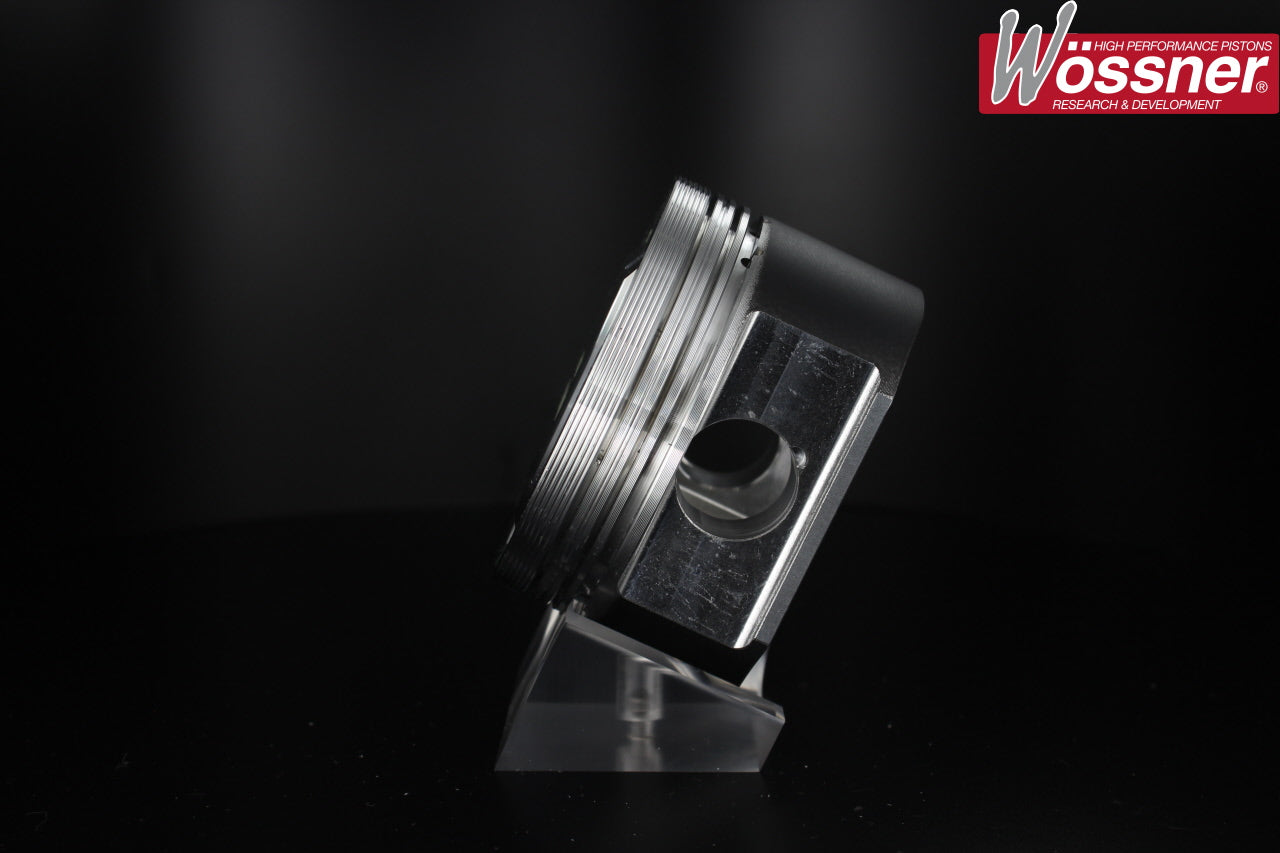

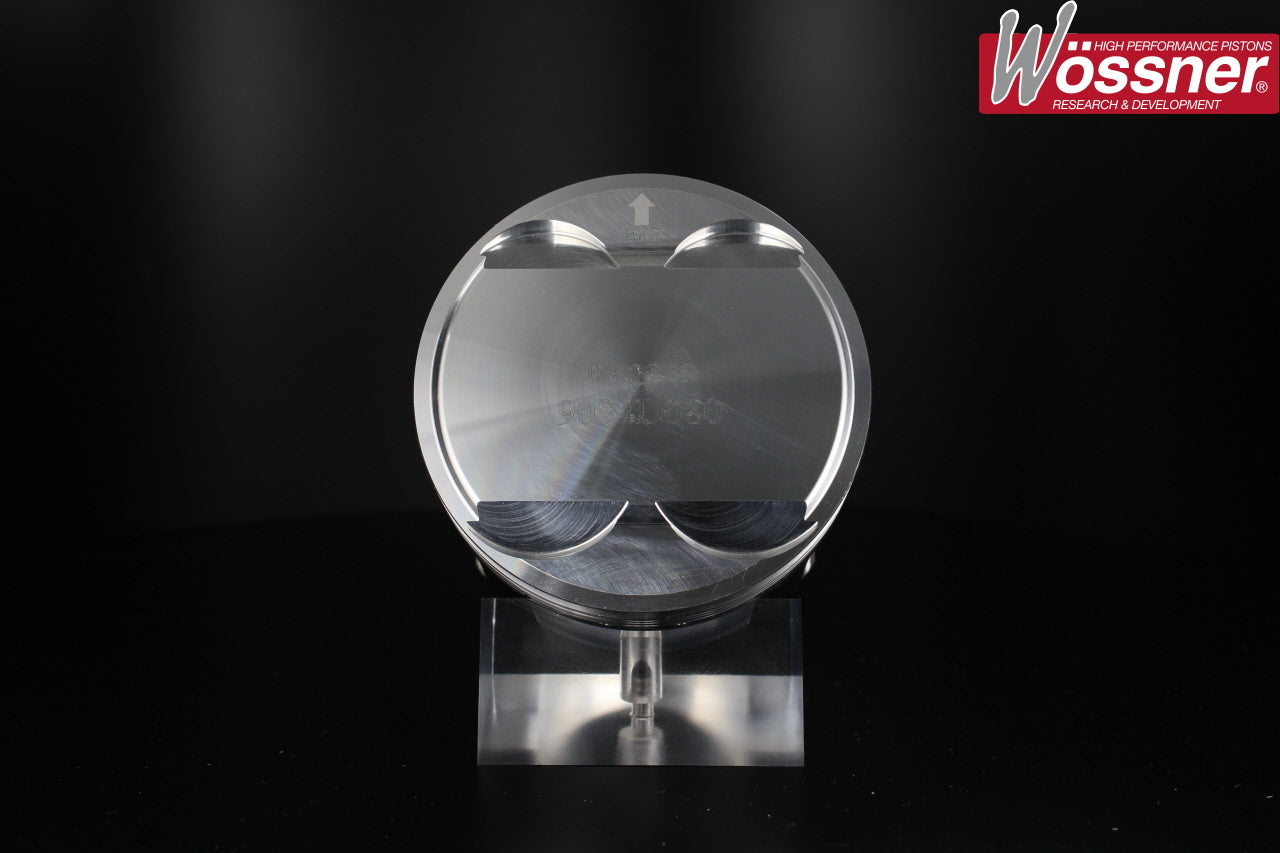

Clio Williams & Megane 2.0 16v Fast Road Comp Forged Piston Kit.
Manufacturer kit reference: K9034
| Engine Code | F7R |
|---|---|
| YOM From | 1994 |
| YOM To | 2003 |
| Bore Size | 82.7mm , 83.5mm , 83mm , 84mm |
| Stroke | 93mm |
| Compression Height | 30.7mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP034 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0015 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9034D030 | 82.92mm | 11.27:1 | 2012cc |
| K9034D080 | 83.42mm | 11.39:1 | 2036cc |
| K9034D130 | 83.92mm | 11.52:1 | 2061cc |
| K9034DA | 82.62mm | 11.2:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
