£849.43

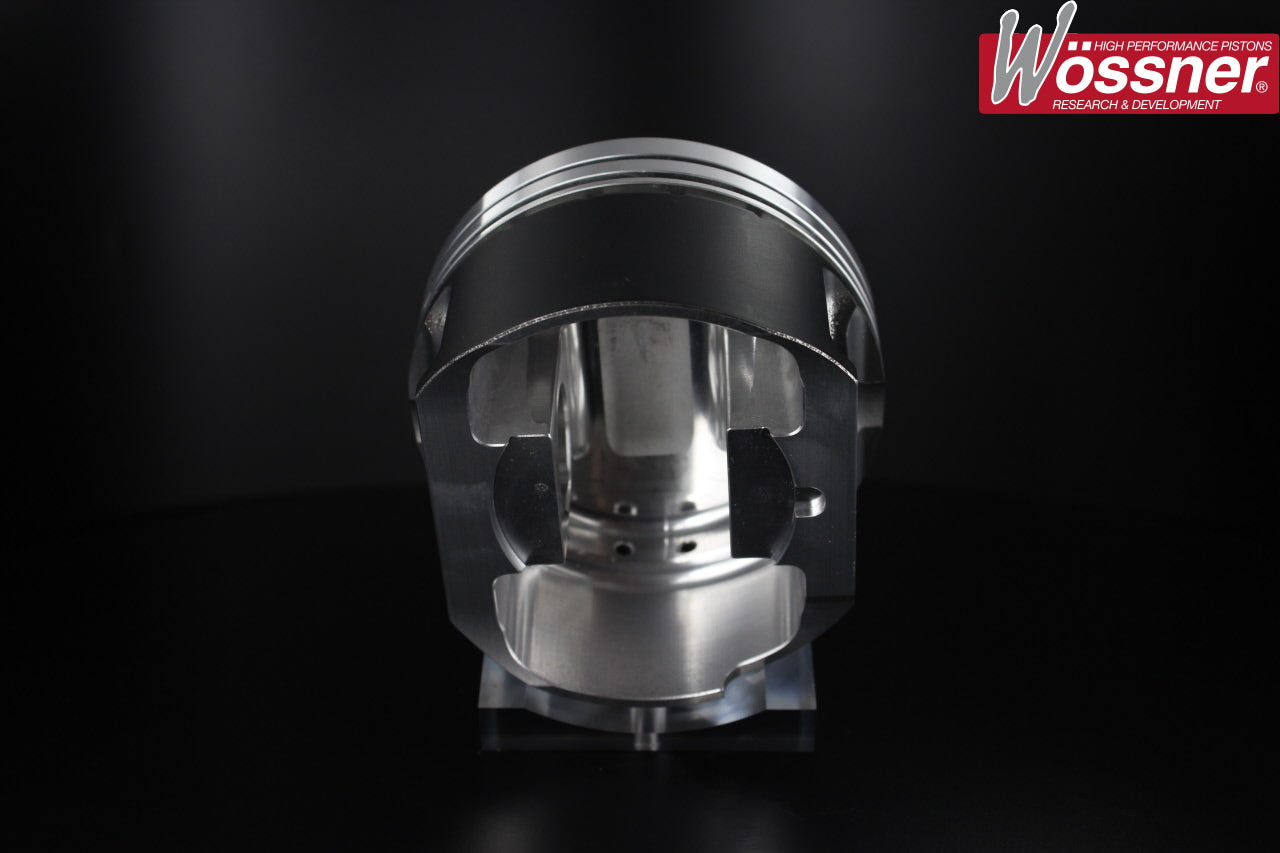

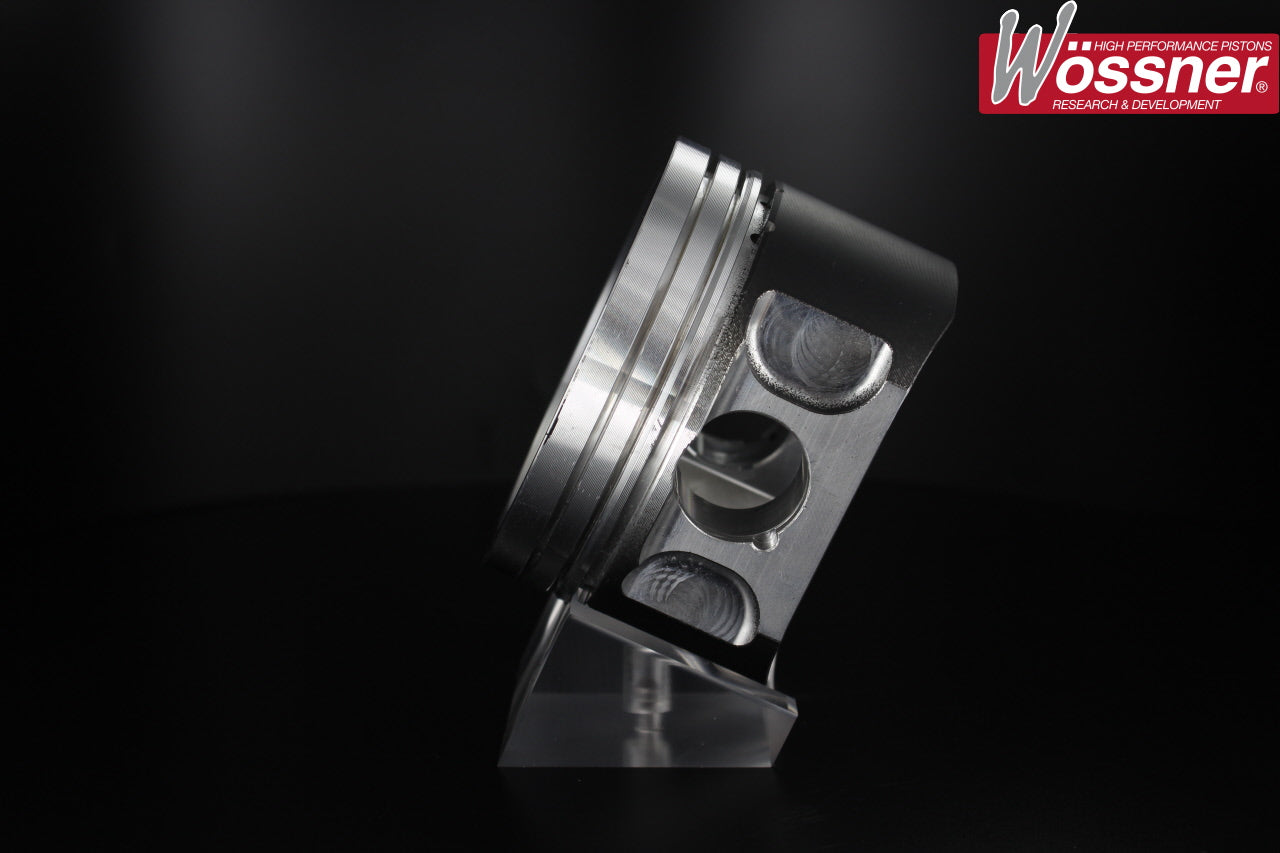

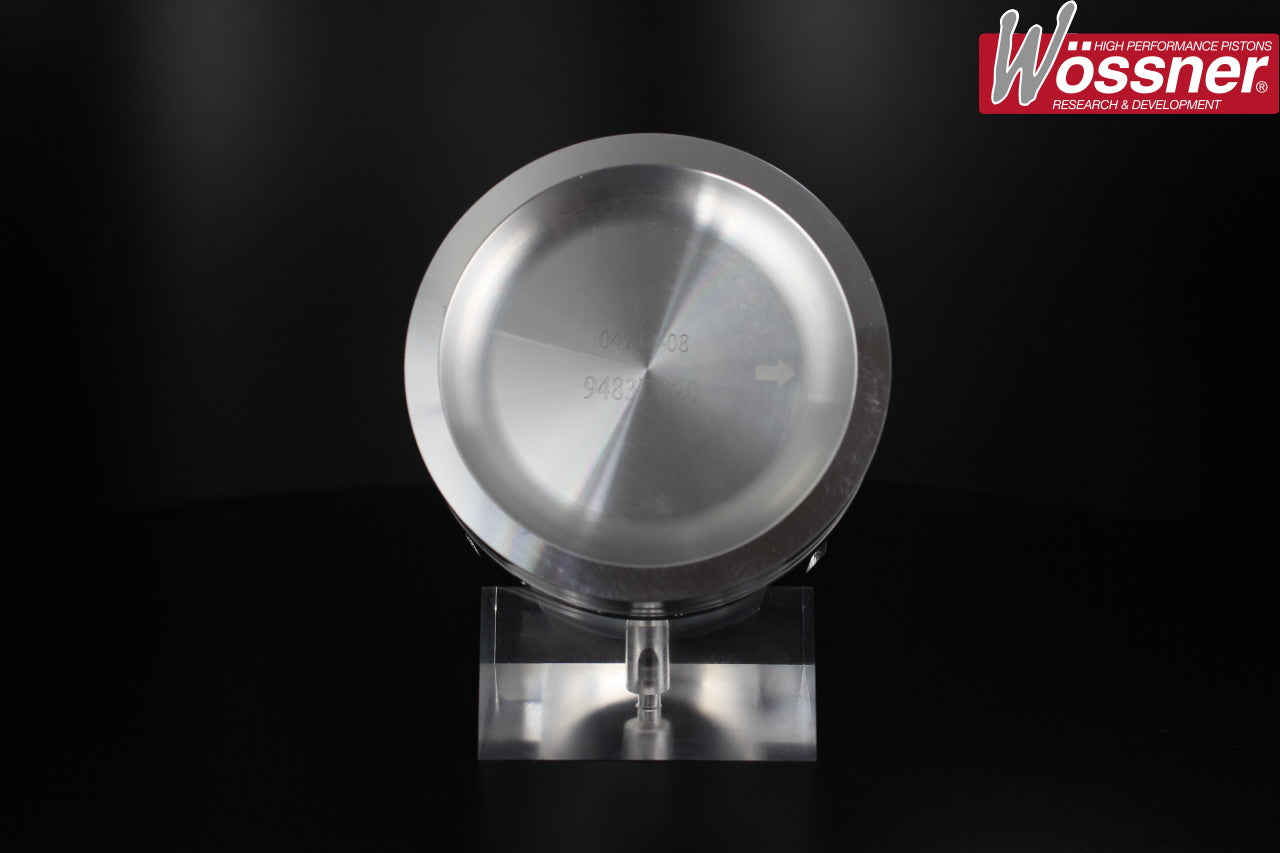

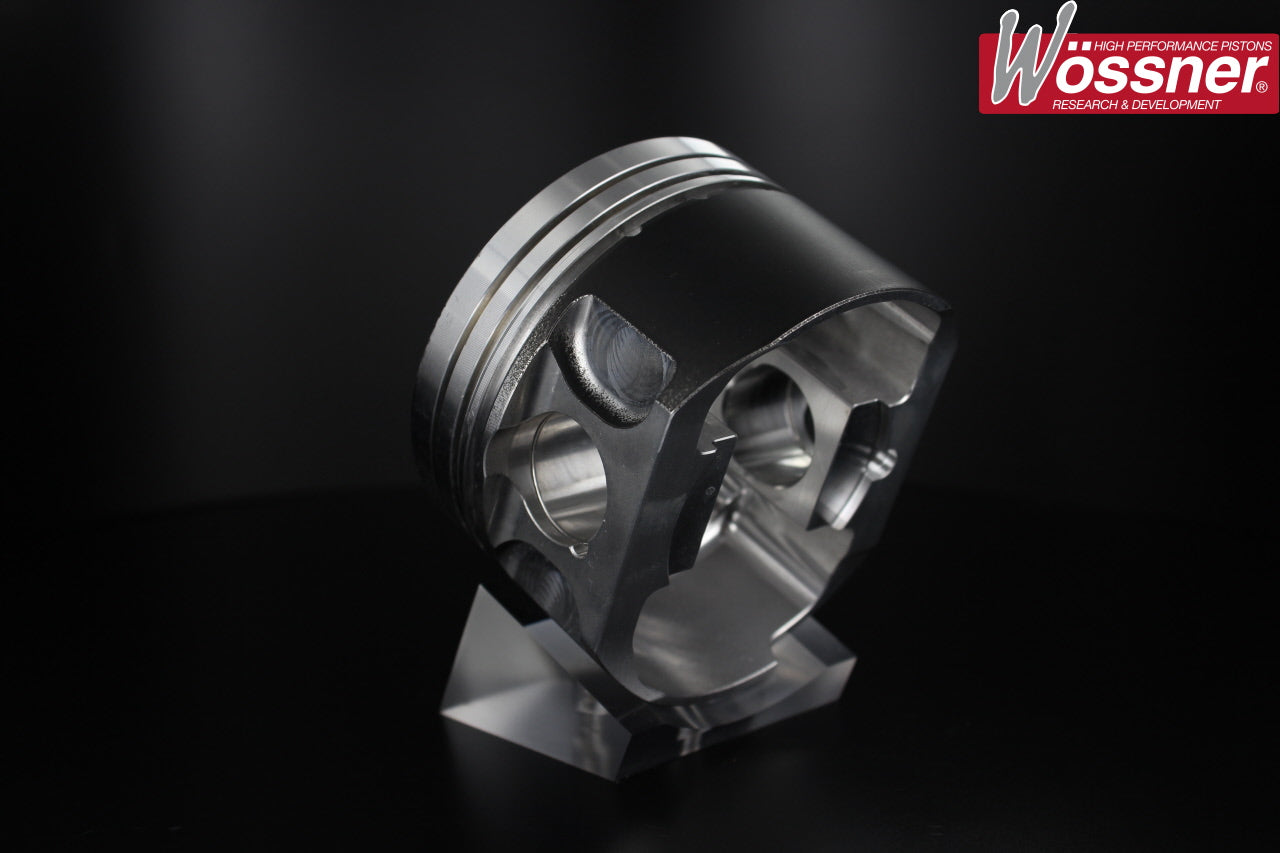

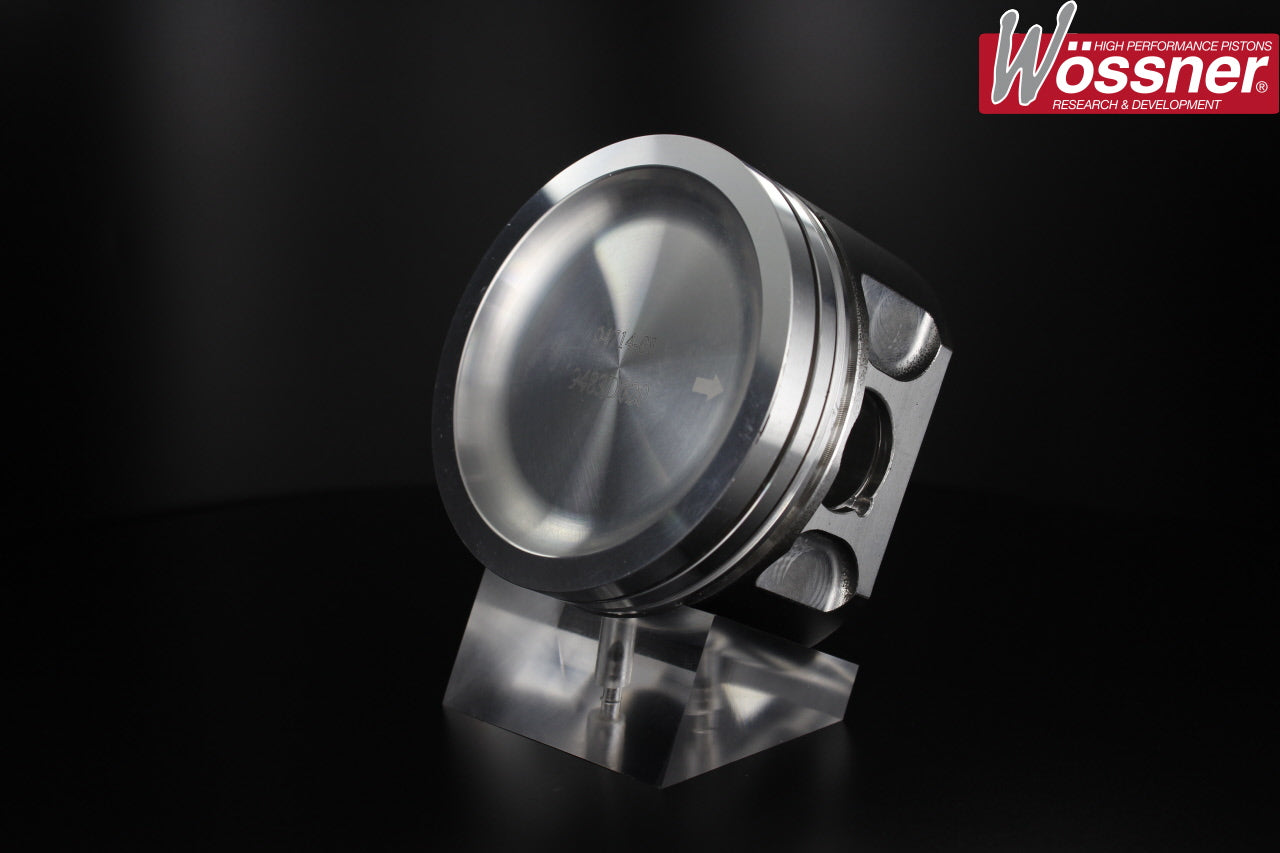

Focus RS Mk1 2.0 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9483
| Engine Code | HMDA |
|---|---|
| YOM From | 2002 |
| YOM To | 2002 |
| Bore Size | 84.8mm – K9483DA , 85.5mm – K9483D070 , 85mm – K9483D020 , 86mm – K9483D120 |
| Stroke | 88mm |
| Compression Height | 32mm |
| OEM Comp Ratio | 08:01 |
| Number of Rings | 3 |
| OEM Rod Length | 137mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP046 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0085 |
| Con Rod Length C/C | 137mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9483D020 | 84.93mm | 8.03:1 | 1997cc |
| K9483D070 | 85.43mm | 8.12:1 | 2020cc |
| K9483D120 | 85.93mm | 8.2:1 | 2044cc |
| K9483DA | 84.73mm | 8:1 | 1987cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
