£1,086.90

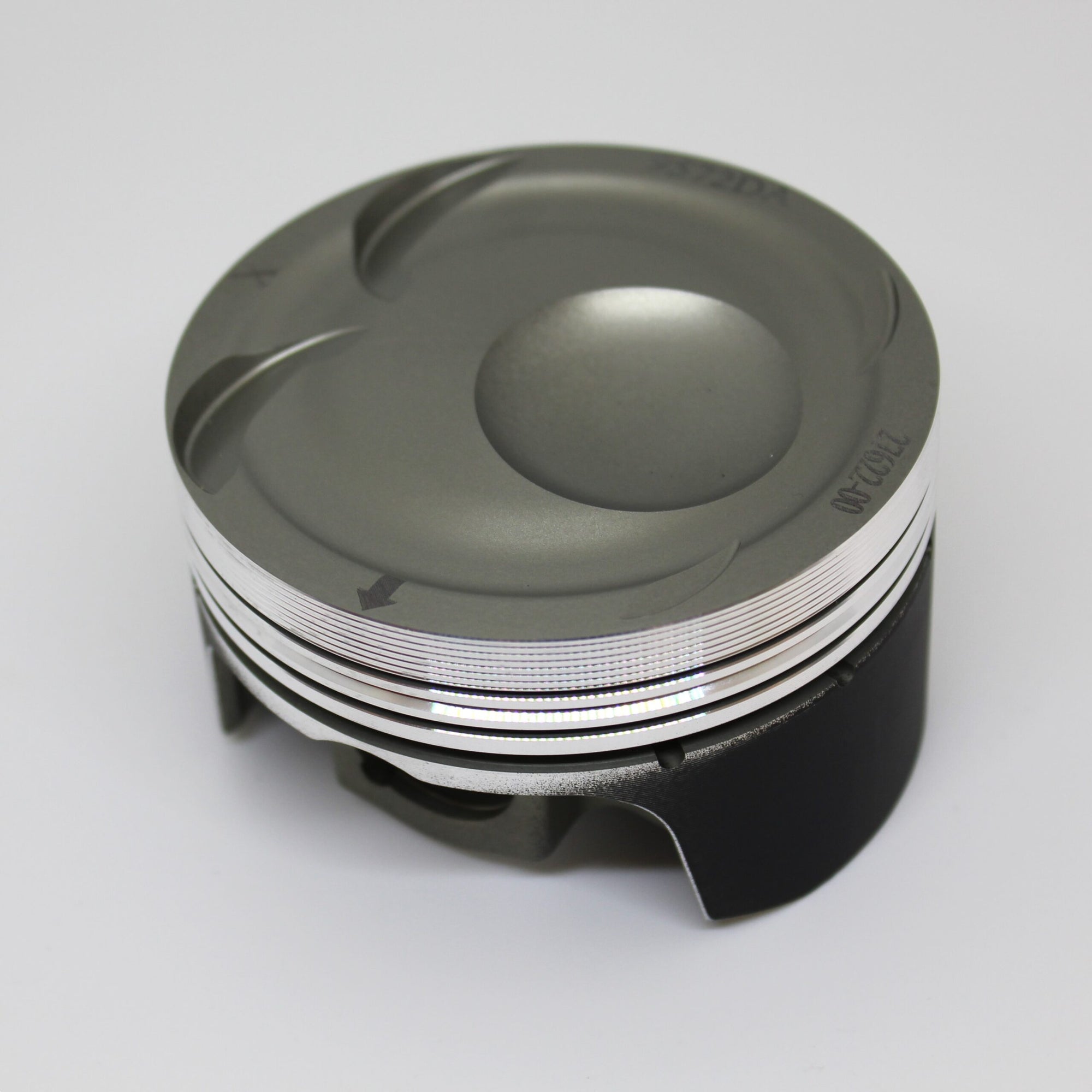

Focus RS & Mustang 2.3 16v Turbo 9.5:1 Eco-Boost Forged Piston Kit hard Anodised.
Manufacturer kit reference: K9572
| Engine Code | N38H |
|---|---|
| YOM From | 2015 |
| YOM To | current |
| Bore Size | 87.5mm – K9572DA , 88mm – K9572D050 |
| Stroke | 94mm |
| Compression Height | 32.8mm |
| OEM Comp Ratio | 9.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW23 |
| Pin Size | 22.5mm |
| Pin Part Number | WP120 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0309 |
| Con Rod Length C/C | 149.3mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9572D050 | 87.93mm | 9.6:1 | 2286cc |
| K9572DA | 87.43mm | 9.5:1 | 2260cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
