£849.43

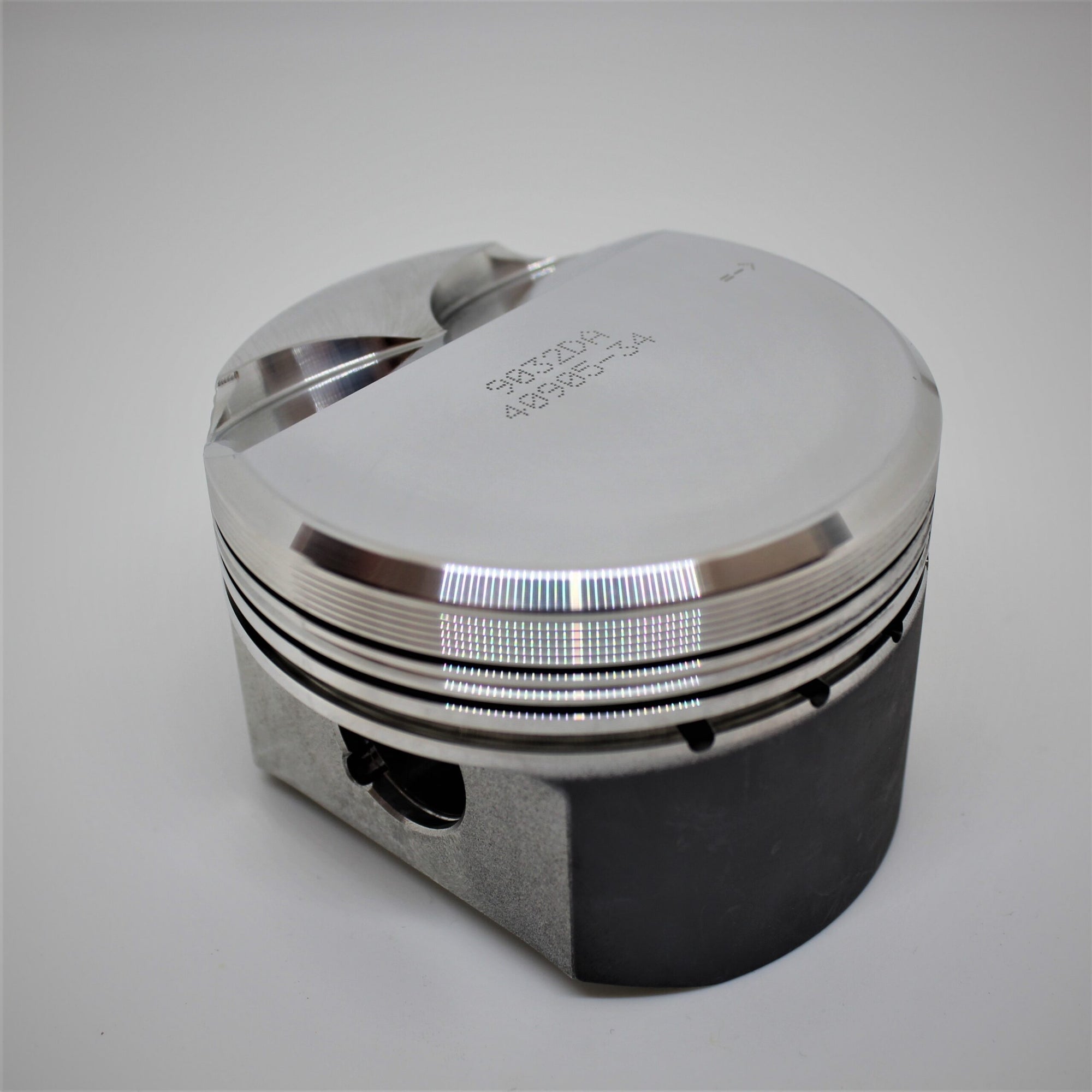

Golf Gti Mk3 2.0 16v (ABF) High Comp Forged Piston Kit.
Manufacturer kit reference: K9032
| Engine Code | ABF |
|---|---|
| YOM From | 1992 |
| YOM To | 1997 |
| Bore Size | 82.5mm , 82.7mm , 83.5mm , 83mm , 84mm |
| Stroke | 92.8mm |
| Compression Height | 31.6mm |
| OEM Comp Ratio | 10.4:1 |
| Number of Rings | 3 |
| OEM Rod Length | 159mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP034 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9032D020 | 82.63mm | 13.05:1 | 1993cc |
| K9032D050 | 82.93mm | 13.14:1 | 2008cc |
| K9032D100 | 83.43mm | 13.29:1 | 2032cc |
| K9032D150 | 83.93mm | 13.44:1 | 2056cc |
| K9032DA | 82.43mm | 13:1 | 1983cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
