£1,337.74

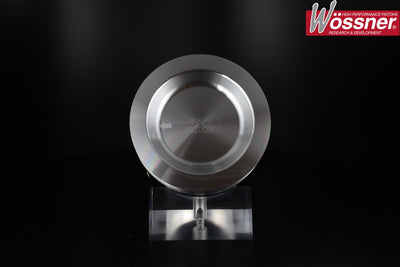

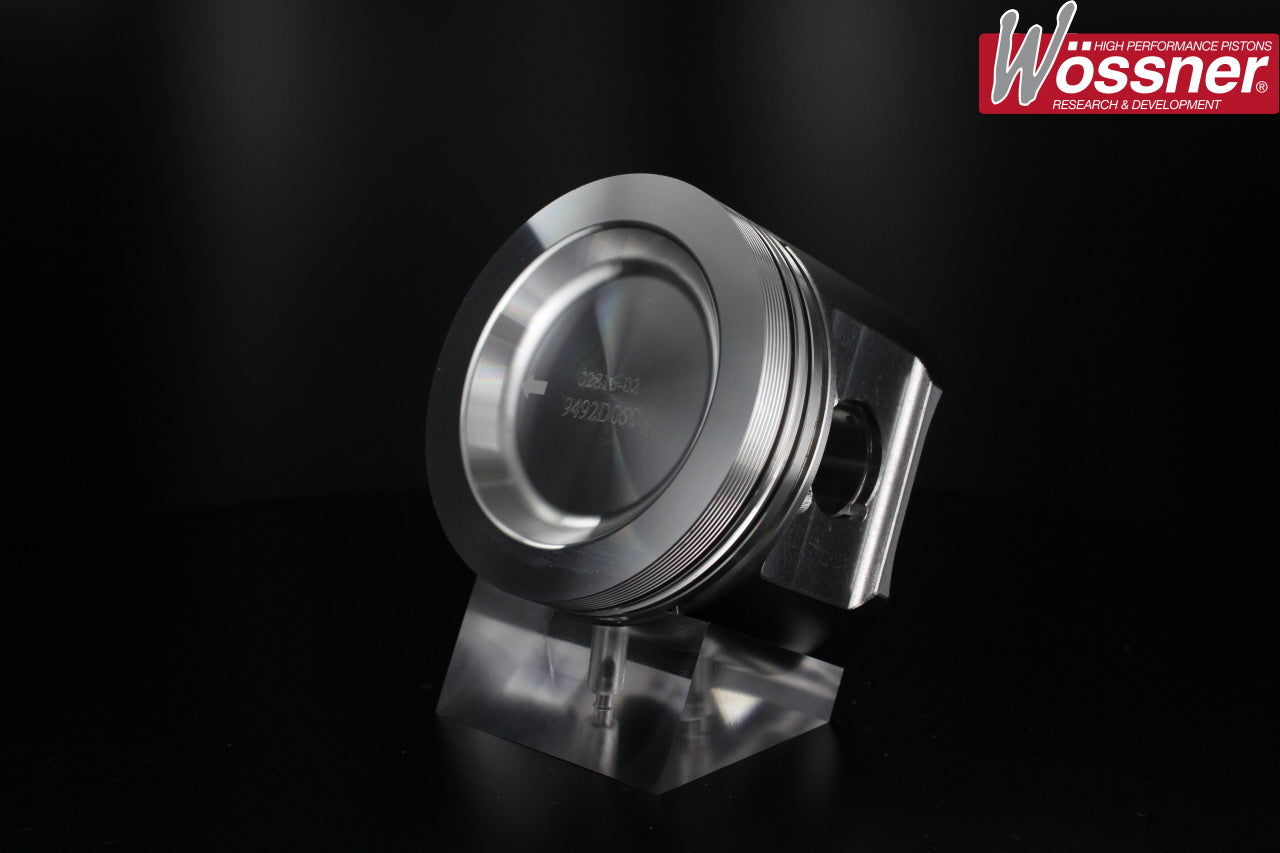

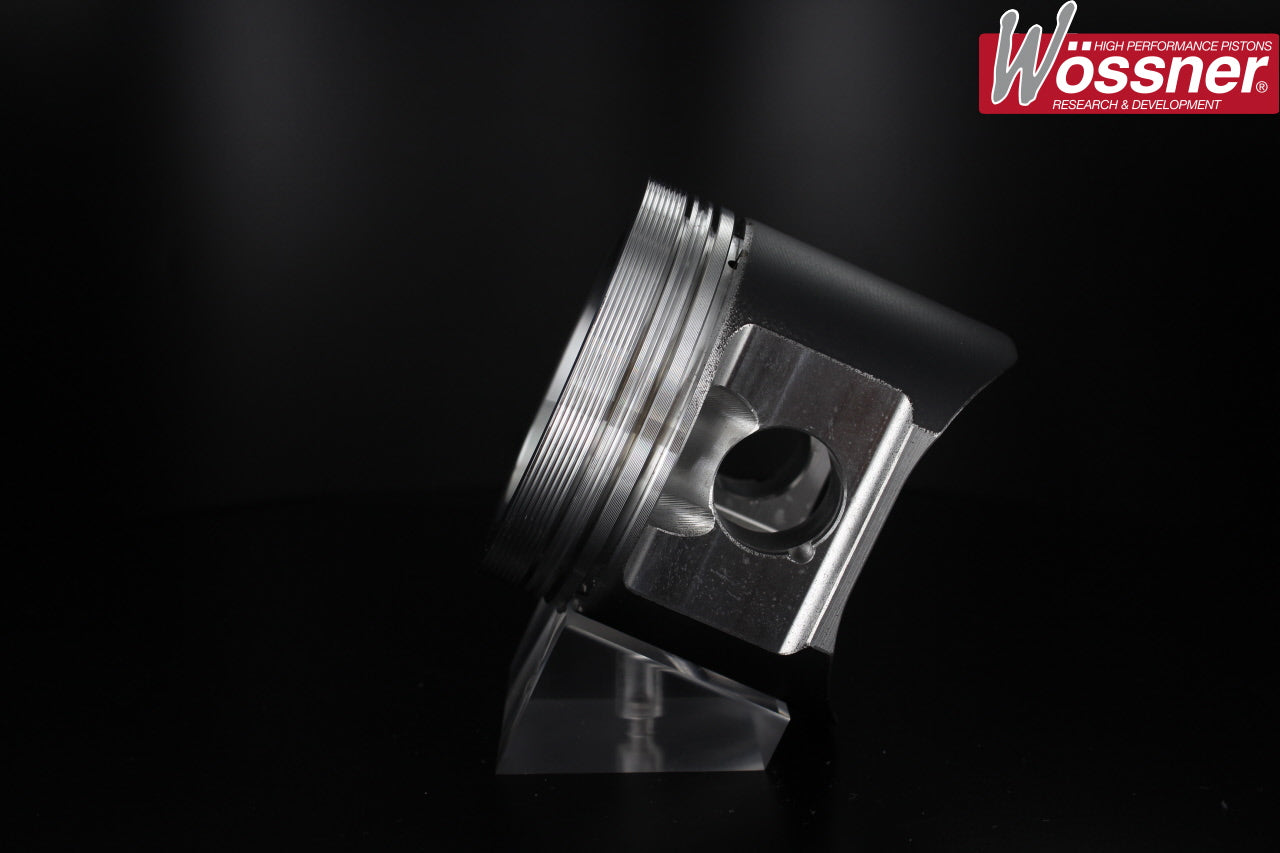

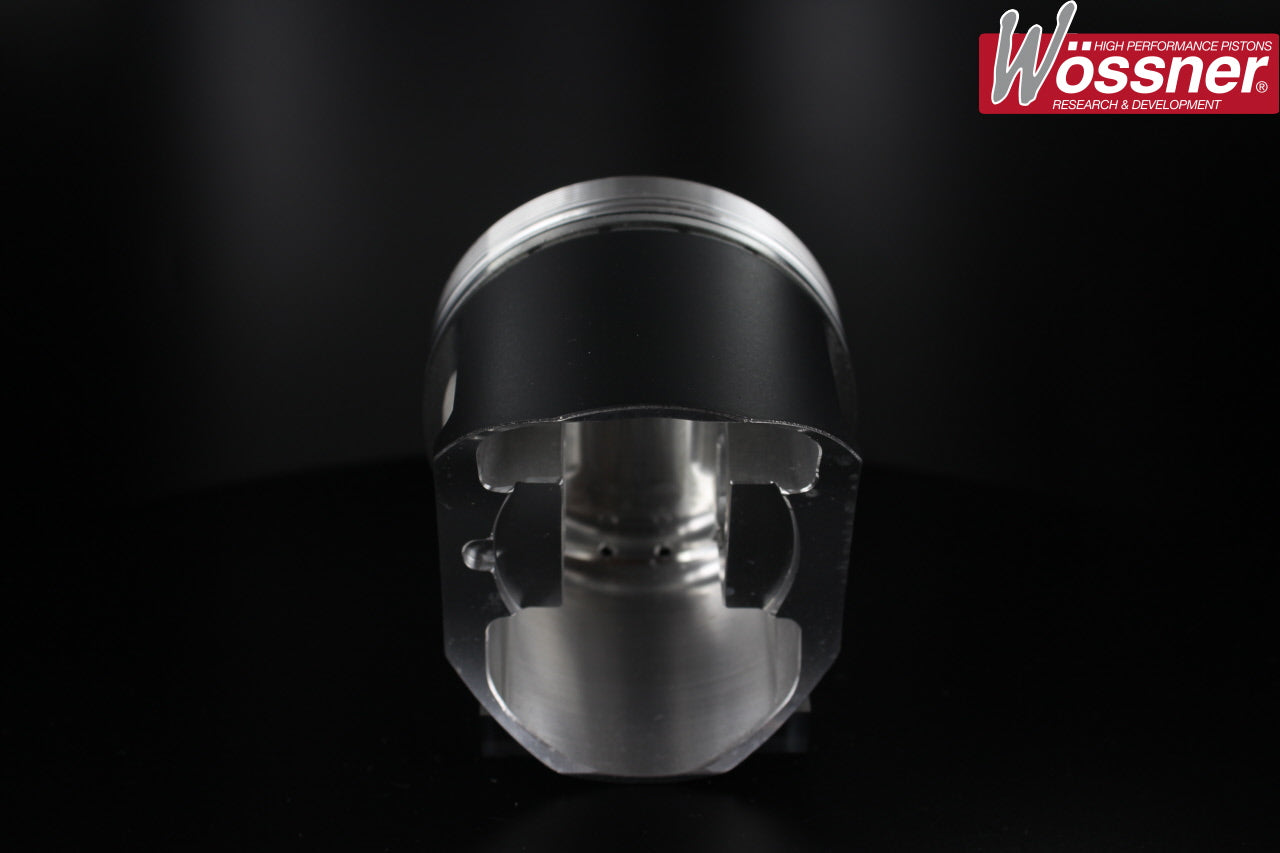

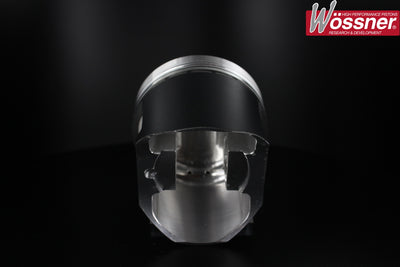

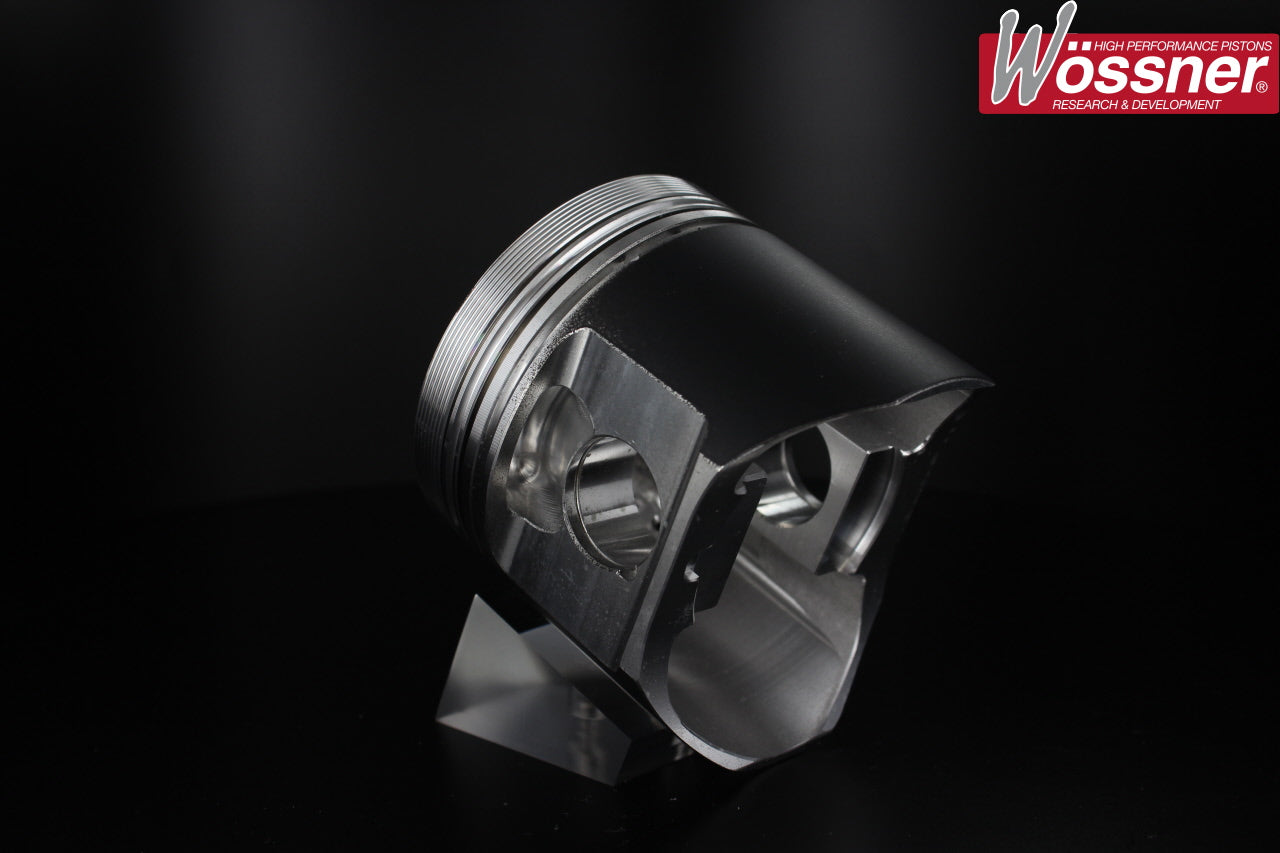

Golf Gti Mk1 1.6L 8V Forged Piston & H-Beam Steel Con Rod Package.
Manufacturer kit reference: K9492/G0355
| Engine Code | EG |
|---|---|
| YOM From | 1979 |
| YOM To | 1982 |
| Bore Size | 80.5mm – K9492D100 , 80mm – K9492D050 , 81mm – K9492D150 |
| Stroke | 80mm |
| Compression Height | 40.4mm |
| OEM Comp Ratio | 9.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 136mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0355 |
| Con Rod Length C/C | 136mm |
| Engine Code | CAW , CBF , CCT. CCZ |
|---|---|
| Con Rod Length C/C | 136mm |
| Con Rod Big End Dia | 49mm |
| Con Rod Big End Width | 24.95mm |
| Con Rod Small End Dia | 22mm |
| Con Rod Small End Width | 24.95mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9492D050 | 79.93mm | 9.6:1 | 1608cc |
| K9492D100 | 80.43mm | 9.6:1 | 1628cc |
| K9492D150 | 80.93mm | 9.6:1 | 1648cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
