£892.21

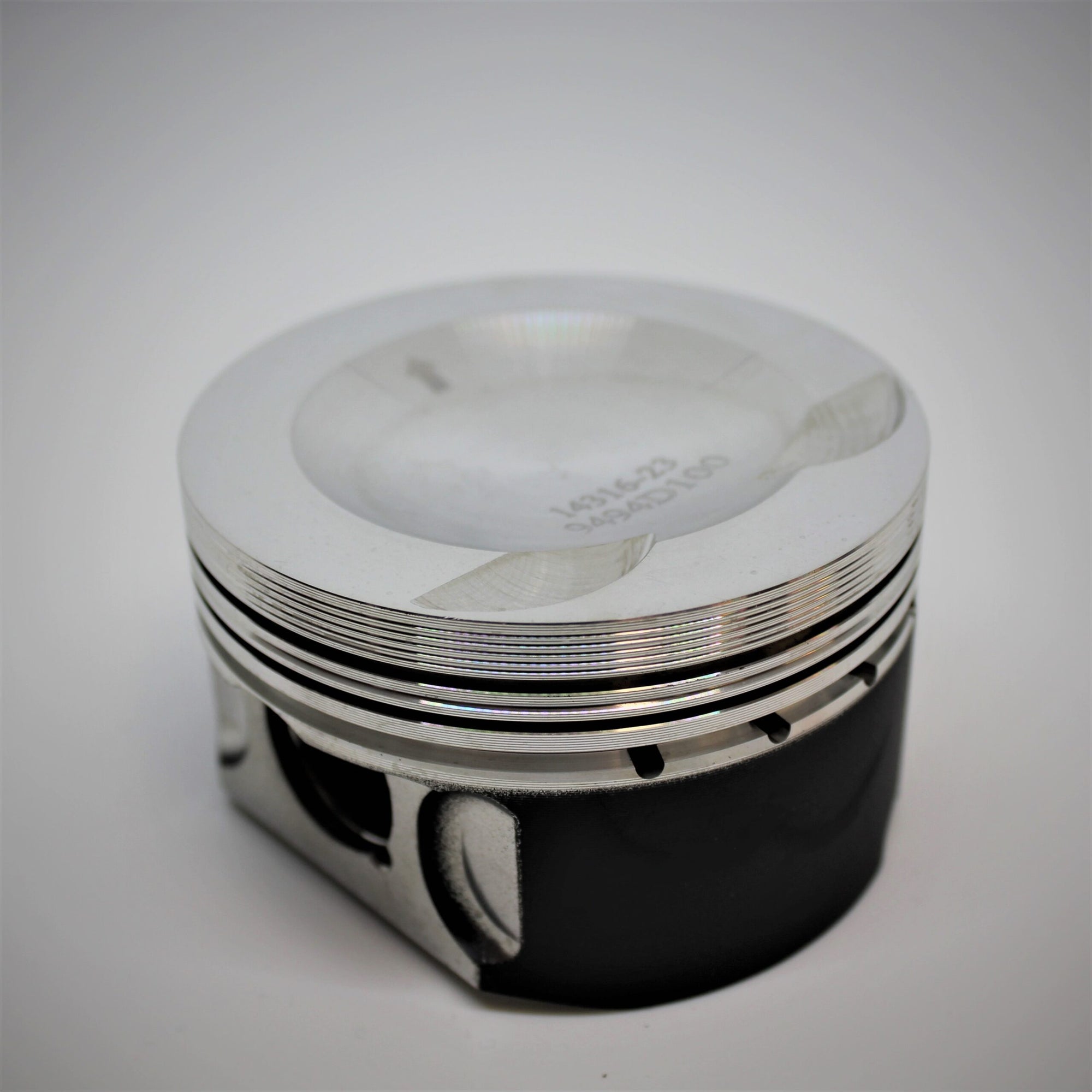

Golf R 2.0 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9494
| Engine Code | CCTA / CCZA / CCZB / CBF / CAEB / CAEA / CDNC / CJXC / CCHA / CHHB 2012> |
|---|---|
| YOM From | 2012 |
| YOM To | 2020 |
| Bore Size | 82.5mm – K9494DA , 83.5mm – K9494D100 , 83mm – K9494D050 |
| Stroke | 92.8mm |
| Compression Height | 29.6mm |
| OEM Comp Ratio | 9.6:1 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW23 |
| Pin Size | 23mm |
| Pin Part Number | WP094DLC |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0331 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9494D050 | 82.93mm | 9.6:1 | 2008cc |
| K9494D100 | 83.43mm | 9.7:1 | 2032cc |
| K9494DA | 82.43mm | 9.5:1 | 1983cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
