£1,337.74

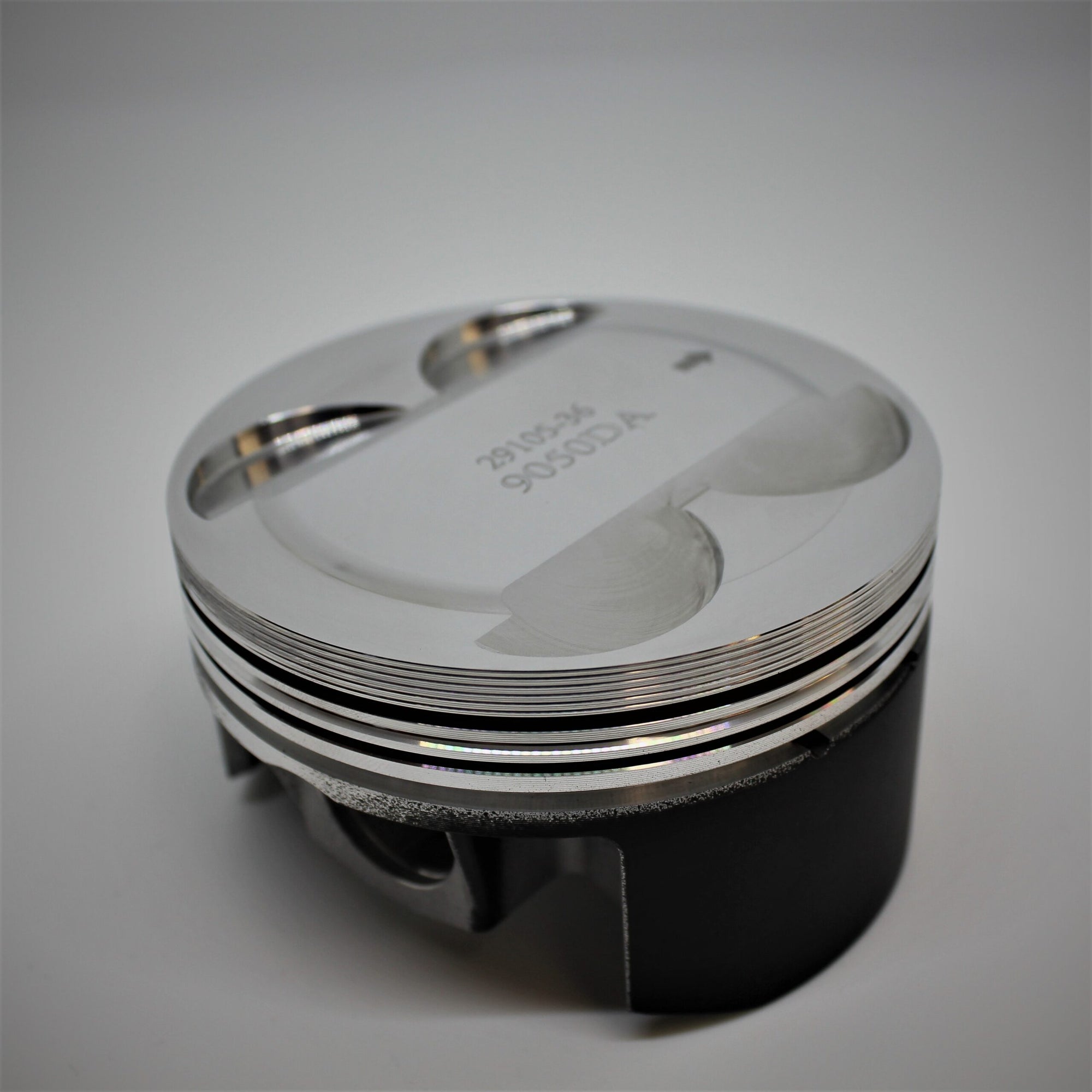

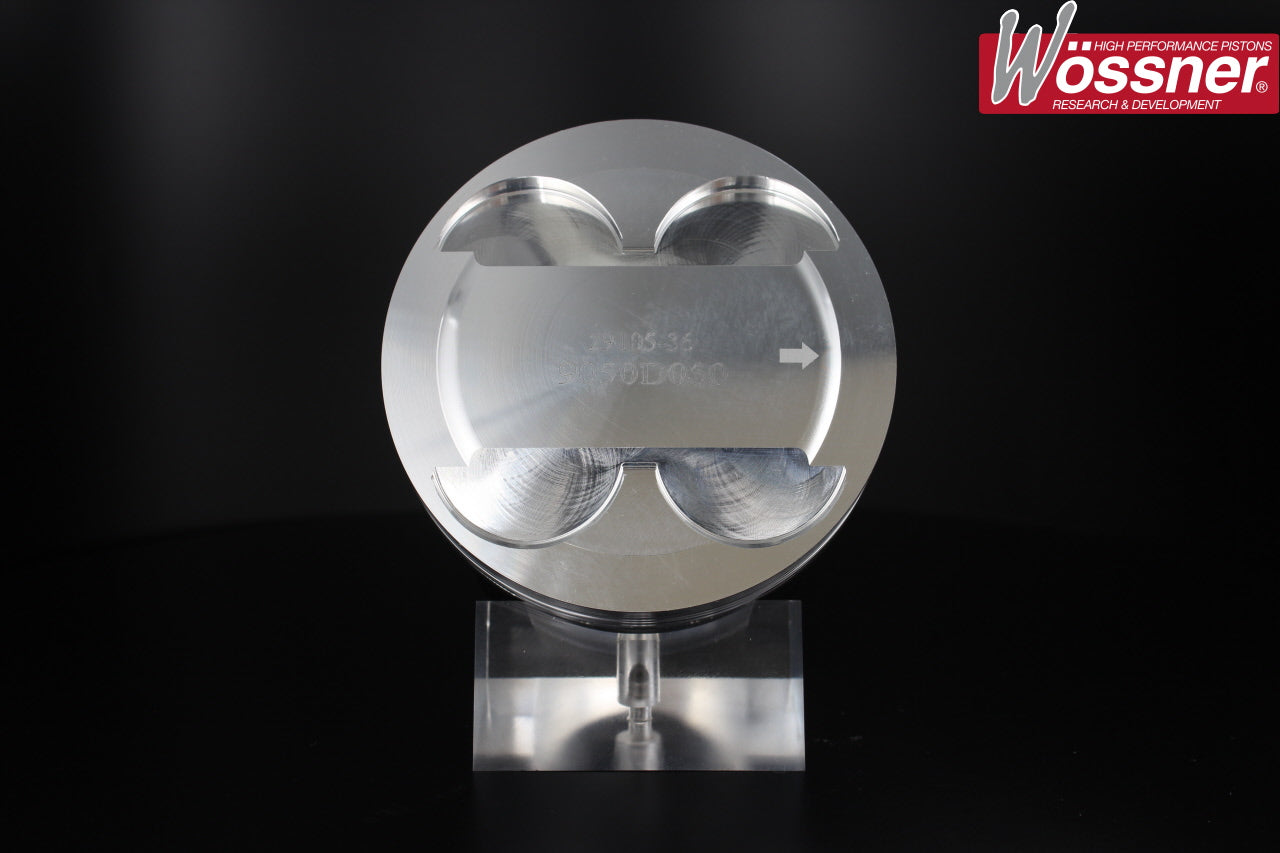

Impreza WRX STI Ver 7-8 9:1 Forged Piston & H-Beam Steel Con Rod Package.
Manufacturer kit reference: K9050/G0012
| Engine Code | EJ205 |
|---|---|
| YOM From | 2000 |
| YOM To | 2003 |
| Bore Size | 92.5mm , 92mm , 93mm |
| Stroke | 75mm |
| Compression Height | 31.4mm |
| OEM Comp Ratio | 8.1:1 |
| Number of Rings | 3 |
| OEM Rod Length | 130.5mm |
| Clip Part Number | CA23 |
| Pin Size | 23mm |
| Pin Part Number | WP094 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0012 |
| Con Rod Length C/C | 130.5mm |
| Engine Code | EJ20 & EJ25 |
|---|---|
| Con Rod Length C/C | 130.5mm |
| Con Rod Big End Dia | 55mm |
| Con Rod Big End Width | 21.425mm |
| Con Rod Small End Dia | 23mm |
| Con Rod Small End Width | 15.50mm T |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9050D050 | 92.42mm | 9.09:1 | 2015cc |
| K9050D100 | 92.92mm | 9.17:1 | 2037cc |
| K9050DA | 91.92mm | 9:1 | 1993cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
