Wossner Impreza WRX STI Ver 9 2003 9:1 Forged Piston & I-Beam Steel Con Rod Package (K9457/G0330)

Wossner Pistons

Wossner Impreza WRX STI Ver 9 2003 9:1 Forged Piston & I-Beam Steel Con Rod Package (K9457/G0330)

£1,337.74

Impreza WRX STI Ver 9 2003 9:1 Forged Piston & I-Beam Steel Con Rod Package.

Manufacturer kit reference: K9457/G0330

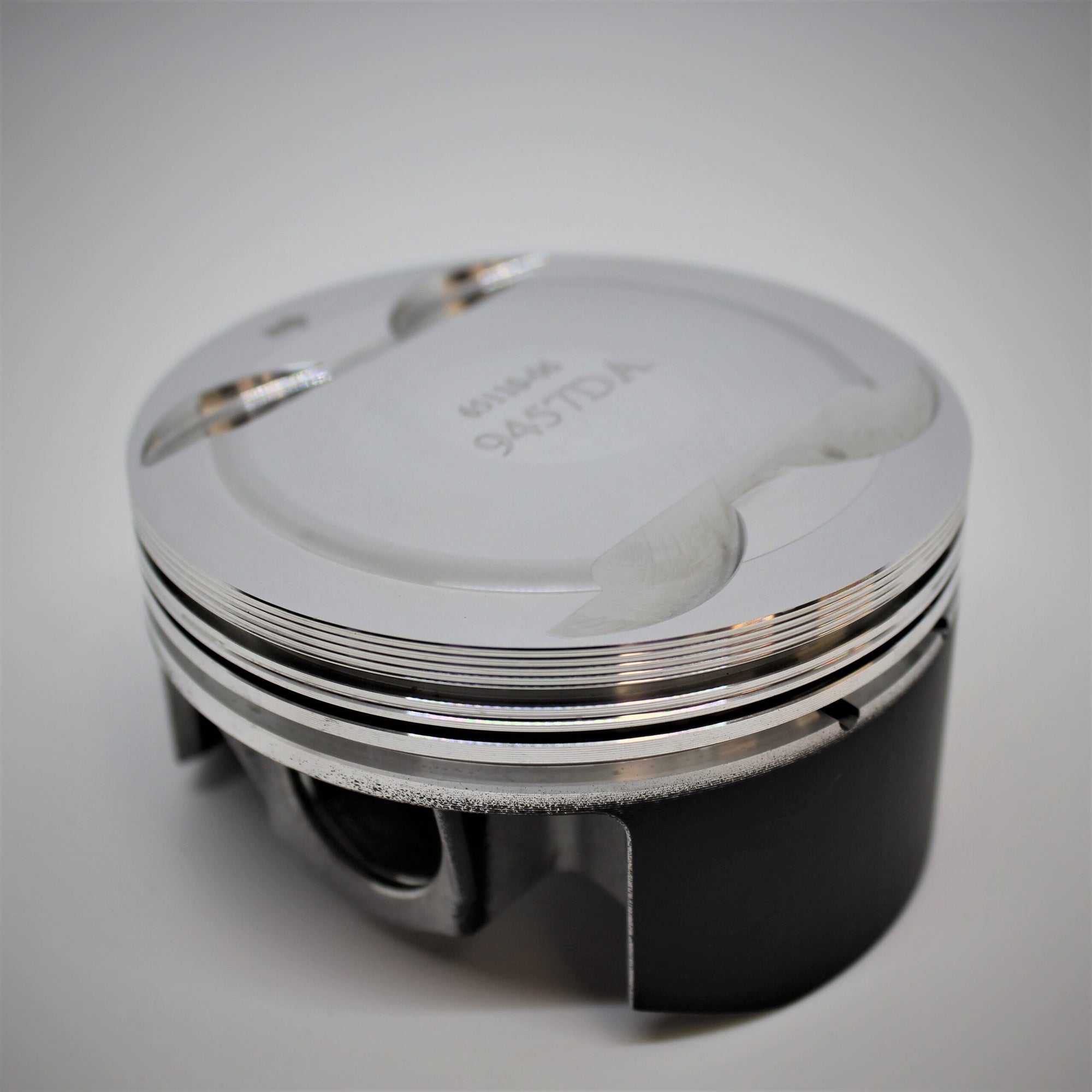

Impreza WRX STI Ver 9 2003 9:1 Forged Piston Kit

Engine Code	EJ205
YOM From	2003
YOM To	2007
Bore Size	92.5mm – K9457D050 , 92mm – K9457DA , 93mm – K9457D100
Stroke	75mm
Compression Height	31.5mm
OEM Comp Ratio	08:01
Number of Rings	3
OEM Rod Length	130.5mm
Clip Part Number	CA23
Pin Size	23mm
Pin Part Number	WP094
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0012
Con Rod Length C/C	130.5mm

Subaru EJ 2.0 2.2 & 2.5 Turbo 16v Engines I-Beam Connecting rods

Engine Code	EJ20 & EJ25
Con Rod Length C/C	130.5mm
Con Rod Big End Dia	55mm
Con Rod Big End Width	21.425mm
Con Rod Small End Dia	23mm
Con Rod Small End Width	15.50mm T
Con Rod Bolt	3/8"

Kit contents

Impreza WRX STI Ver 9 2003 9:1 Forged Piston Kit
Subaru EJ 2.0 2.2 & 2.5 Turbo 16v Engines I-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9457D050	92.43mm	9.09:1	2015cc
K9457D100	92.93mm	9.17:1	2037cc
K9457DA	91.93mm	9:1	1993cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
