Wossner Mazdaspeed 3 & 6 MPS 2.3 16v Turbo Forged Piston & H-Beam Steel Con Rod Package (K9526/G0358)

Wossner Pistons

Wossner Mazdaspeed 3 & 6 MPS 2.3 16v Turbo Forged Piston & H-Beam Steel Con Rod Package (K9526/G0358)

£1,337.74

Mazdaspeed 3 & 6 MPS 2.3 16v Turbo Forged Piston & H-Beam Steel Con Rod Package.

Manufacturer kit reference: K9526/G0358

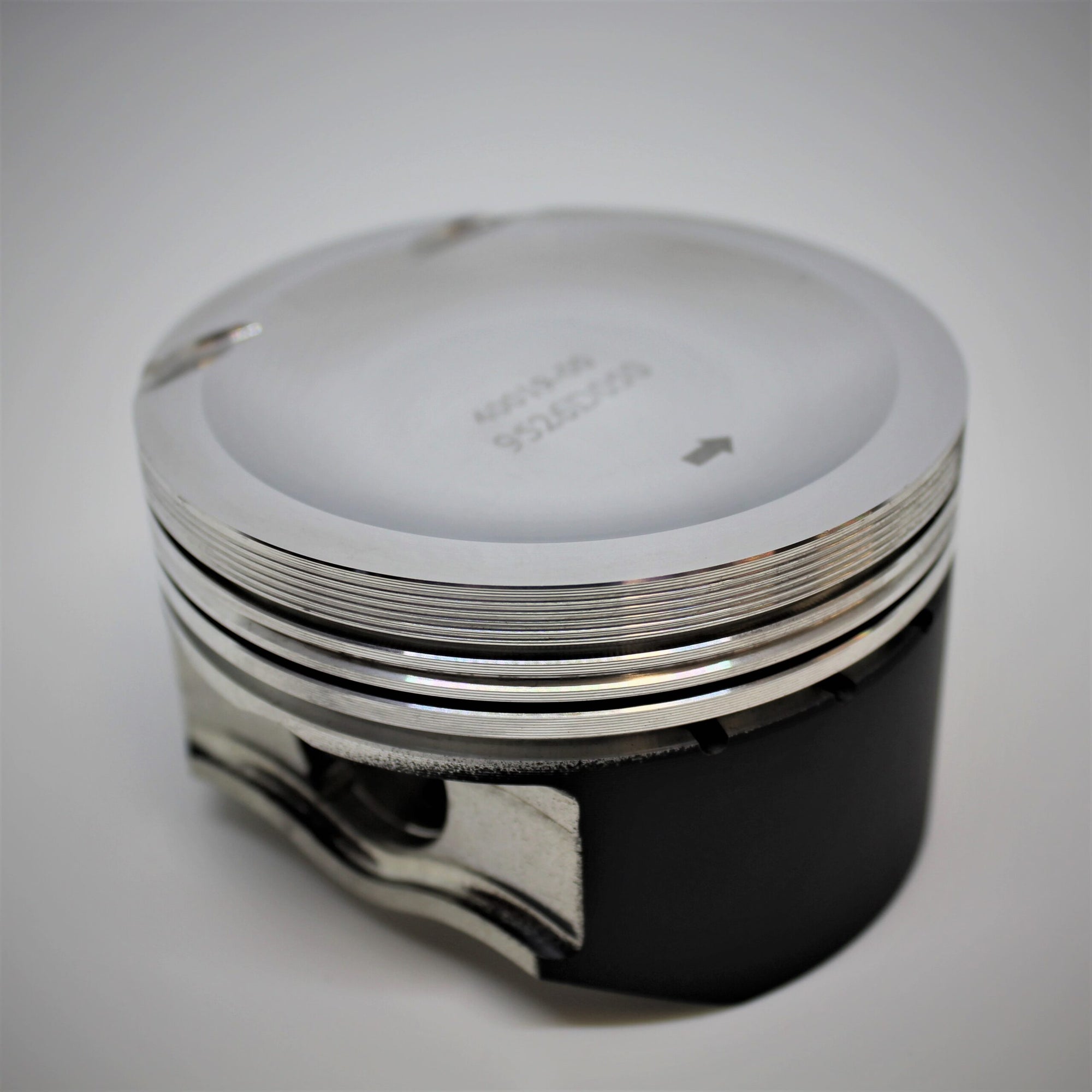

Mazdaspeed 3 & 6 MPS 2.3 16v Turbo Forged Piston Kit

Engine Code	2.3 DISI / L-VDT
YOM From	2005
YOM To	2012
Bore Size	87.5mm – K9526DA , 88mm – K9526D050
Stroke	94mm
Compression Height	32.5mm
OEM Comp Ratio	9.5:1
Number of Rings	3
OEM Rod Length	150.8mm
Clip Part Number	CW23
Pin Size	22.5mm
Pin Part Number	WP120
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0358
Con Rod Length C/C	150.8mm

Mazda MPS 2.3 DISI Turbo H-Beam Connecting rods

Engine Code	2.3 DISI / L-VDT
YOM From	2005
YOM To	2012
Con Rod Length C/C	150.8mm
Con Rod Big End Dia	55mm
Con Rod Big End Width	21.8mm
Con Rod Small End Dia	22.5mm
Con Rod Small End Width	15.8mm T
Con Rod Bolt	3/8"

Kit contents

Mazdaspeed 3 & 6 MPS 2.3 16v Turbo Forged Piston Kit
Mazda MPS 2.3 DISI Turbo H-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9526D050	87.92mm	9.56:1	2286cc
K9526DA	87.42mm	9.5:1	2260cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
