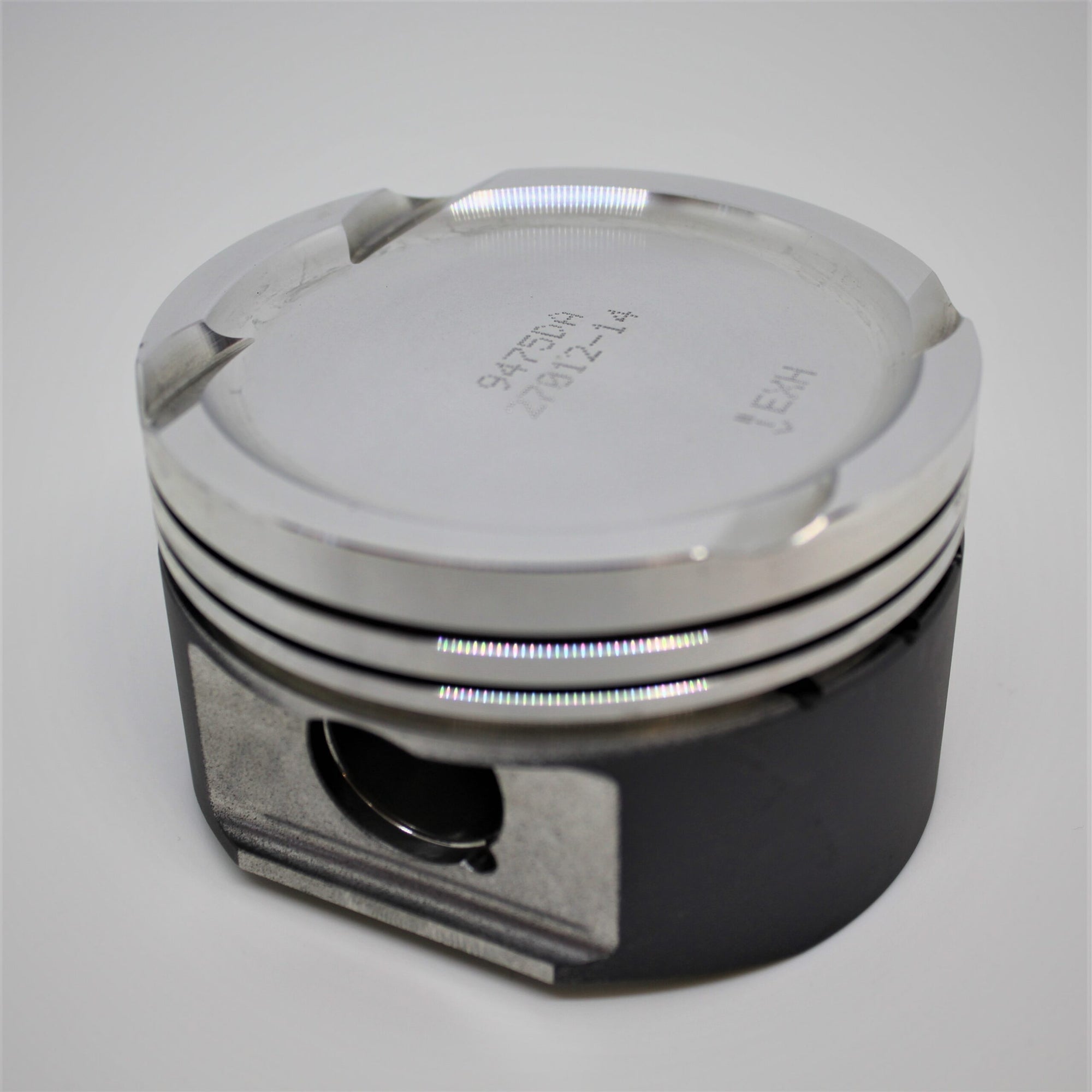

Wossner Megane RS 1,2 & 3 2.0 16v Turbo Forged Piston Kit (K9475)

Wossner Pistons

Wossner Megane RS 1,2 & 3 2.0 16v Turbo Forged Piston Kit (K9475)

£808.99

Megane RS 1,2 & 3 2.0 16v Turbo Forged Piston Kit.

Manufacturer kit reference: K9475

Technical specifications

Engine Code	F4R-776/874
YOM From	2004
YOM To	2009
Bore Size	82.72mm – K9475DC , 82.7mm – K9475DA , 83.5mm – K9475D080 , 83mm – K9475D030 , 84mm – K9475D130
Stroke	93mm
Compression Height	30.2mm
OEM Comp Ratio	09:01
Number of Rings	3
OEM Rod Length	144mm
Clip Part Number	CW21
Pin Size	21mm
Pin Part Number	WP092
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0015
Con Rod Length C/C	144mm

Select the required size and confirm engine fitment before ordering.
