£849.43

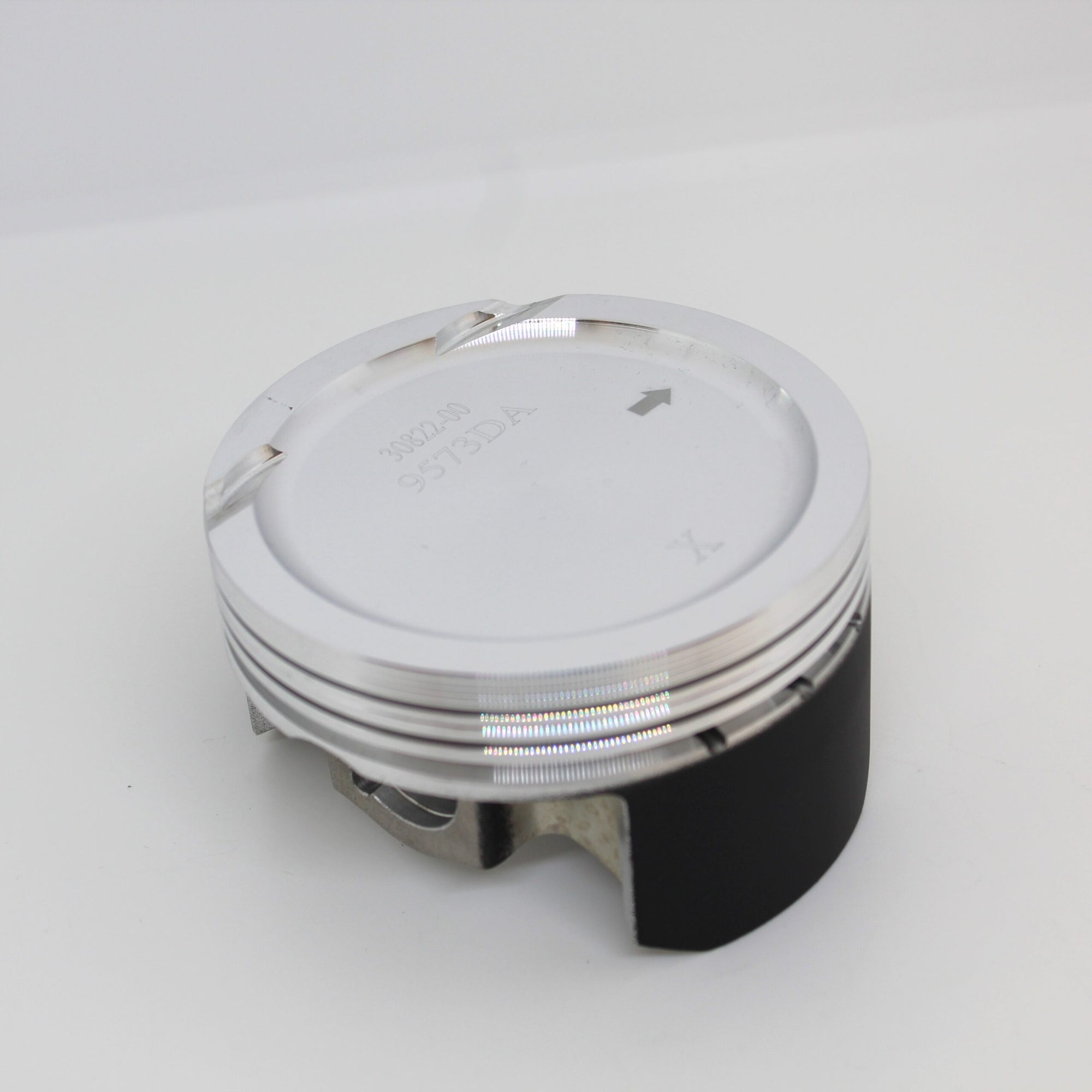

Miata / MX-5 2.0 16v 9:1 Comp Slipper style Forged Piston Kit.
Manufacturer kit reference: K9573
| Engine Code | LFY / G |
|---|---|
| YOM From | 2005 |
| YOM To | 2014 |
| Bore Size | 87.5mm – K9573DA , 88mm – K9573D050 |
| Stroke | 83.1mm |
| Compression Height | 28.4mm |
| OEM Comp Ratio | 10.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 146.25mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP034-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9573DA | 87.42mm | 9:1 | 1998cc |
| K9573D050 | 87.92mm | 9.09:1 | 2021cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
