Wossner Mini Cooper 1.6 16v Supercharged Low Forged Piston & H-Beam Steel Con Rod Package (K9123/G0336)

Wossner Pistons

Wossner Mini Cooper 1.6 16v Supercharged Low Forged Piston & H-Beam Steel Con Rod Package (K9123/G0336)

£1,171.22

Mini Cooper 1.6 16v Supercharged Low Forged Piston & H-Beam Steel Con Rod Package.

Manufacturer kit reference: K9123/G0336

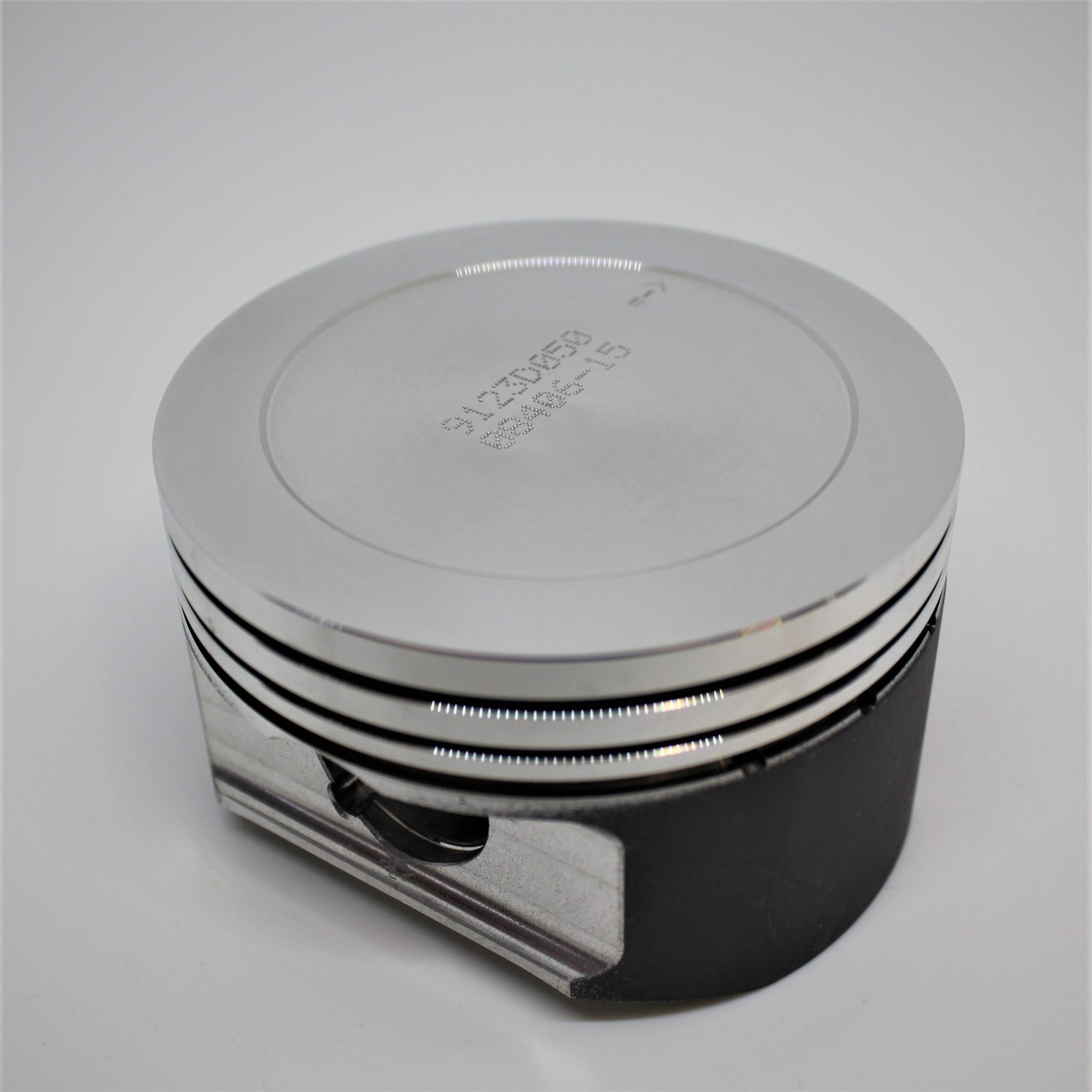

Mini Cooper 1.6 16v Supercharged Low Forged Piston Kit

Engine Code	W11B16A
YOM From	2002
YOM To	2007
Bore Size	77.25mm , 77.5mm , 77mm
Stroke	85.5mm
Compression Height	26.5mm
OEM Comp Ratio	10.5:1
Number of Rings	3
OEM Rod Length	131.5mm
Clip Part Number	CW21
Pin Size	21mm
Pin Part Number	WP051
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0336
Con Rod Length C/C	131.5mm

Mini W11B16 1.6 16v Supercharged R53 * H-Beam Connecting rods

Engine Code	W11B16
Con Rod Length C/C	131.5mm
Con Rod Big End Dia	49mm
Con Rod Big End Width	23.25mm
Con Rod Small End Dia	21mm
Con Rod Small End Width	18.45mm
Con Rod Bolt	5/16"

Kit contents

Mini Cooper 1.6 16v Supercharged Low Forged Piston Kit
Mini W11B16 1.6 16v Supercharged R53 * H-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9123D025	77.18mm	8.35:1	1602cc
K9123D050	77.43mm	8.4:1	1613cc
K9123DA	76.93mm	8.3:1	1592cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
