Wossner Pulsar Gti-R & 200SX SR20DET 2.0 16v Turbo Forged Piston & H-Beam Steel Con Rod Package (K9058/G0342)

Wossner Pistons

Wossner Pulsar Gti-R & 200SX SR20DET 2.0 16v Turbo Forged Piston & H-Beam Steel Con Rod Package (K9058/G0342)

£1,337.74

Pulsar Gti-R & 200SX SR20DET 2.0 16v Turbo Forged Piston & H-Beam Steel Con Rod Package.

Manufacturer kit reference: K9058/G0342

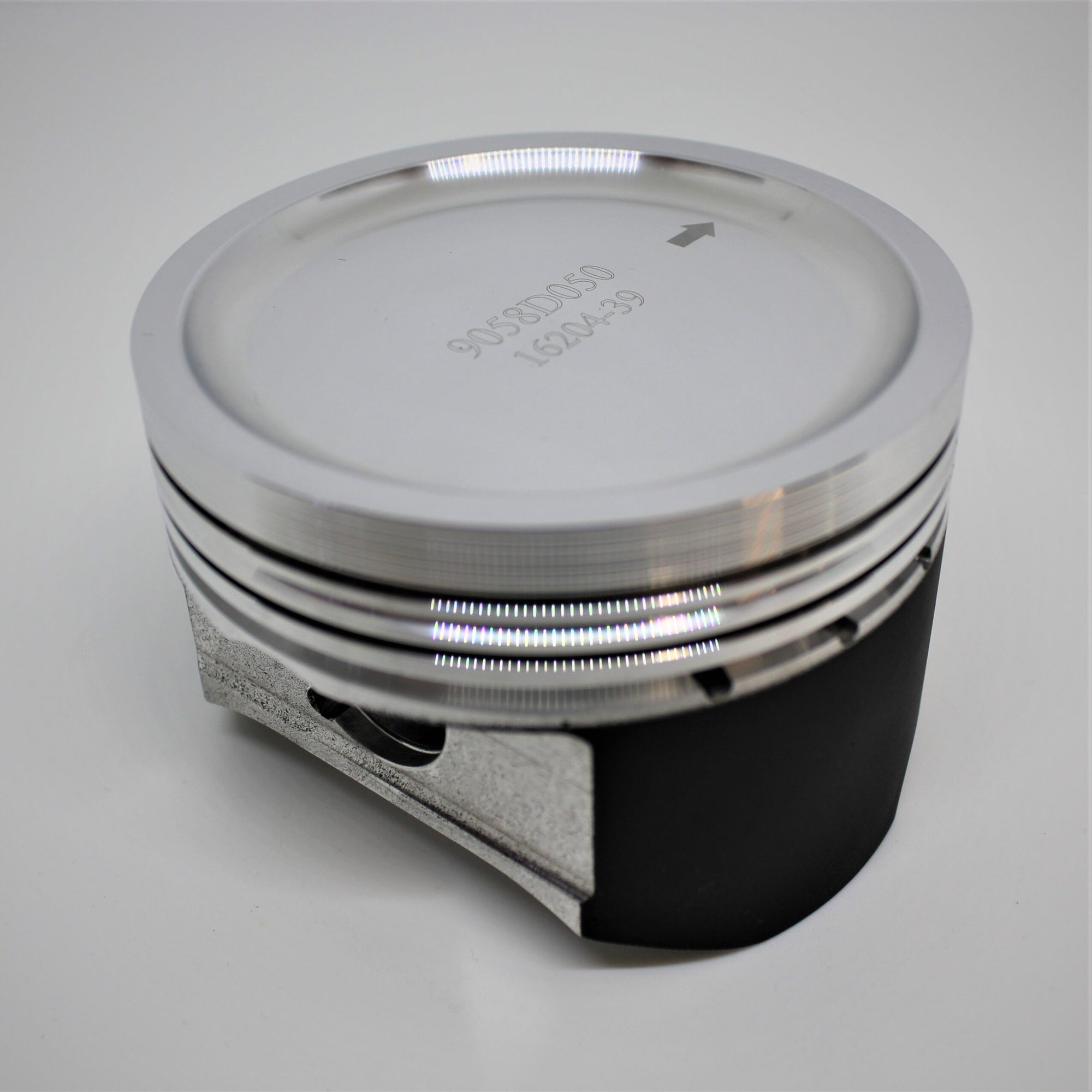

Pulsar Gti-R & 200SX SR20DET 2.0 16v Turbo Forged Piston Kit

Engine Code	SR20 DET
YOM From	1993
YOM To	1999
Bore Size	86.5mm , 86mm , 87mm , 88mm , 89mm
Stroke	86mm
Compression Height	32mm
OEM Comp Ratio	08:01
Number of Rings	3
OEM Rod Length	136.25mm
Clip Part Number	CW22
Pin Size	22mm
Pin Part Number	WP136-SP
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0342
Con Rod Length C/C	136.25mm

SR20DET inc Sunny GTiR & S14 200SX H-Beam Connecting rods

Engine Code	SR20DET
Con Rod Length C/C	136.25mm
Con Rod Big End Dia	51mm
Con Rod Big End Width	22.8mm
Con Rod Small End Dia	22mm
Con Rod Small End Width	23mm
Con Rod Bolt	3/8"

Kit contents

Pulsar Gti-R & 200SX SR20DET 2.0 16v Turbo Forged Piston Kit
SR20DET inc Sunny GTiR & S14 200SX H-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9058D200	87.93mm	8.08:1
K9058D300	88.93mm	8.08:1
K9058D050	86.43mm	8.08:1	2021cc
K9058DA	85.93mm	8:1	1997cc
K9058D100	86.93mm	8.16:1	2044cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
