£849.43

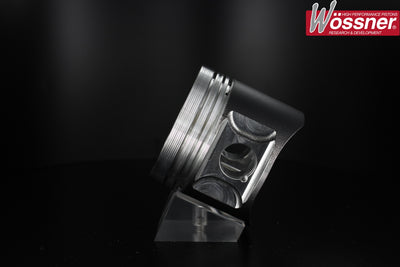

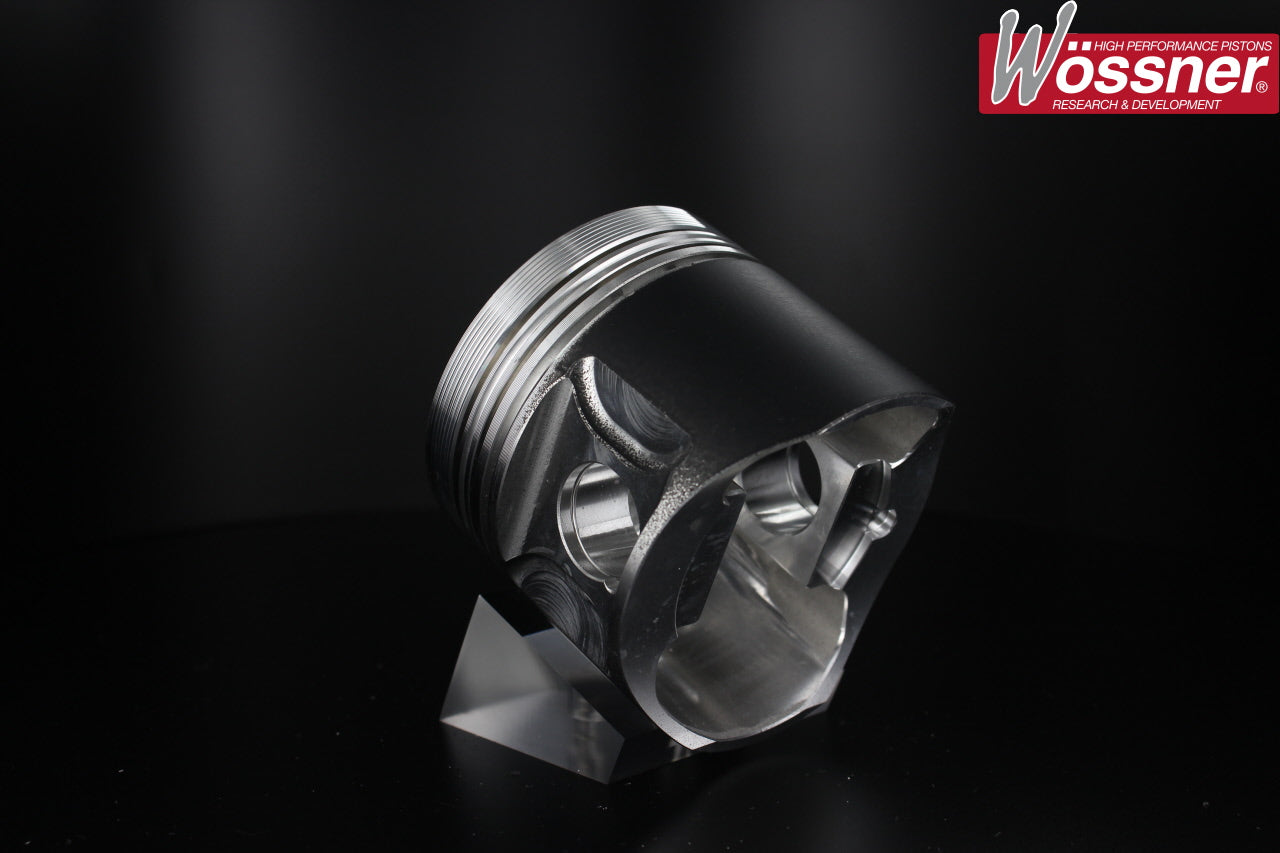

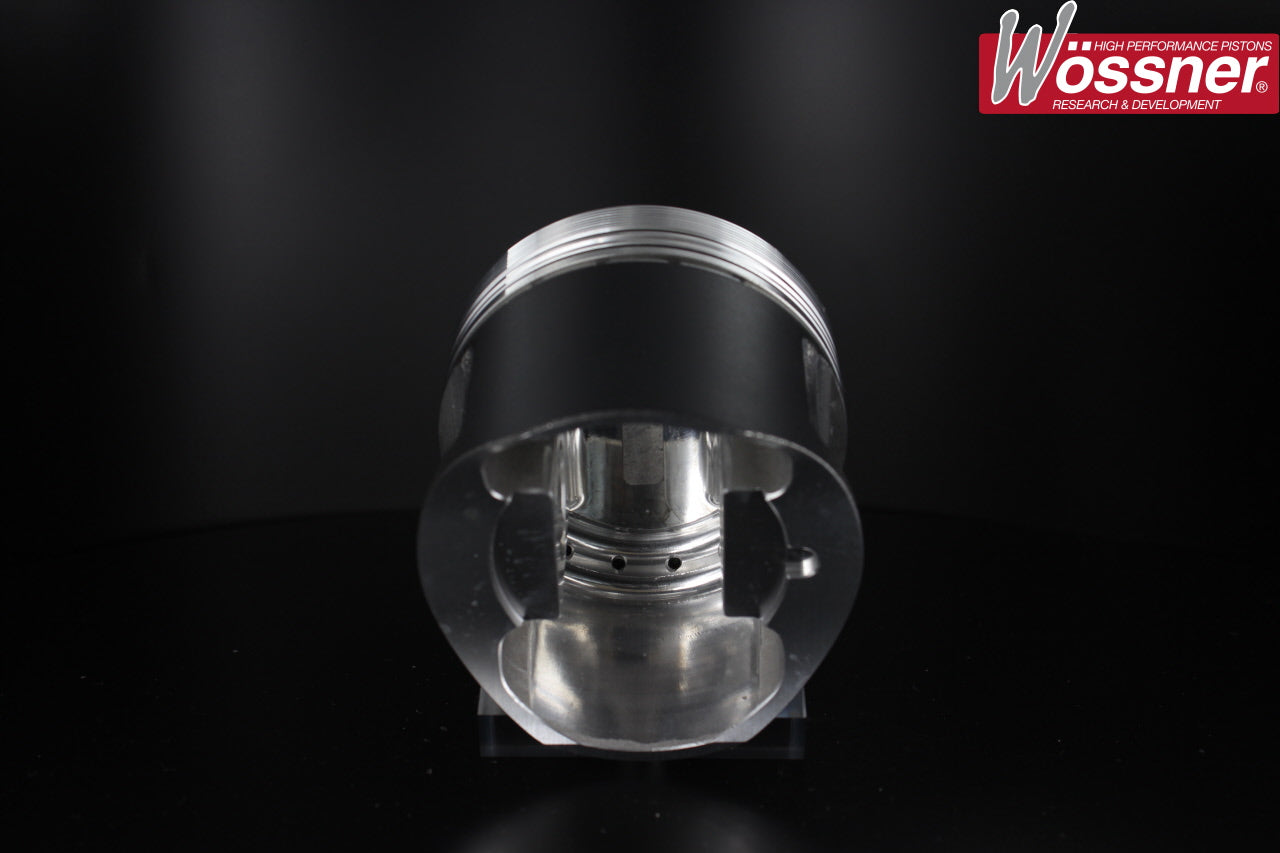

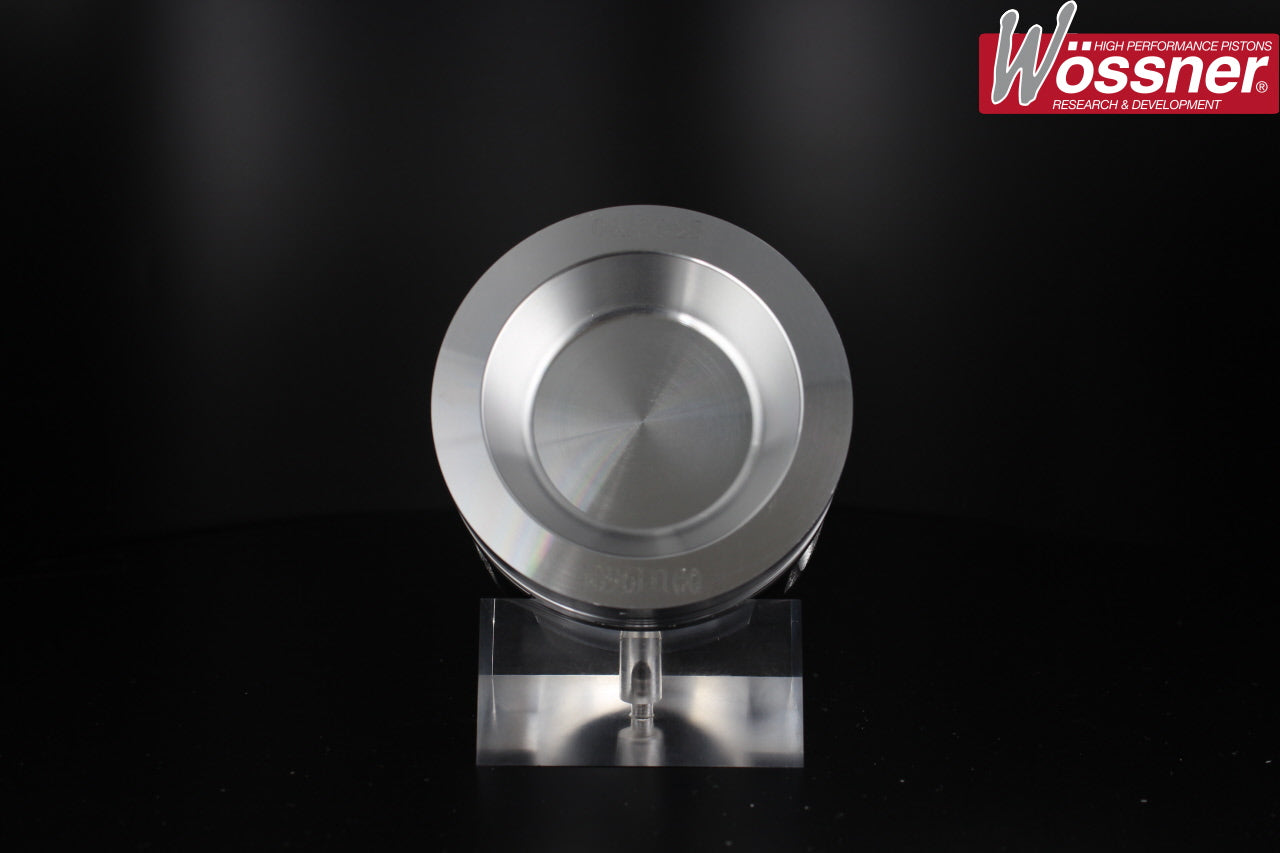

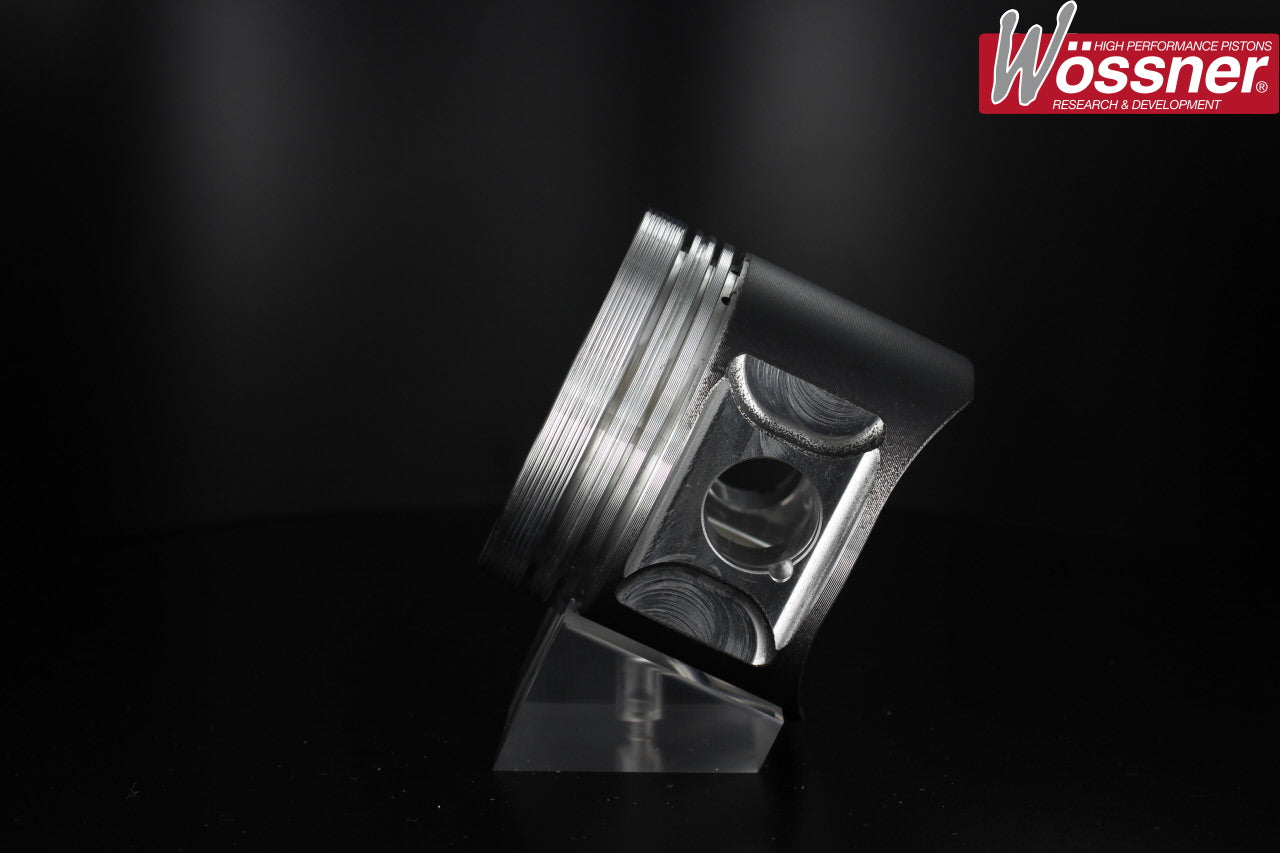

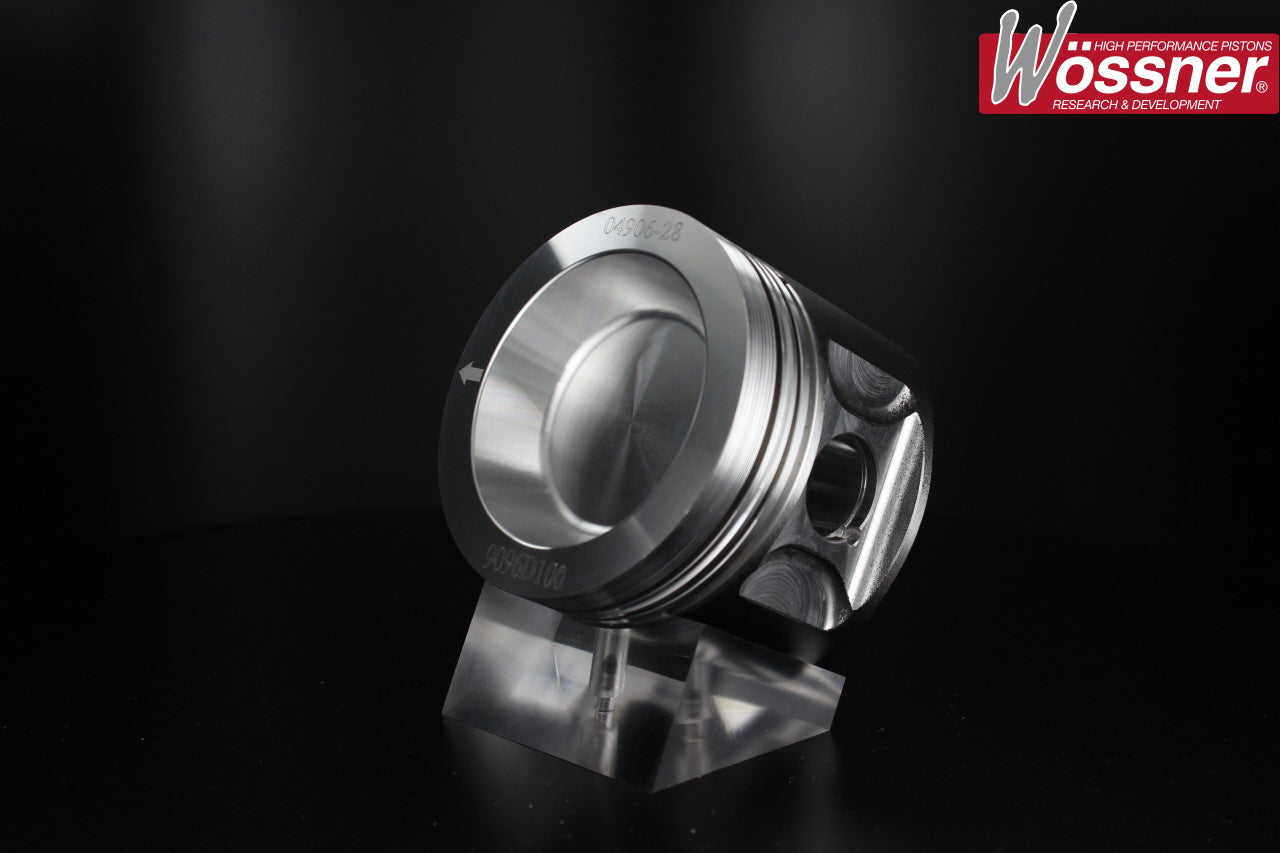

Polo G40 1.4 Super Charged Forged Piston Kit.
Manufacturer kit reference: K9096
| Engine Code | PY |
|---|---|
| YOM From | 1987 |
| YOM To | 1994 |
| Bore Size | 75.5mm , 75mm , 76.5mm , 76mm , 77mm |
| Stroke | 72mm |
| Compression Height | 40mm |
| OEM Comp Ratio | 08:01 |
| Number of Rings | 3 |
| OEM Rod Length | 122mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP052 |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9096D200 | 76.93mm | 8.38:1 | 1340cc |
| K9096D100 | 75.93mm | 8.19:1 | 1306cc |
| K9096D150 | 76.43mm | 8.28:1 | 1323cc |
| K9096DA | 74.93mm | 8:1 | 1272cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
