£849.43

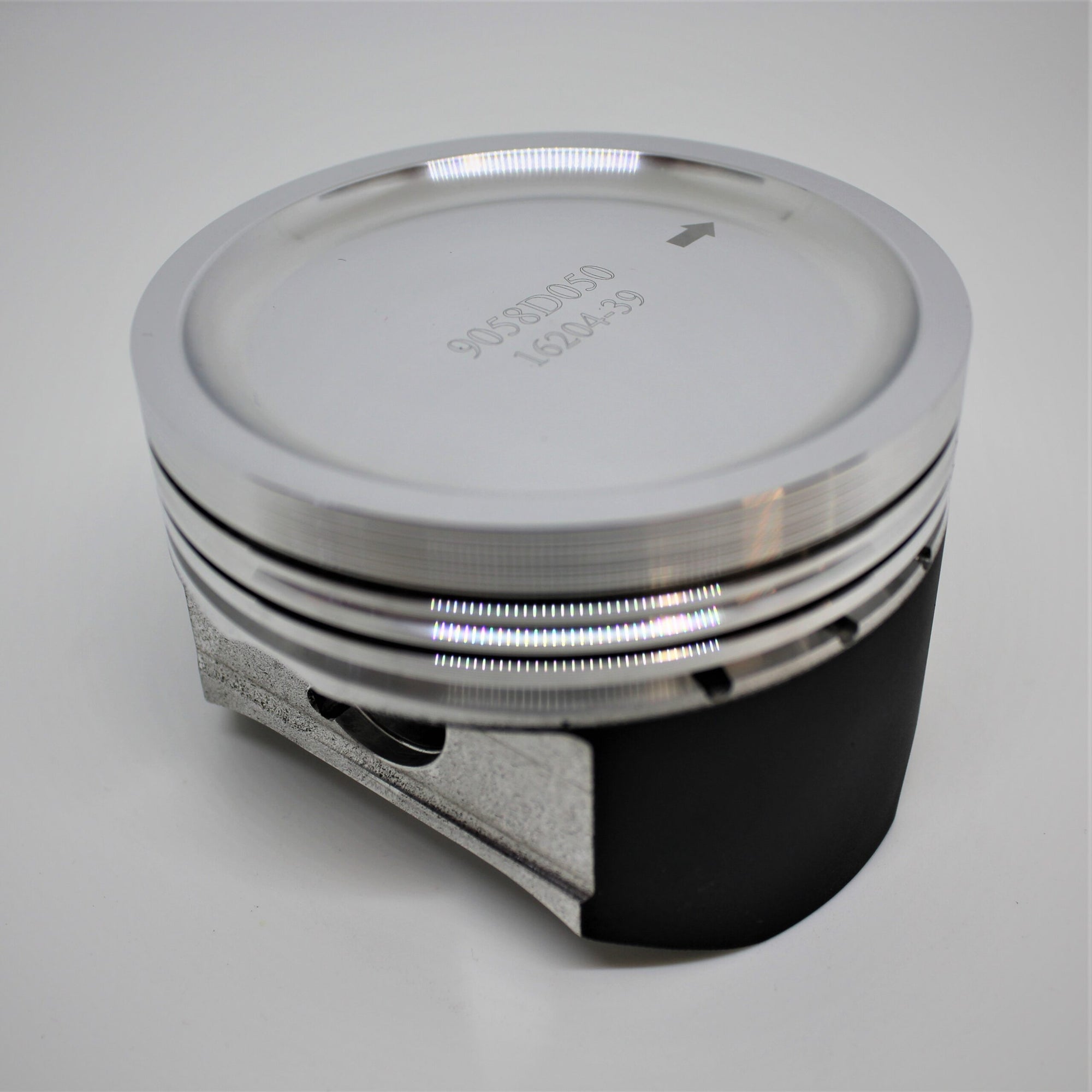

Pulsar Gti-R & 200SX SR20DET 2.0 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9058
| Engine Code | SR20 DET |
|---|---|
| YOM From | 1993 |
| YOM To | 1999 |
| Bore Size | 86.5mm , 86mm , 87mm , 88mm , 89mm |
| Stroke | 86mm |
| Compression Height | 32mm |
| OEM Comp Ratio | 08:01 |
| Number of Rings | 3 |
| OEM Rod Length | 136.25mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0342 |
| Con Rod Length C/C | 136.25mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9058D200 | 87.93mm | 8.08:1 | |
| K9058D300 | 88.93mm | 8.08:1 | |
| K9058D050 | 86.43mm | 8.08:1 | 2021cc |
| K9058DA | 85.93mm | 8:1 | 1997cc |
| K9058D100 | 86.93mm | 8.16:1 | 2044cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
