£849.43

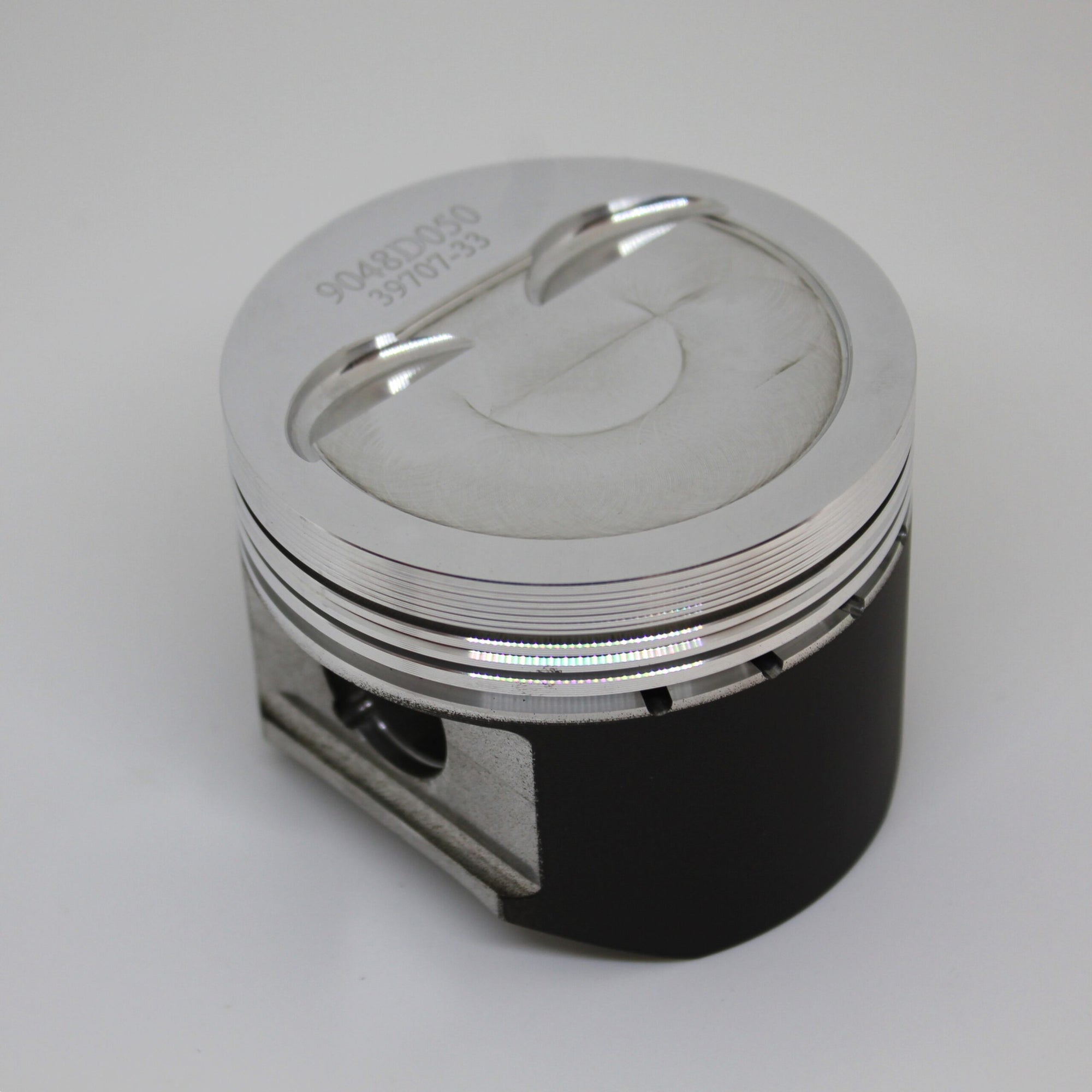

Punto 1.4 8v Turbo Forged Piston Kit.
Manufacturer kit reference: K9048
| Engine Code | 176 A 4000 |
|---|---|
| YOM From | 1993 |
| YOM To | 1996 |
| Bore Size | 80.5mm , 81.5mm , 81mm |
| Stroke | 67.4mm |
| Compression Height | 34.1mm |
| OEM Comp Ratio | 7.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 128.52mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9048D050 | 80.93mm | 7.88:1 | 1388cc |
| K9048D100 | 81.43mm | 7.97:1 | 1406cc |
| K9048DA | 80.43mm | 7.8:1 | 1371cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
