Wossner RS2000 I4 2.0 16v High Comp Forged Piston & H-Beam Steel Con Rod Package (K9544/G0132)

Wossner Pistons

Wossner RS2000 I4 2.0 16v High Comp Forged Piston & H-Beam Steel Con Rod Package (K9544/G0132)

£1,337.74

RS2000 I4 2.0 16v High Comp Forged Piston & H-Beam Steel Con Rod Package.

Manufacturer kit reference: K9544/G0132

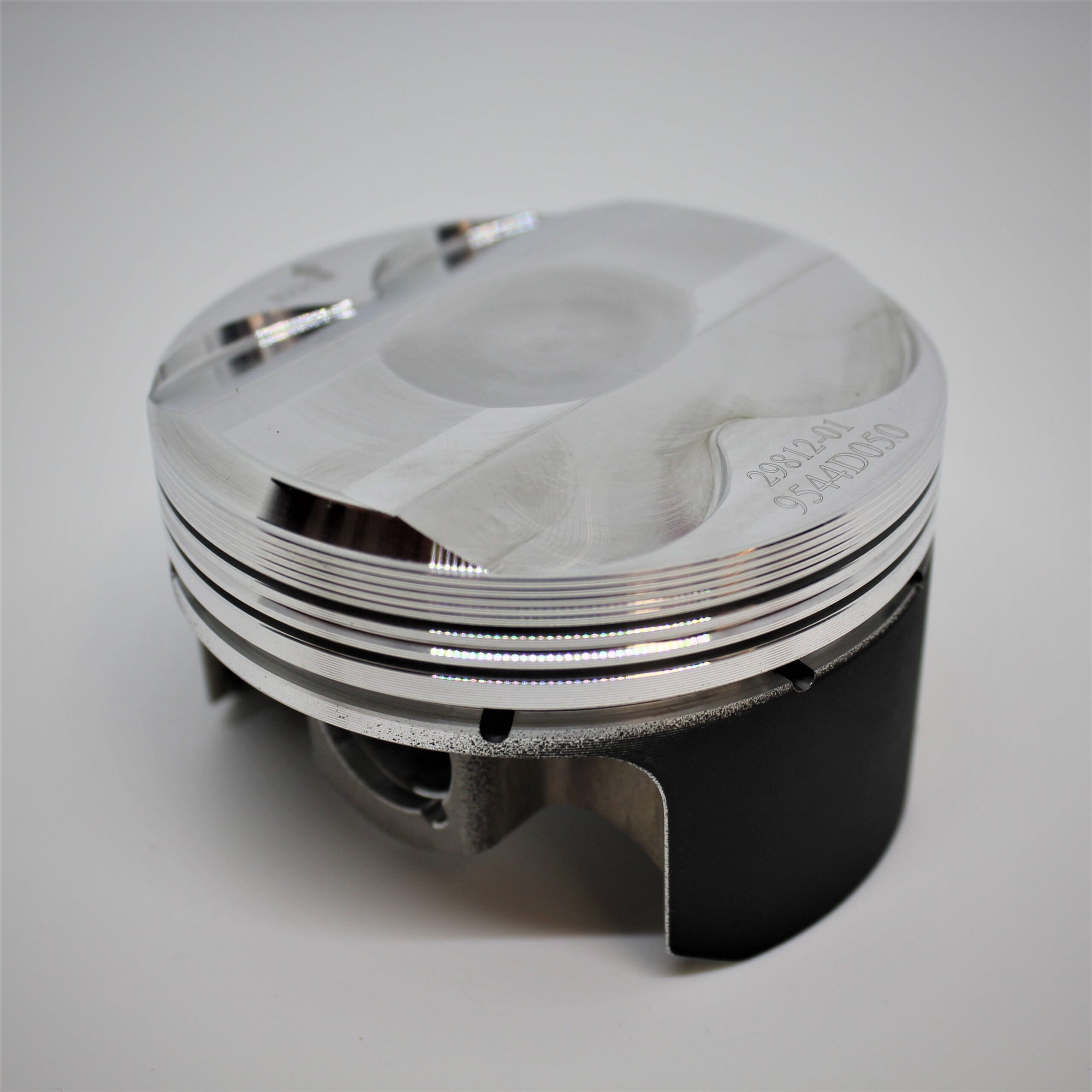

RS2000 I4 2.0 16v High Comp Forged Piston Kit

Engine Code	I4
YOM From	1991
YOM To	1996
Bore Size	86.5mm – K9544D050 , 86mm – K9544DA
Stroke	86mm
Compression Height	32.2mm
OEM Comp Ratio	10.3:1
Number of Rings	3
OEM Rod Length	149.5mm
Clip Part Number	CW20
Pin Size	20mm
Pin Part Number	WP068
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0132
Con Rod Length C/C	149.5mm

RS2000 I4 2.0 16v H-Beam Connecting rods

Engine Code	RS2000 I4
YOM From	1991
YOM To	1996
Con Rod Length C/C	149.5mm
Con Rod Big End Dia	53.9mm
Con Rod Big End Width	25.7mm
Con Rod Small End Dia	20mm
Con Rod Small End Width	21mm
Con Rod Bolt	3/8"

Kit contents

RS2000 I4 2.0 16v High Comp Forged Piston Kit
RS2000 I4 2.0 16v H-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9544DA	86mm	12.5:1	1998cc
K9544D050	86.5mm	12.5:1	2021cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
