£849.43

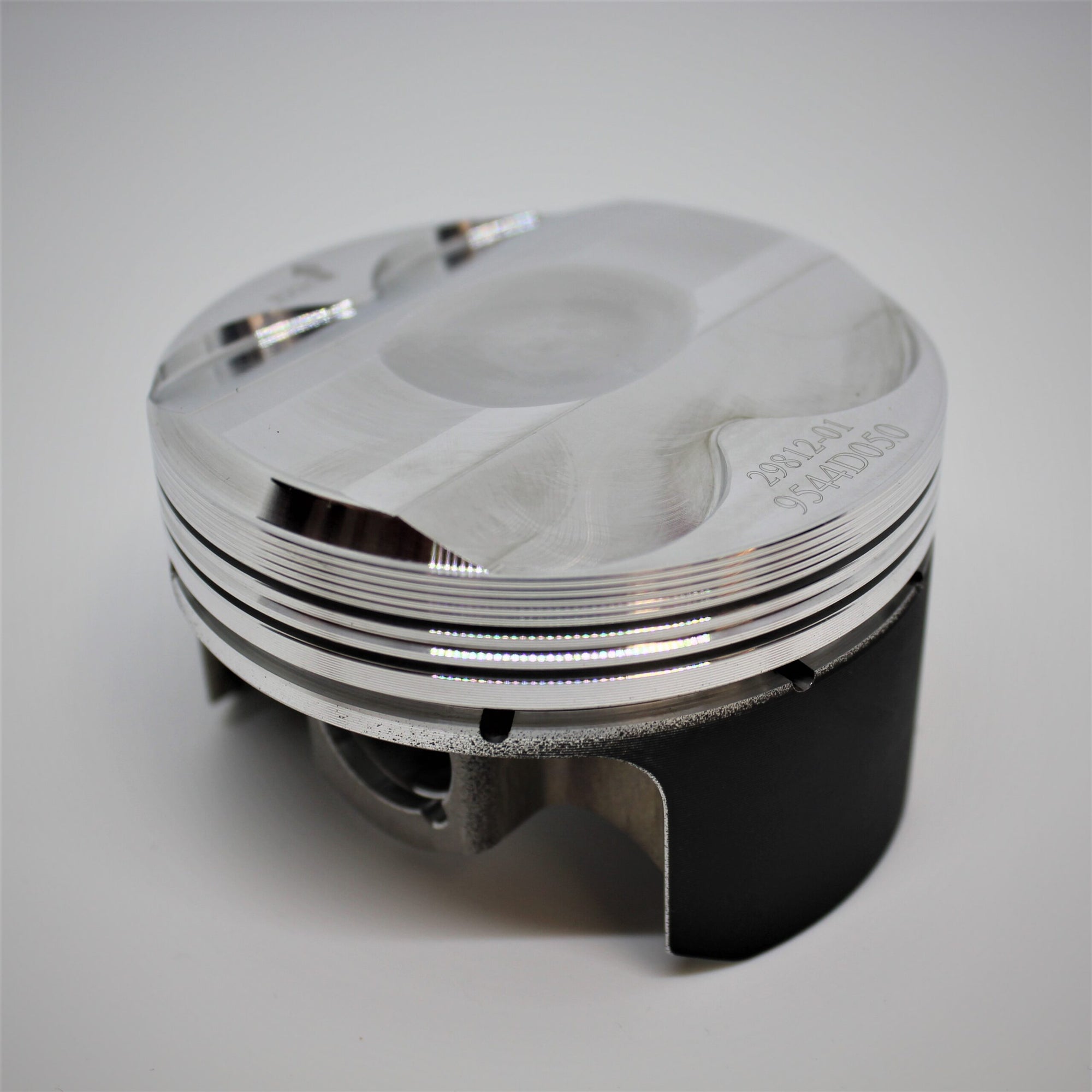

RS2000 I4 2.0 16v High Comp Forged Piston Kit.
Manufacturer kit reference: K9544
| Engine Code | I4 |
|---|---|
| YOM From | 1991 |
| YOM To | 1996 |
| Bore Size | 86.5mm – K9544D050 , 86mm – K9544DA |
| Stroke | 86mm |
| Compression Height | 32.2mm |
| OEM Comp Ratio | 10.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 149.5mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP068 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0132 |
| Con Rod Length C/C | 149.5mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9544DA | 86mm | 12.5:1 | 1998cc |
| K9544D050 | 86.5mm | 12.5:1 | 2021cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
