£1,883.45

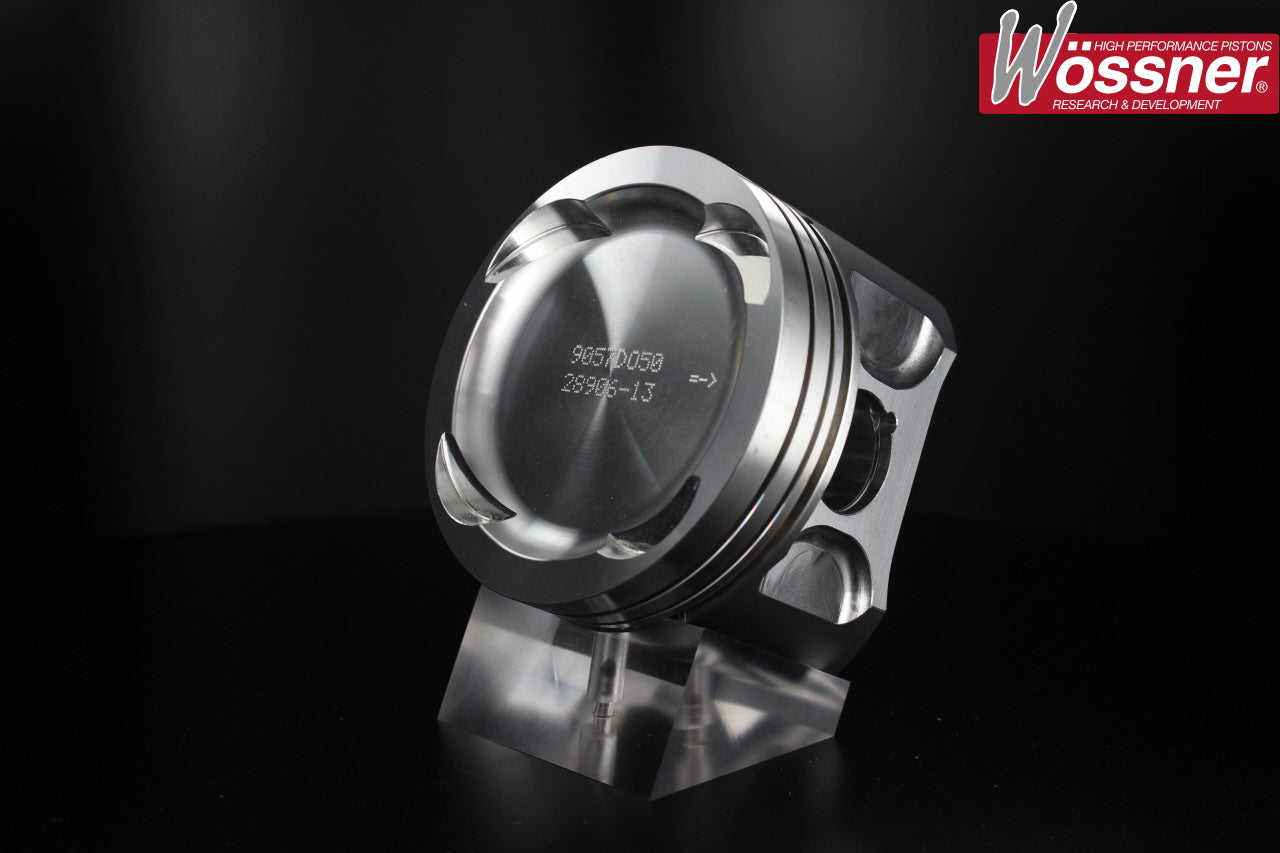

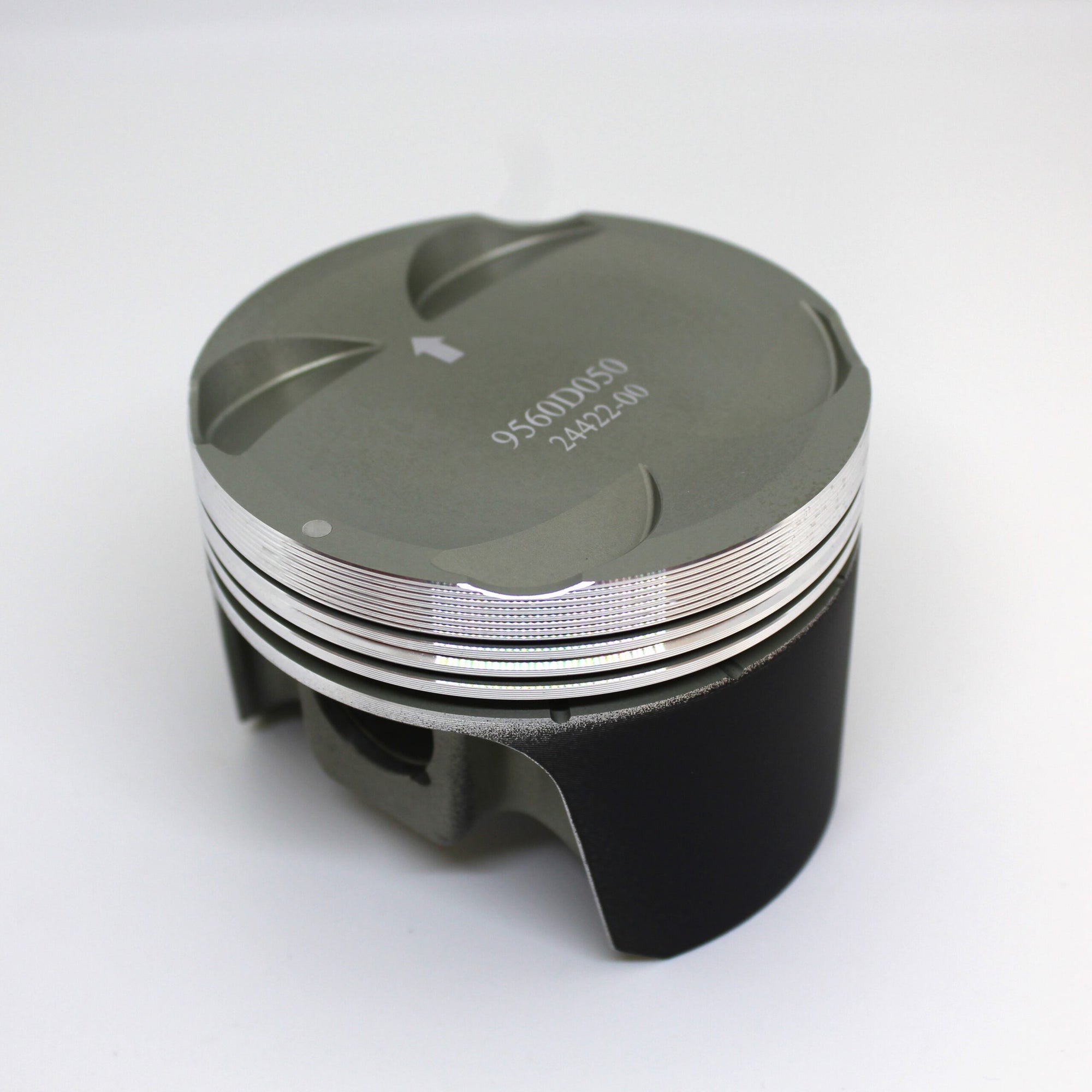

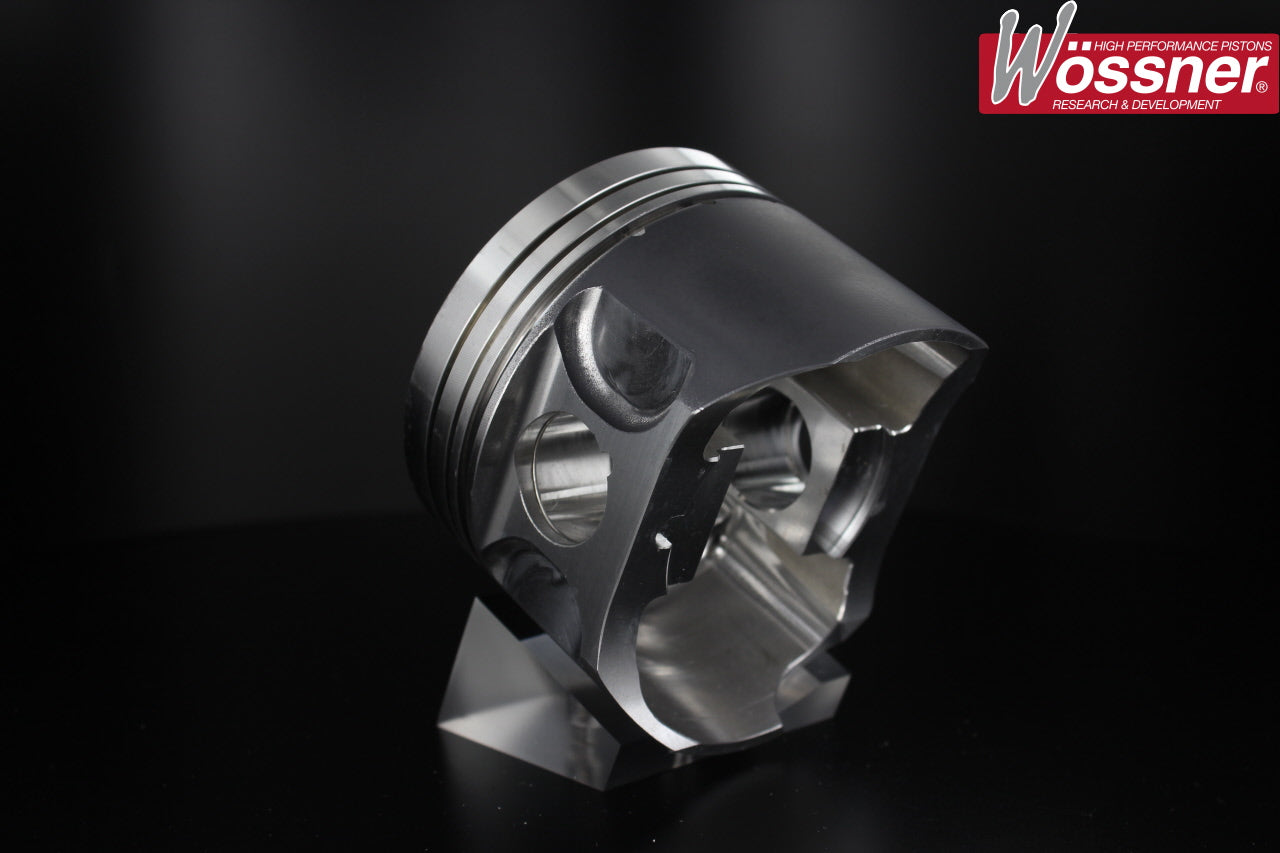

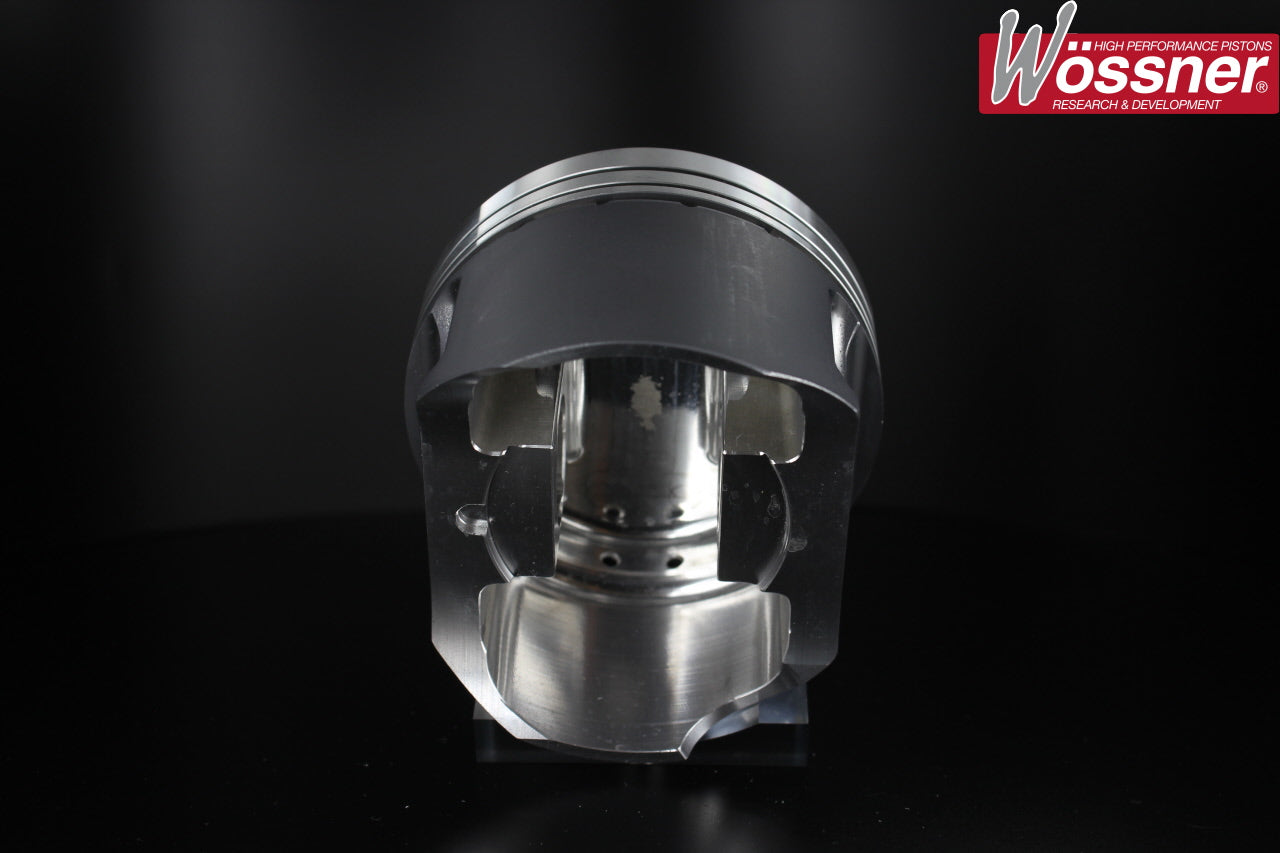

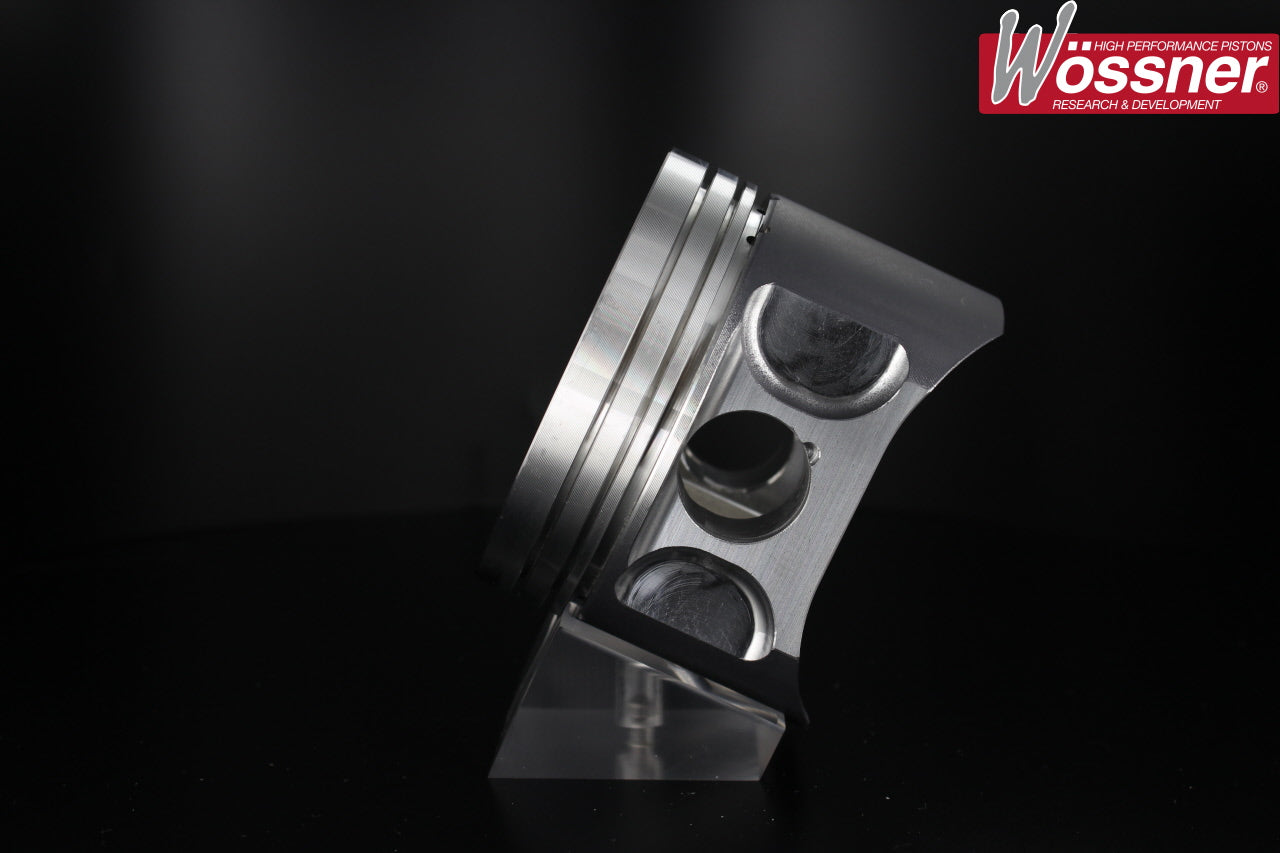

Supra & Aristo 2JZGTE 9:1 Forged Piston Kit Hard Anodised Crown.
Manufacturer kit reference: K9560
| Engine Code | 2JZGTE |
|---|---|
| YOM From | 1993 |
| YOM To | 1998 |
| Bore Size | 86.5mm – K9560D050 , 86mm – K9560DA , 87mm – K9560D100 |
| Stroke | 86mm |
| Compression Height | 34mm |
| OEM Comp Ratio | 8.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 142mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP046 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9560D050 | 86.43mm | 9.08:1 | 3031cc |
| K9560D100 | 86.93mm | 9.18:1 | 3066cc |
| K9560DA | 85.93mm | 9:1 | 2997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
