£1,022.11

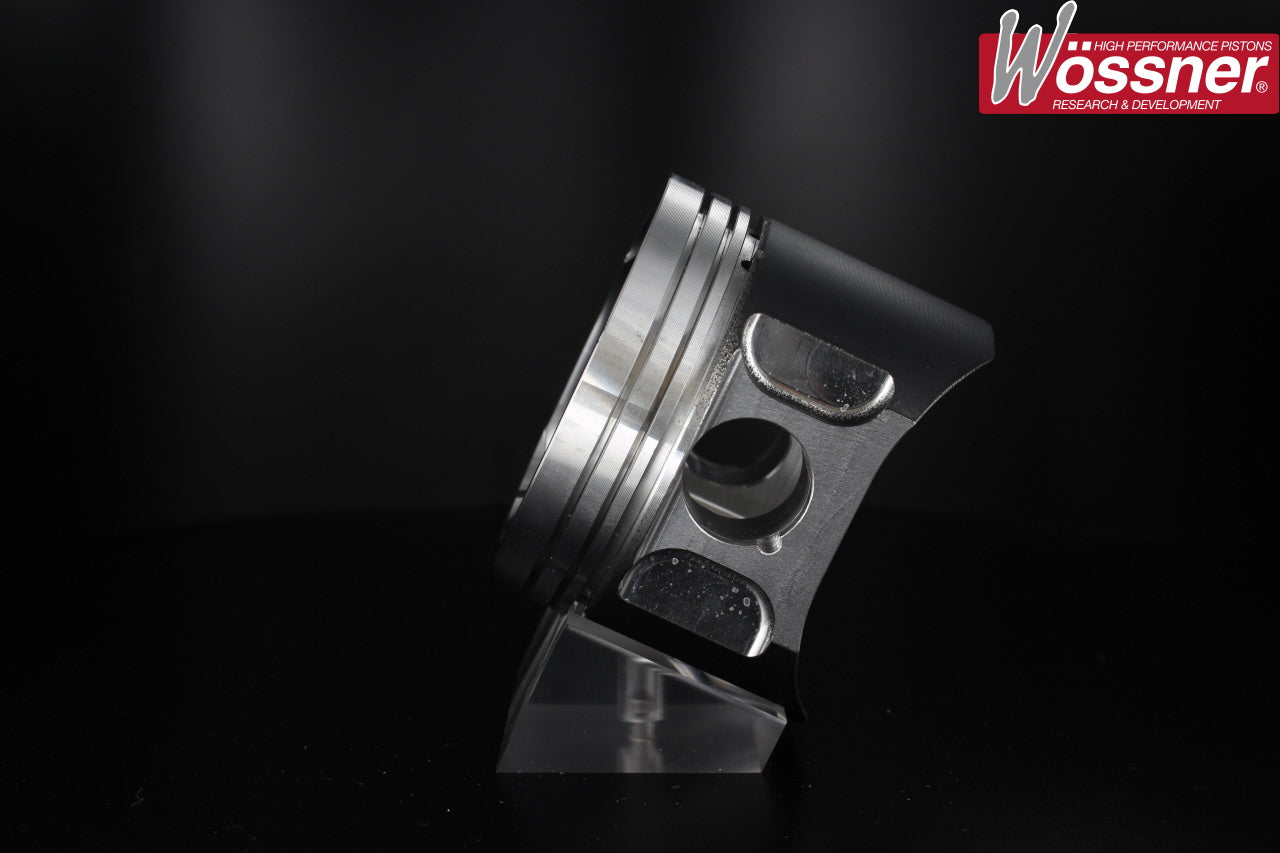

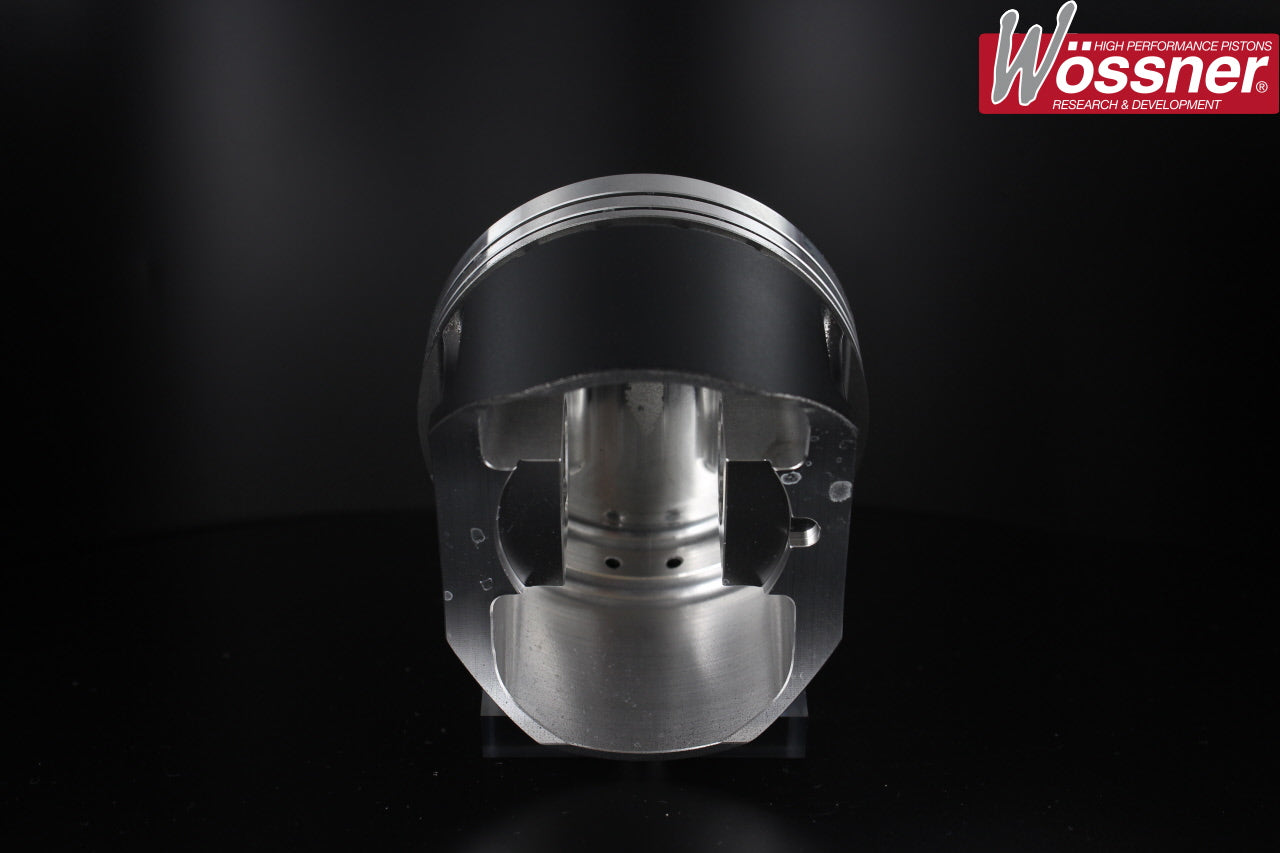

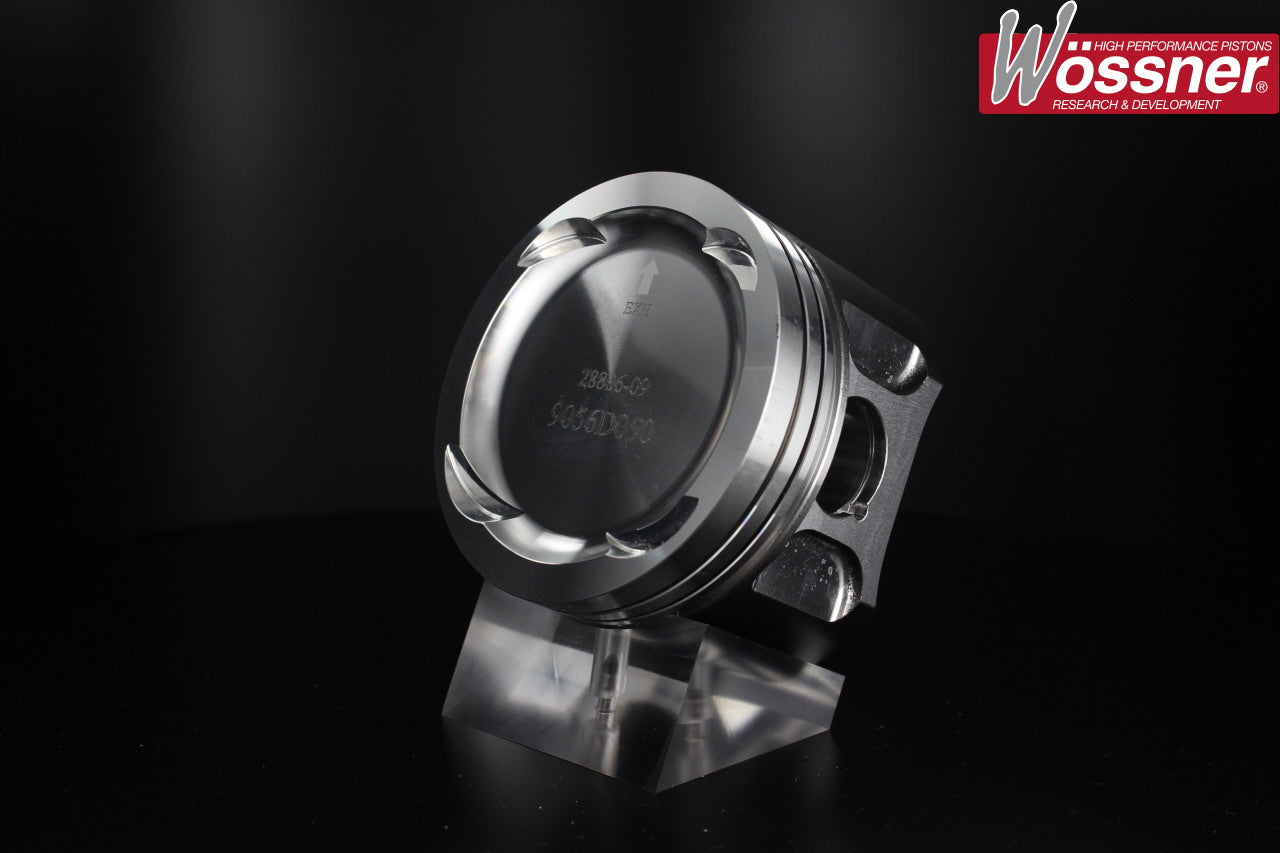

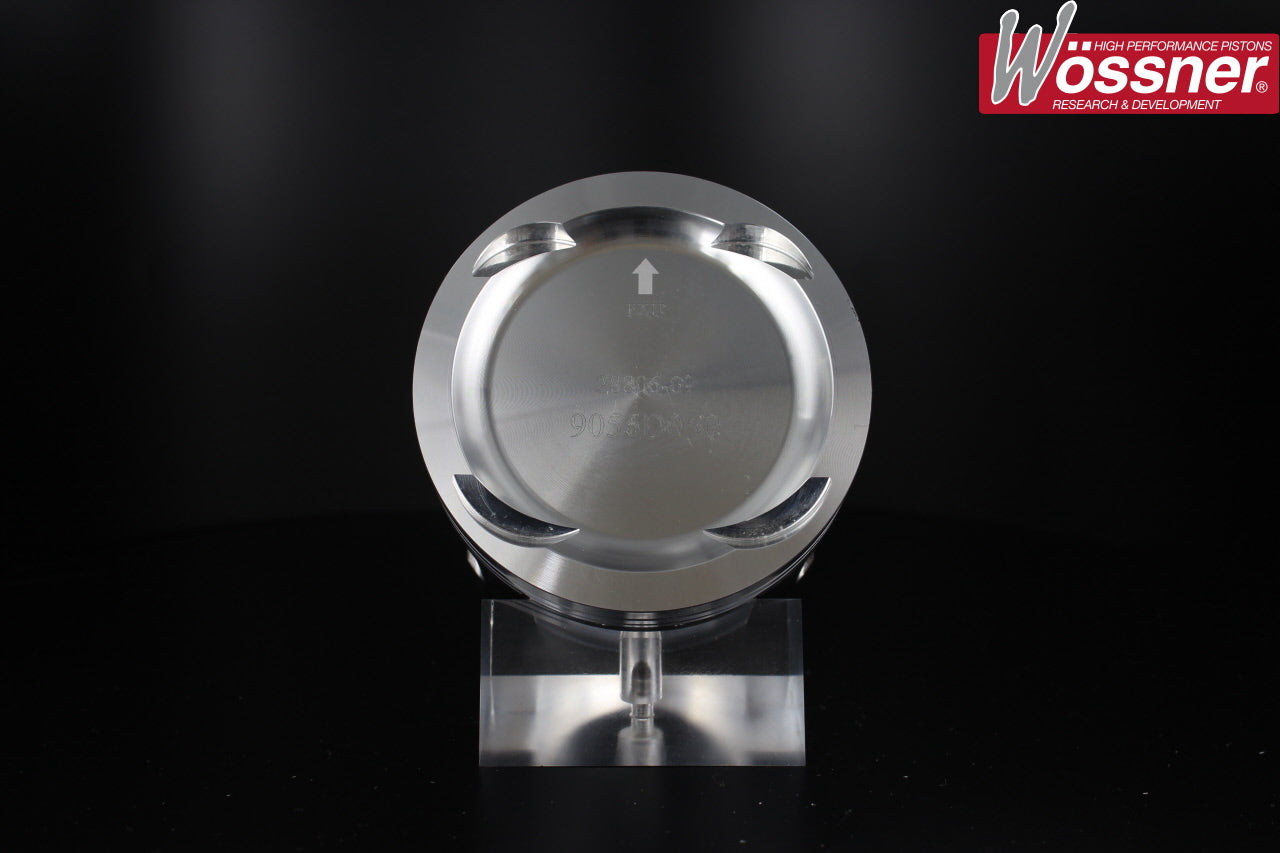

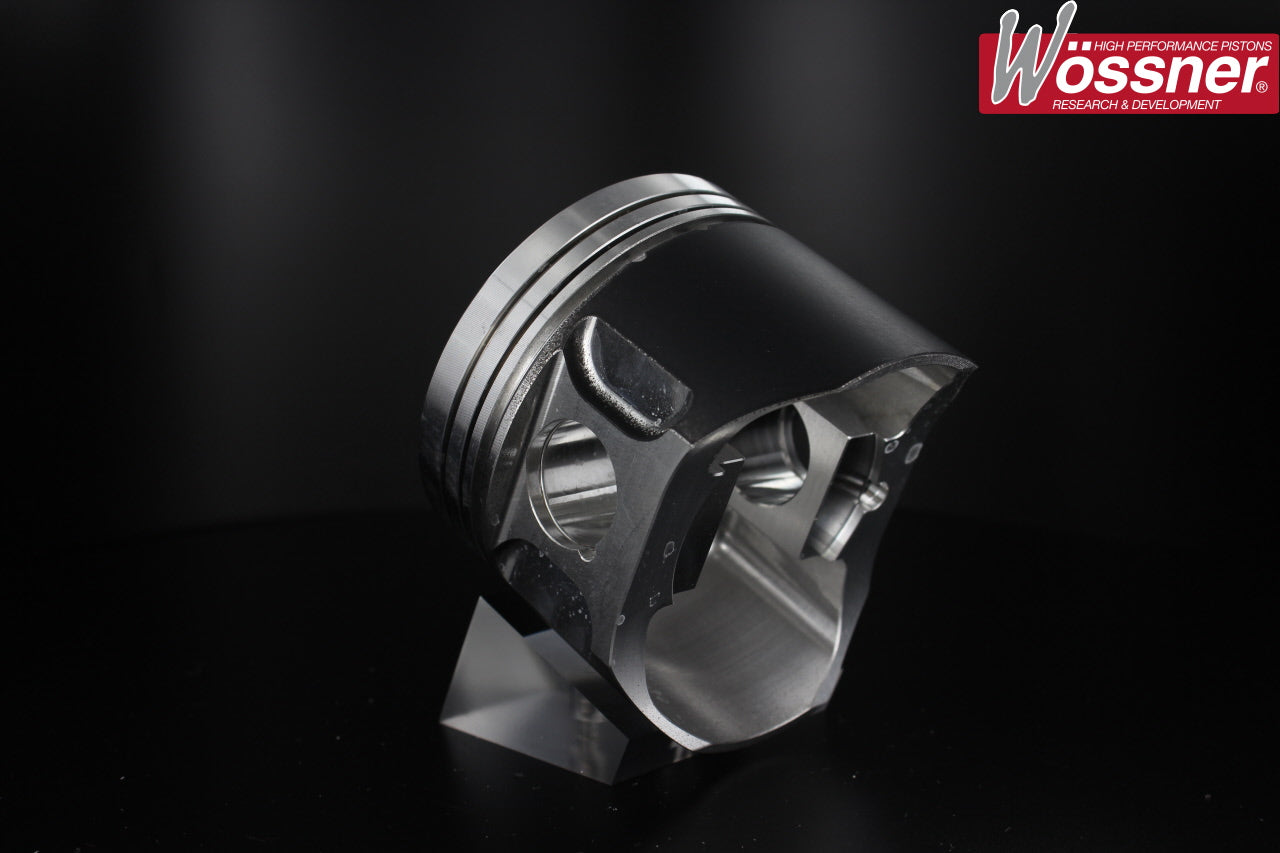

Supra & Soarer 7MGTE 9:1 Forged Piston Kit.
Manufacturer kit reference: K9056
| Engine Code | 7MGTE |
|---|---|
| YOM From | 1986 |
| YOM To | 1992 |
| Bore Size | 83.5mm , 84mm |
| Stroke | 91mm |
| Compression Height | 33mm |
| OEM Comp Ratio | 8.4:1 |
| Number of Rings | 3 |
| OEM Rod Length | 152mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP046 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9056D050 | 83.43mm | 9.1:1 | 2989cc |
| K9056D100 | 83.93mm | 9.2:1 | 3025cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
