£1,883.45

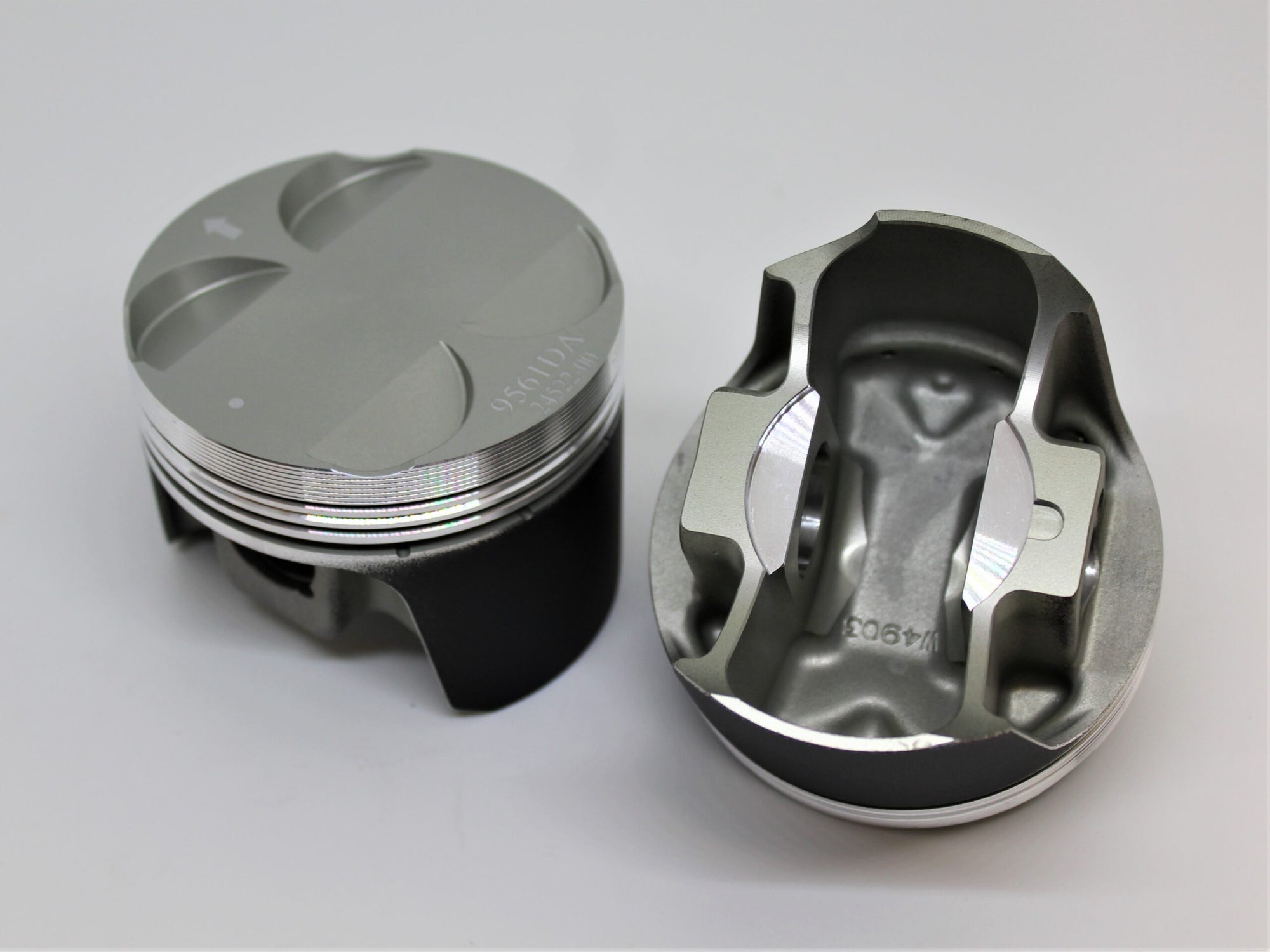

Supra, Chaser & Soarer 1JZ & 2JZ Turbo Race Comp Forged Piston Kit Hard Anodised.
Manufacturer kit reference: K9561
| Engine Code | 1JZ-GTE , 2JZGTE |
|---|---|
| YOM From | 1990 |
| YOM To | 2007 |
| Bore Size | 86.5mm – K9561D050 , 86mm – K9561DA , 87mm – K9561D100 |
| Stroke | 71.5mm – 1JZ , 86mm – 2JZ |
| Compression Height | 34mm |
| OEM Comp Ratio | 8.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 125.25mm – 1JZ , 142mm – 2JZ |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136DLC |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9561D050 | 86.43mm | ||
| K9561DA | 85.93mm | ||
| K9561D100 | 86.93mm |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
