£932.39

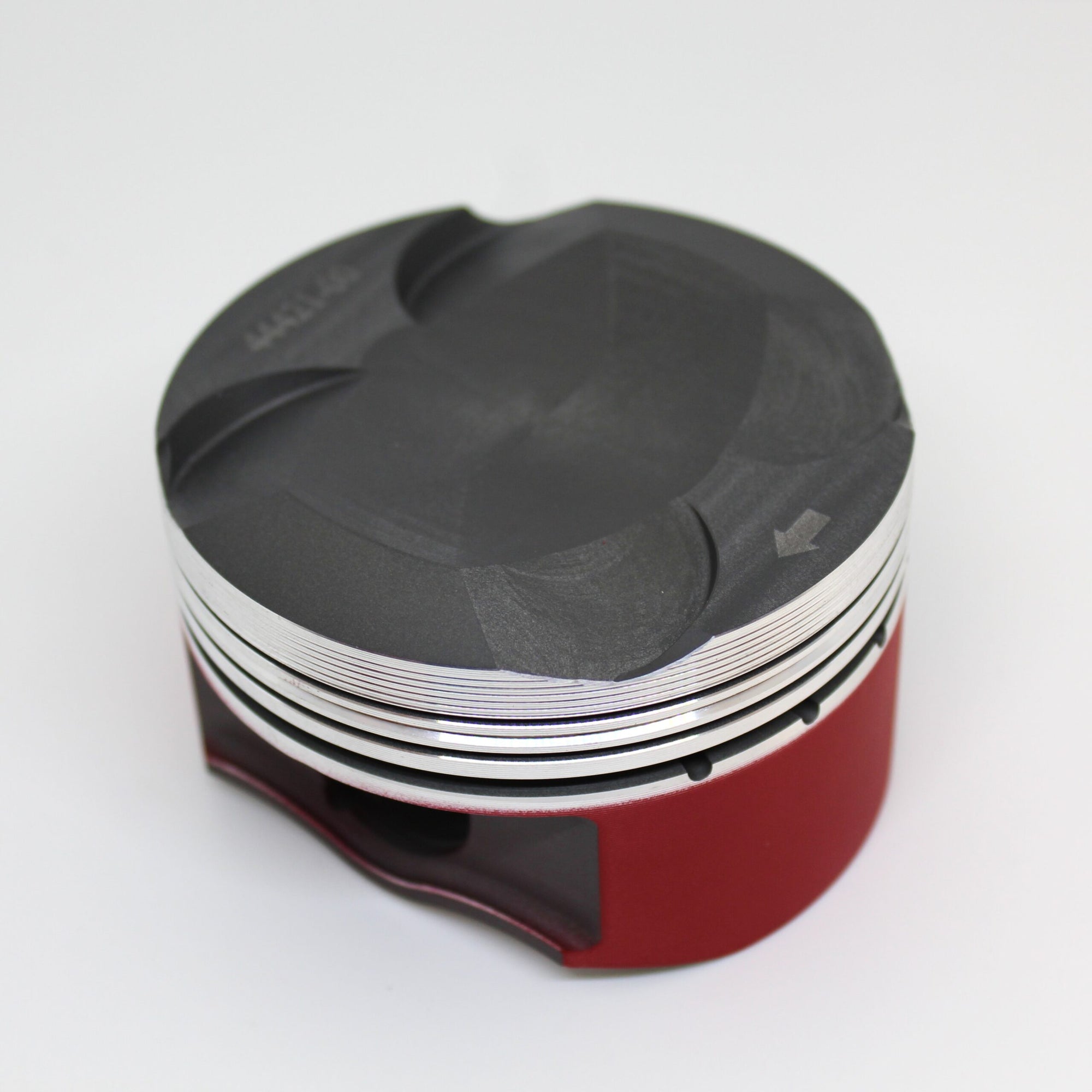

Yaris GR Turbo Race Comp Forged Piston Kit Hard Anodised.
Manufacturer kit reference: K9555
| Engine Code | G16E Turbo |
|---|---|
| YOM From | 2020 |
| Bore Size | 87.5mm – K9555DA |
| Stroke | 89.7mm |
| Compression Height | 33.9mm |
| OEM Comp Ratio | 10.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW24 |
| Pin Size | 24mm |
| Pin Part Number | WP153DLC |
| Cylinders | 3 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9555DA | 87.43mm |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
