£849.43

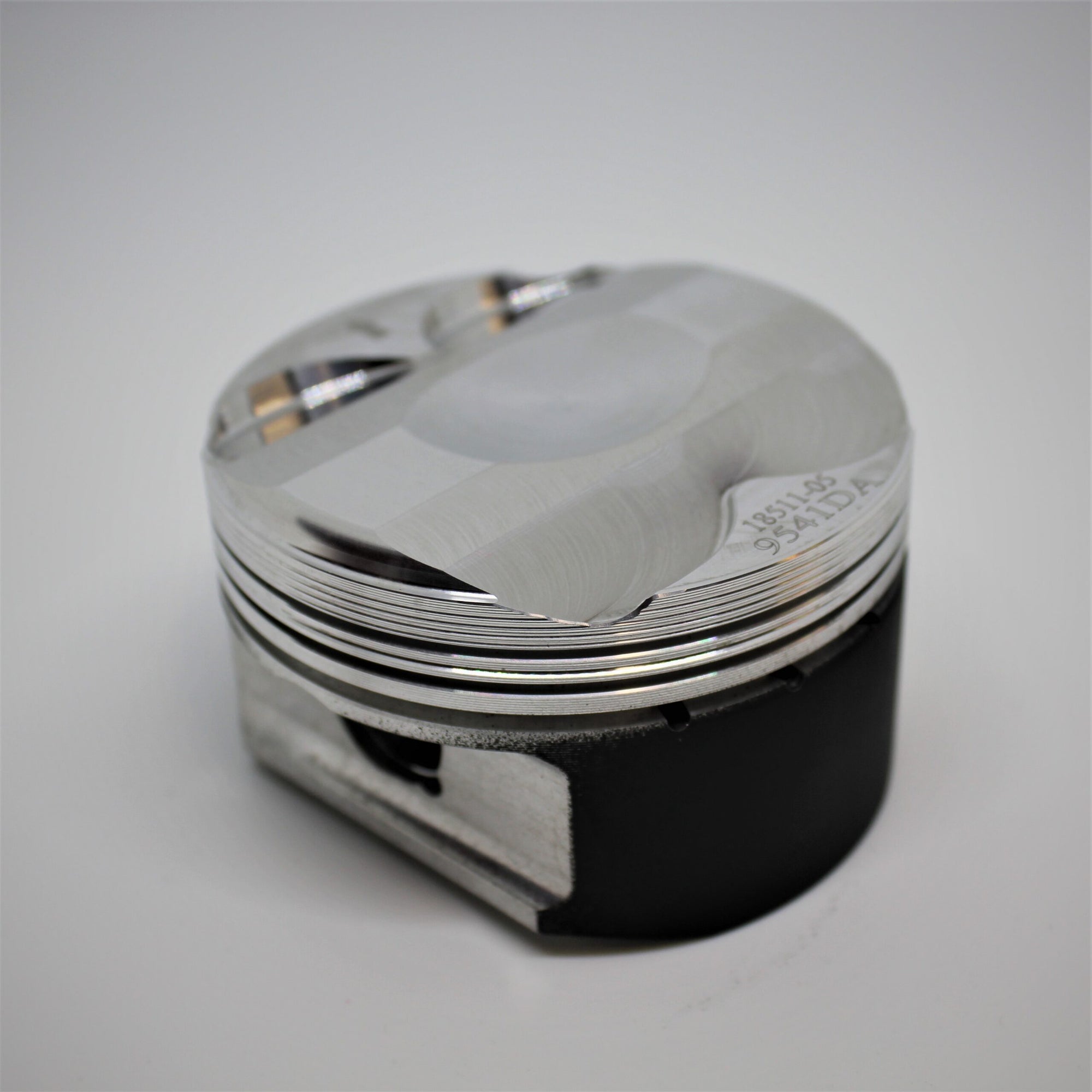

Zetec-S 1.6 16v ‘Sigma’ High Comp Forged Piston Kit.
Manufacturer kit reference: K9541
| Engine Code | FYDA |
|---|---|
| YOM From | 1998 |
| YOM To | 2001 |
| Bore Size | 79.5mm – K9541D050 , 79mm – K9541DA |
| Stroke | 81.4mm |
| Compression Height | 25.5mm |
| OEM Comp Ratio | 11:01 |
| Number of Rings | 3 |
| OEM Rod Length | 136.18mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP031 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0110 |
| Con Rod Length C/C | 136.18mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9541D050 | 79.5mm | 12.0:1 | 1616cc |
| K9541DA | 79mm | 12.0:1 | 1595cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
