£1,401.83

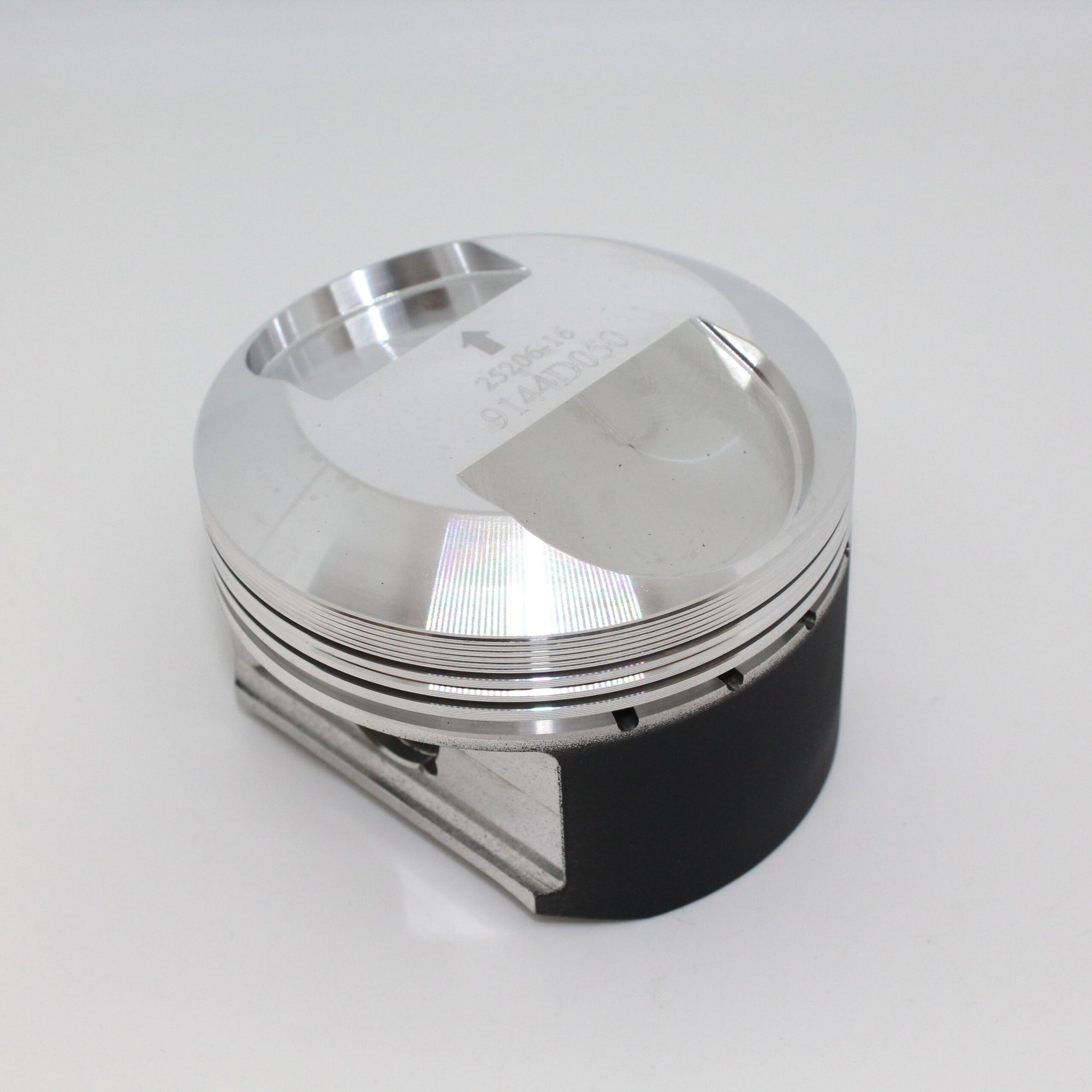

Wössner 75 & 164 3.0 V6 12v High Comp Forged Piston Kit.
Kit reference: K9144
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | AR 06412 |
|---|---|
| Model years from | 1987 |
| Model years to | 1992 |
| Bore Size | 93.5mm , 93mm , 94mm |
| Stroke | 72.6mm |
| Compression Height | 33mm |
| Number of Rings | 3 |
| Piston pin diameter | 22mm |
| Number of cylinders | 6 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9144DA | 92.93mm | 11.5:1 |
| K9144D050 | 93.43mm | 11.61:1 |
| K9144D100 | 93.93mm | 11.73:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
