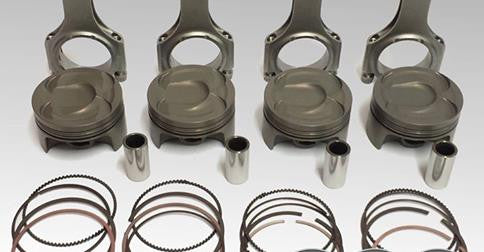

Focus MK3 ST 2.0 Ecoboost PEC rods and supertech pistons


Part Number H0270
Engine Type

Ford 2.0 EcoBoost Turbo

OE Bore Size 87.50mm
Bore Sizes Available


Stroke 83.1mm
Dome/Bowl Volume 6.83cc
Pec Comp. Ratio 9.3:1
OE Comp. Ratio 9.3:1
Comp. Height


Valves Per Cylinder 4
Cylinders 4
Rod Configuration H-Beam - G0225
Con Rod Length C/C 155.75mm
Small End Diameter 23.00mm
Small End Width 21.00mm
Big End Diameter 55.00mm
Big End Width 22.00mm

PEC rods are designed to withstand roughly 225hp per cylinder (typically 900hp on most 4cyl engines) and on the ARP 2000 series 3/8 bolts normally provided & have an 8,500 RPM safe operating limit (engine specific).

In some cases, we reccomend using the ARP custom age bolts available from us. This increases the hp threshold to 250hp per cylinder and raises the RPM limit to 9,000 however as every engine is different, these numbers are not guaranteed for every configuration
