£849.43

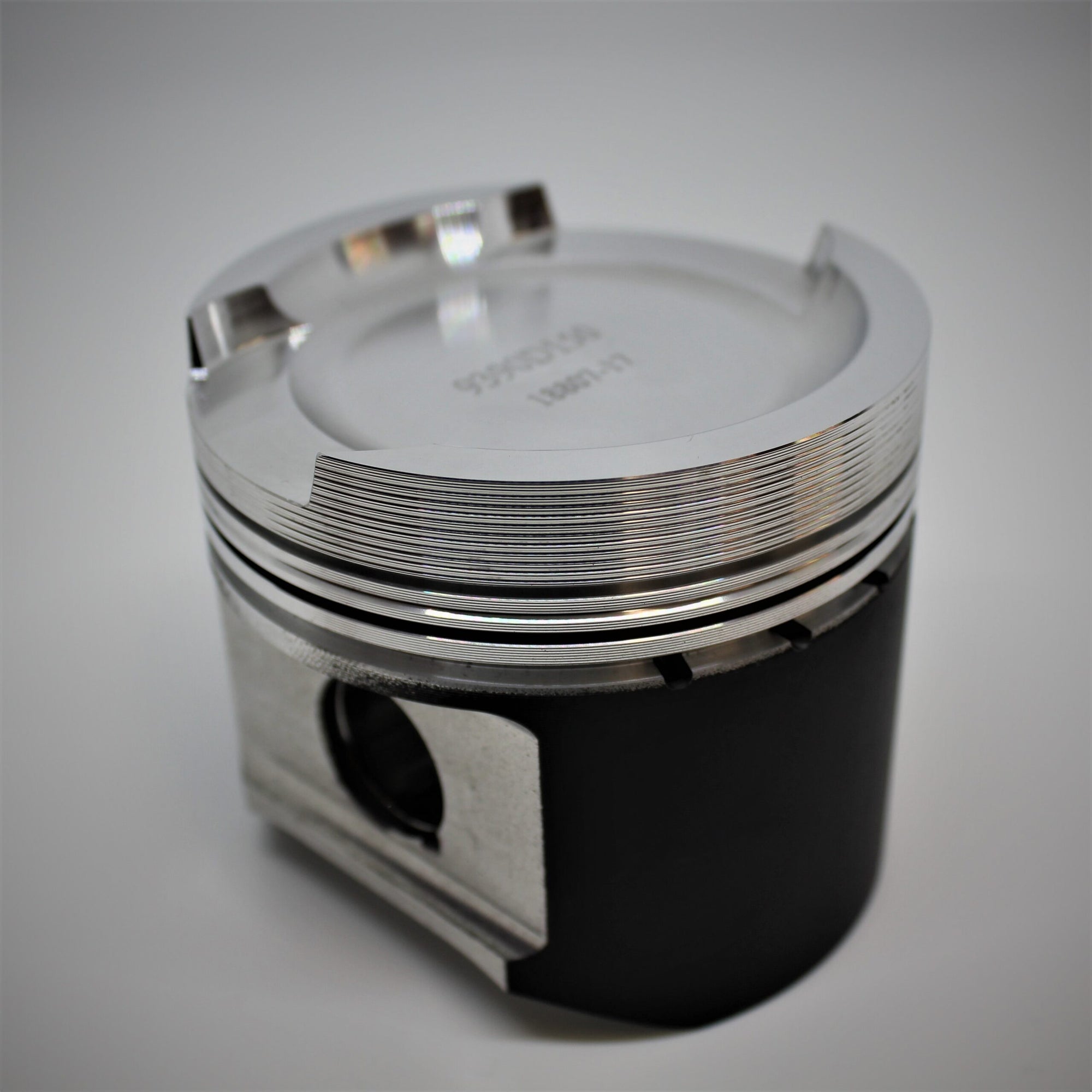

Wössner X-Flow 1.6 8v High Comp Forged Piston Kit.
Kit reference: K9390
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | L3A |
|---|---|
| Model years from | 1967 |
| Model years to | 1980 |
| Bore Size | 82.5mm – K9390D150 , 83.5mm – K9390D250 |
| Stroke | 77.6mm |
| Compression Height | 44.6mm |
| Number of Rings | 3 |
| Piston pin diameter | 20.6502mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9390D150 | 82.43mm | 11:1 |
| K9390D250 | 83.43mm | 11:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
